Ntawm Wifi

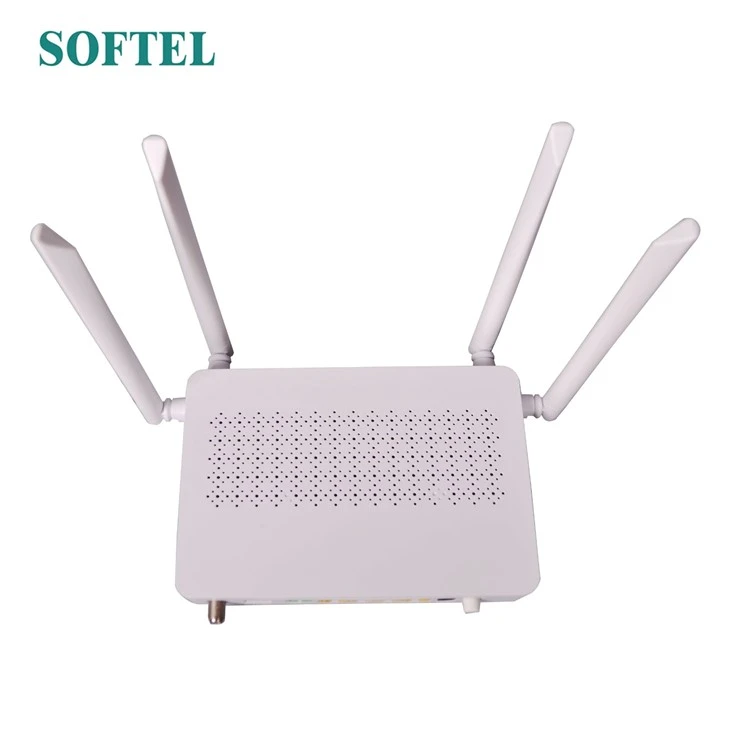

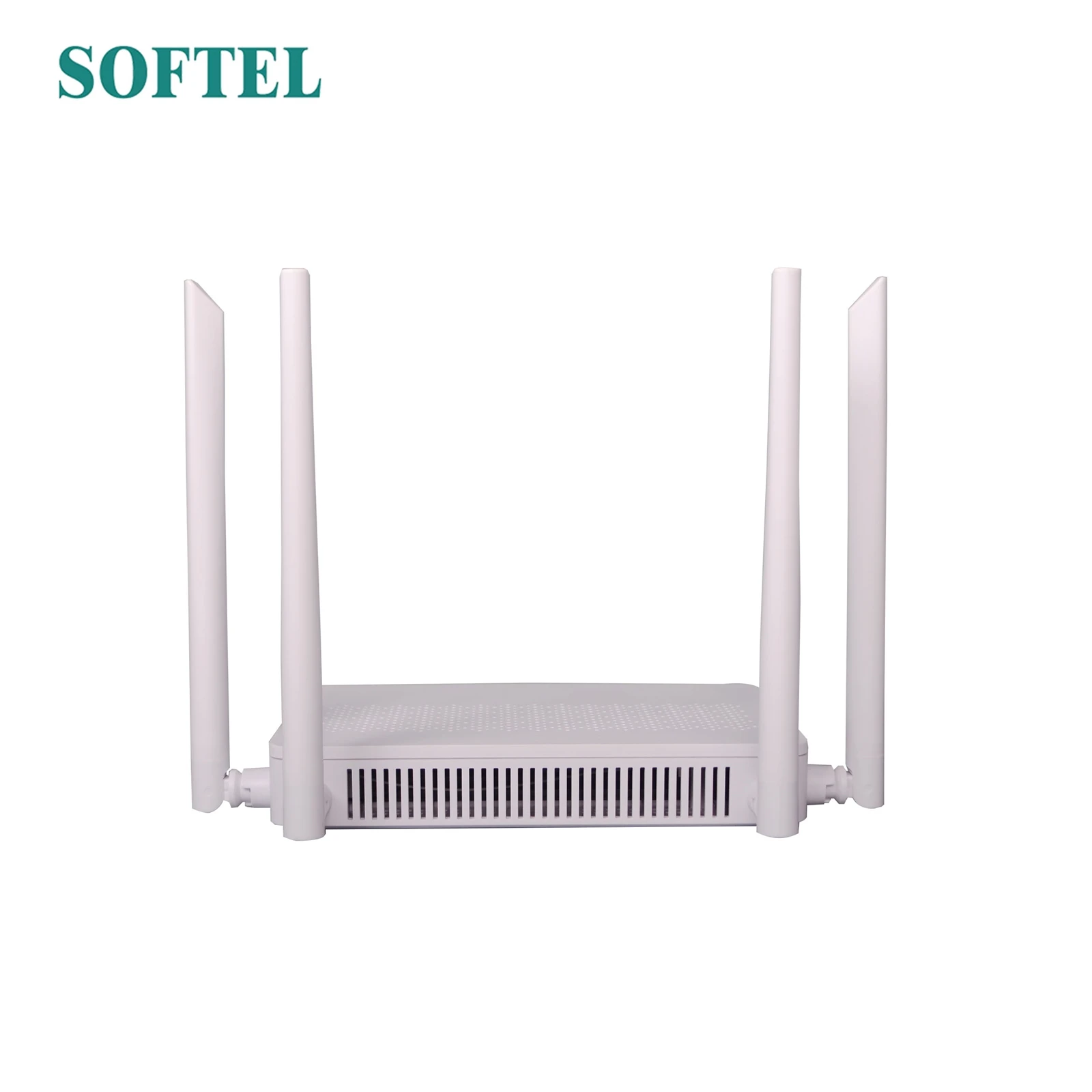

ONT-4GE-RFDW
ONT-4GE-RFDW tau tsim los rau kev taw qhia rau ntau qhov kev pabcuam kev sib koom ua ke network raws li cov khoom siv kho qhov muag network, uas yog rau XPON HGU davhlau ya nyob twg rau FTTH/O qhov xwm txheej.
Nws teeb tsa plaub qhov chaw nres nkoj 10/100/1000Mbps, WiFi (2.4G+5G) chaw nres nkoj thiab RF interface uas muab kev pabcuam siab -cov ntaub ntawv ceev thiab siab- cov kev pabcuam video zoo rau cov neeg siv.
Interface piav qhia
|
PON interface |
ClassB+ -27dBm receiver rhiab heev Wavelength: sab sauv 1310nm, downstream 1490nm Txhawb WBF Daim ntawv qhia yooj yim ntawm GEMPort thiab TCONT Authentication method: SN/password/LOID(GPON) Ob -txoj kev FEC (Forwarderrorcorrection) Txhawb DBA rau SRand NSR |
|
Ethernet chaw nres nkoj |
Stripping raws li VLAN Tag / Tag rau Ethernet chaw nres nkoj. 1:1VLAN/N:1VLAN/VLAN Pass-los ntawm QinQVLAN MACaddress txwv MACaddress kev kawm |
|
WLAN |
IEEE 802.11b/g/n 2 × 2 MIMO Kav hlau txais xov nce: 5dBi WMM(Wi{0}}Fi multimedia) Ntau SSID ntau WPS |
|
RF interface |
Txhawb tus qauv RF interfaces Txhawb hd cov ntaub ntawv streaming |
Lub Hoobkas duab
FAQ
1. Cov nqe lus them nqi uas koj txhawb yog dab tsi?
Feem ntau, peb txais T / T, PayPal, Western Union, thiab Alibaba Trade Assurance. Koj tuaj yeem xaiv cov nqe lus them nqi uas yooj yim dua rau koj.
2. Yuav ua li cas txog lub sijhawm ua haujlwm?
Feem ntau, yog tias muaj Tshuag, peb xa cov khoom tsis pub dhau 3 ~ 5 hnub ua haujlwm tom qab tso nyiaj tau lees paub. Yog tias nws tawm ntawm Tshuag, lub sijhawm ua haujlwm nyob ntawm.
3. Yuav ua li cas txog shipping?
Thaum lub pob me me, peb ib txwm xaiv FedEx, DHL, TNT, thiab UPS thiab lwm yam, thaum cov khoom muaj qhov hnyav thiab ntim, peb xav kom siv huab cua los yog hiav txwv xa khoom.
Hardware parameters
|
Dimension |
220mm x 150mm x 32mm (tsis muaj kav hlau txais xov) |
|
Qhov hnyav |
Kwv yees li 310 g |
|
Ua hauj lwm ib puag ncig kub |
0℃-+40 degree |
|
Ua hauj lwm ib puag ncig humidity |
5% RH -95% RH, tsis-condensing |
|
Fais fab adapter input theem |
90V-270V AC, 50/60Hz |
|
Cov khoom siv hluav taws xob |
11V-14V DC, 1 A |
|
Kev siv hluav taws xob zoo li qub |
7.5 W |
|
Kev siv hluav taws xob siab tshaj plaws |
18 W |
|
Interfaces |
1RF+4GE+Wi-Fi(2.4G+5G) |
|
qhov taw qhia teeb |
POWER / PON / LOS / LAN / WLAN / RF |
5G Parameters
|
Network txheem |
IEEE 802.11 ua |
|
Kav hlau txais xov |
2T2R, txhawb MU-MIMO |
|
Kev txhawb siab tshaj plaws |
20M: 173.3Mbps 40M: 400Mps 80M: 866.7Mbps |
|
Cov ntaub ntawv modulation hom |
BPSK QPSK 16QAM 64QAM 256QAM |
|
Cov zis siab tshaj plaws |
Tsawg dua lossis sib npaug li 20dBm |
|
Hom channel (customizable) |
36,40,44,48,52,56,60,64,100,104, 108,112,116,120 ,124,128,132,136, 140,144,149,153,157,161,165 |
|
Hom encryption |
WPA, WPA2, WPA/WPA2, WEP, Tsis muaj |
|
Hom encryption |
AES, TSI |
Cim npe nrov: onu wifi, Suav teb, manufacturers, lwm tus neeg, Hoobkas, lag luam wholesale
