xpon wifi onu router(ONT-2GE-V-DW-MESH) yog tsim los ua kom tiav FTTH thiab triple play service thov ntawm cov neeg ua haujlwm ruaj khov. .

Xa kev nug

Ces

Khoom Taw qhia

Yog xav paub ntxiv txog peb cov khoom lossis pricelist, thov hu rau peb: Helena Chen

Email: softel12@softel-optic.com Whatsapp: https://wa.me/8618457980817

Qhuav Taw Qhia

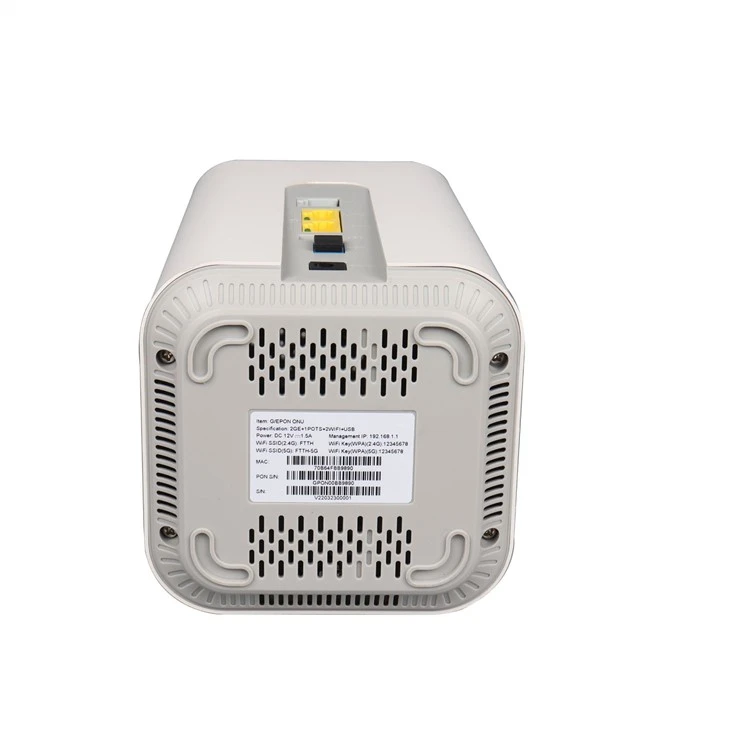

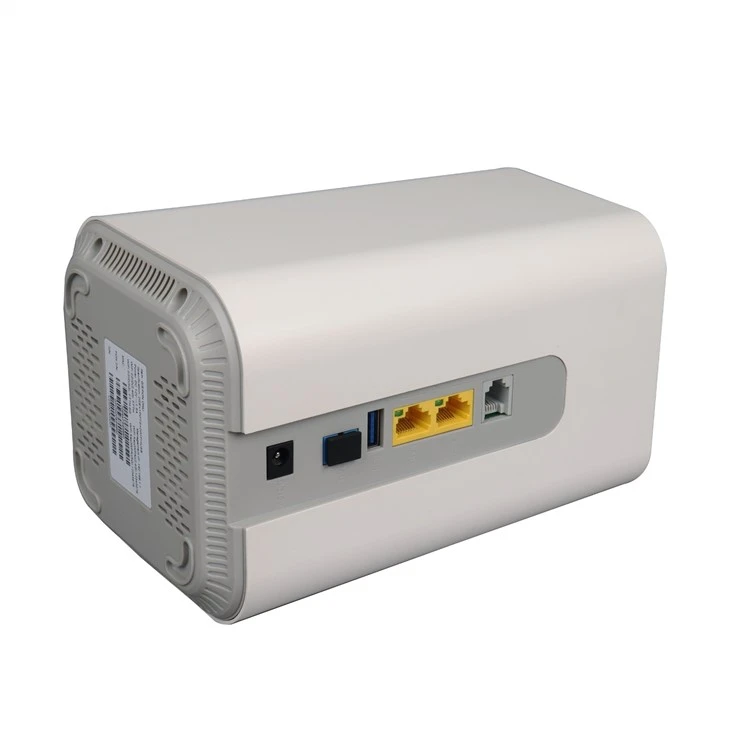

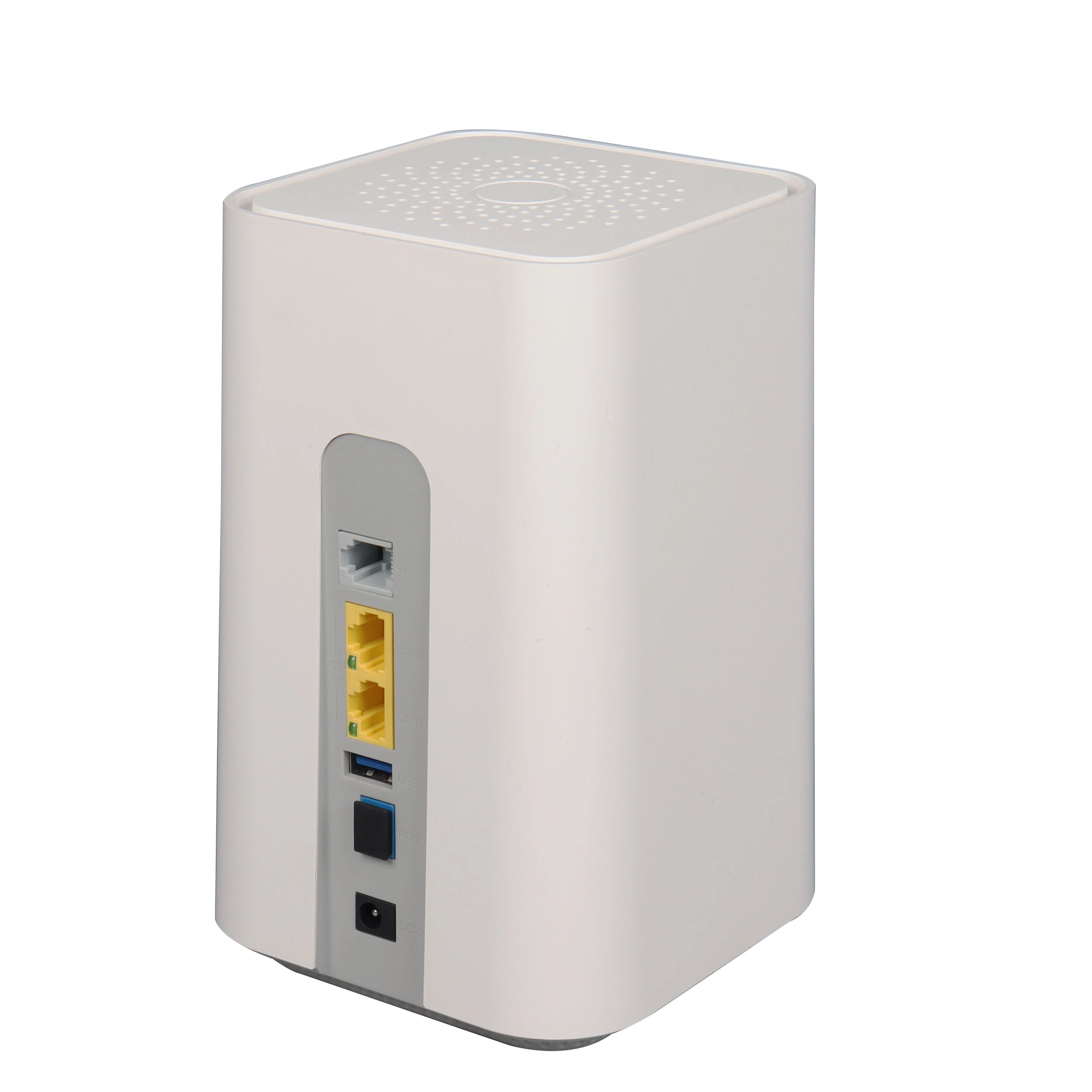

xpon wifi onu router

Xpon wifi onu router (2GE ntxiv rau 1POTS ntxiv rau WiFi GPON / EPON HGU WiFi Mesh)cov khoom siv davhlau ya nyob twg yog tsim los ua kom tiav FTTH thiab triple play service thov ntawm cov neeg ua haujlwm ruaj khov.

ONT-2GE-V-DW-MESHTxhawb Wi-Fi CERTIFIED EasyMesh™ uas coj cov qauv raws li txoj hauv kev rau Wi-Fi tes hauj lwm uas siv ntau lub ntsiab lus nkag (APs), sib txuas cov txiaj ntsig ntawm kev siv yooj yim, hloov kho tus kheej Wi-Fi nrog kev hloov pauv ntau dua hauv kev xaiv khoom siv uas tuaj. nrog kev sib cuam tshuam Wi-Fi CERTIFIED ™ khoom siv.

Daim ntawv thov-ONT-2GE-V-DW-MESH

Application Chart

Technical parameters

Yam khoom	ONT-2GE-V-DW-MESH(2 * GE ntxiv rau 1 * POTS ntxiv rau WiFi)
PON interface	1 G / EPON chaw nres nkoj (EPON PX20 ntxiv thiab GPON Class B ntxiv) Tau txais rhiab heev:Tsawg dua los yog sib npaug-28dBm Transmitting optical zog: 0-ua 4dBm Transmission nrug: 20KM
Lub wavelength	Tx 1310nm, Rx 1490nm
Optical interface	SC / UPC connector
LAN interface	2 * 10/100/1000Mbps auto yoog raws Ethernet interfaces, Tag nrho / Ib nrab, RJ 45 txuas
USB interface	USB 3.0, kis tus nqi: 4.8Gbps
POTS interface	1 x RJ11 connectors G.711A/G.711U/G.723/G.729 Codec, T.30/T.38/G.711 Fax hom, DTMF Relay
WiFi interface	Ua raws li IEEE 802.11b/g/n/ac 2.4GHz Kev khiav hauj lwm zaus: 2.400-2.483GHz (WiFi 4) 5.0GHz Kev khiav hauj lwm zaus: 5.150-5.825GHz (WiFi 5 yoj 2) WiFi: 4 * 4 MIMO,, 5dBi kav hlau txais xov, tus nqi mus txog 1.167Gbps, Ntau SSID TX hwj chim: 11n--22dBm/11ac--24dBm
LED	5, Rau cov xwm txheej ntawm PON / LOS, WiFi, TEL, LAN1, LAN2
Kev ua haujlwm ib puag ncig	Kub: 0degree -ua plus 50degree Humidity: 10 feem pua-90 feem pua（tsis-condensing）
Khaws ib puag ncig	Kub: -30degree -ua plus60degree Humidity: 10 feem pua-90 feem pua（tsis-condensing）
Fais fab mov	DC 12V / 1.5A, 12W
Dimension	115mm × 115mm × 180m (L × W × H)
Net nyhav	625g
