2GE CATV Dual Band WiFi 2.4G / 5G XPON ONU
2GE CATV Dual Band WiFi 2.4G / 5G XPON ONU
ONT-2GE-RFDW teeb tsa ob lub 10/100/1000Mbps chaw nres nkoj, WiFi (2.4G ntxiv rau 5G) chaw nres nkoj, thiab RF interface uas muab cov ntaub ntawv ceev ceev thiab cov kev pabcuam video zoo rau cov neeg siv.

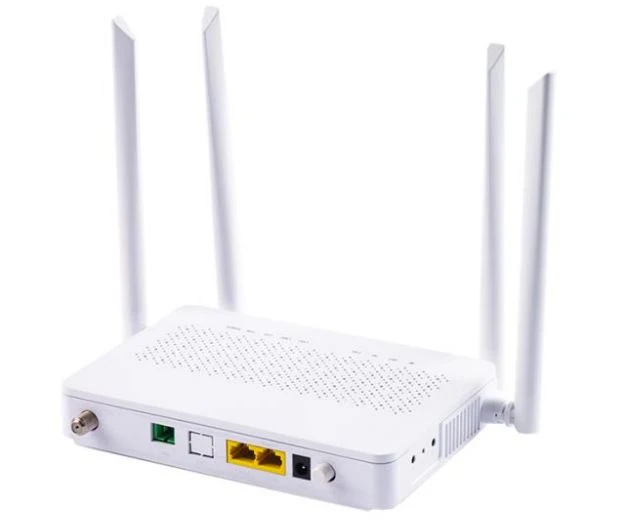

Daim duab ntawm 1GE 1FE CATV Wifi Dual-mode ONU
Nta
Ua raws li IEEE 802.3ah (EPON) & ITU-T G.984.x (GPON) tus qauv
Ua raws li IEEE802.11b/g/n/ac 2.4G & 5G WIFI tus qauv
Txhawb IPV4 & IPV6 Kev Tswj thiab kev sib kis
Txhawb TR-069 tej thaj chaw deb configuration thiab txij nkawm
Txhawb Txheej 3 rooj vag nrog kho vajtse NAT
Txhawb Ntau WAN nrog Txoj Kev / Choj hom
Txhawb Txheej 2 802.1Q VLAN, 802.1P QoS, ACL thiab lwm yam
Txhawb IGMP V2 thiab MLD npe / snooping
Txhawb DDSN, ALG, DMZ, Firewall thiab UPNP kev pabcuam
Txhawb CATV interface rau kev pabcuam video
Txhawb ob-directional FEC
Qhov tseem ceeb
Txhawb docking compatibility nrog OLT ntawm ntau lub tuam txhab
Kev them nyiaj yug tau hloov mus rau EPON lossis GPON hom siv los ntawm cov phooj ywg OLT
Txhawb 2.4 thiab 5G Hz dual band WIFI
Txhawb ntau WIFI SSID
Txhawb nqa EasyMesh WIFI muaj nuj nqi
Txhawb WIFI WPS muaj nuj nqi
Txhawb ntau wan configuration
Txhawb WAN PPPoE / DHCP / Static IP / Choj hom
Txhawb CATV kev pabcuam video
Txhawb nqa ceev kis tau tus mob ntawm hardware NAT
Hardware Specifications
| interface | 1 * G / EPON ntxiv rau 2 * GE ntxiv rau 2.4G / 5.8G WLAN ntxiv rau 1 * RF |
| Fais fab adapter input | 100V-240V AC, 50Hz-60Hz |
| Fais fab mov | DC 12V / 1.5A |
| Qhov taw qhia lub teeb | POWER / PON / LOS / LAN1 / LAN2 / 2.4G / 5G / RF / OPT |
| Khawm | Hwj chim hloov khawm, Pib dua khawm, WLAN khawm, WPS khawm |
| Kev siv fais fab | <> |
| Ua haujlwm kub | -20 degree - ntxiv rau 50 degree |
| Ib puag ncig humidity | 5% ~ 95% (tsis-condensing) |
| Dimension | 180mm x 133mm x 28mm (L × W × H Tsis muaj kav hlau txais xov) |
| Net nyhav | 0.3Kg |
Wireless
| Hom interface | Sab nraud 4 * 2T2R Sab nrauv kav hlau txais xov |
| Kav hlau txais xov nce | 5dBi ib |
| Interface siab tshaj tus nqi | 2.4G WLAN: 300Mbps 5.8G WLAN: 866Mbps |
| Interface ua haujlwm hom | 2.4G WLAN: 802.11 b/g/n 5.8G WLAN: 802.11 a/n/ac |
Pon interface
| Hom interface | SC/APC, CLASS B plus |
| Kev sib kis nrug | 0-20km |
| Ua haujlwm wavelength | nce 1310nm; nqes 1490nm; CATV 1550nm; |
| RX Optical zog rhiab heev | -27dBm |
| Tus nqi kis tau tus mob | GPON: nce 1.244Gbps; Down 2.488Gbps EPON: nce 1.244Gbps; Down 1.244Gbps |
CATV Interface
| Hom interface | 1 * ROV |
| Optical txais wavelength | 1 550nm |
| RF tso zis theem | 80±1.5dBuV ua |
| Input optical zog | ntxiv 2 ~ -15dBm |
| AGC ntau | 0~{1}}dBm |
| Optical reflection poob | >14 |
| MER | >31@{1}}dBm |
Ethernet interface
| Hom interface | 2 * RJ45 |
| Interface parameters | 10/100/1000BASE-T |
Pob npe
ONU * 1 PC
Fais fab adapter * 1
PC Network cable * 1
PC Box * 1 PC
Ntim Loj
Loj: 27.5 * 25.8 * 5.7 cm, 0.53kg
Cov ntaub ntawv tuam txhab
FAQ
1. Cov nqe lus them nqi uas koj txhawb yog dab tsi?
Feem ntau, peb txais T / T, PayPal, Western Union, thiab Alibaba Trade Assurance. Koj tuaj yeem xaiv cov nqe lus them nqi uas yooj yim dua rau koj.
2. Yuav ua li cas txog lub sijhawm ua haujlwm?
Feem ntau, yog tias muaj Tshuag, peb xa cov khoom tsis pub dhau 3 ~ 5 hnub ua haujlwm tom qab tso nyiaj tau lees paub. Yog tias nws tawm ntawm Tshuag, lub sijhawm ua haujlwm nyob ntawm.
3. Yuav ua li cas txog shipping?
Thaum lub pob me me, peb ib txwm xaiv FedEx, DHL, TNT, thiab UPS thiab lwm yam, thaum cov khoom muaj qhov hnyav thiab ntim, peb xav kom siv huab cua los yog hiav txwv xa khoom.
4. Kuv tuaj yeem tso qhov kev txiav txim li cas?
(1) Kev sib tham tau pom zoo raws li cov khoom lag luam thiab cov lus qhia tshwj xeeb.
(2) Daim ntawv them nqi Proforma yuav raug xa mus rau kev lees paub.
(3) Tom qab kev pom zoo ntawm proforma invoice, tus neeg siv khoom ua qhov tso nyiaj.
(4) Kev tsim khoom yuav pib sai li sai tau thaum cov nyiaj tau lees paub los ntawm peb lub txhab nyiaj.
(5) Tshaj tawm cov khoom hauv lub sijhawm xa khoom tau pom zoo.
5. Koj puas tuaj yeem ua OEM rau peb?
Yog lawm. Yog tias muaj qee qhov kev txiav txim kom muaj nuj nqis, peb tuaj yeem ua OEM suav nrog luam ntawv, logo, thiab cov qauv tsim rau koj.
6. Yuav ua li cas txog qhov Warranty?
Muaj 12 lub hlis rau lub warranty.
Thaum lub warranty tsis yog lub luag haujlwm rau cov uas tawg los ntawm kev ua phem los yog hloov kho nrog lwm hom.
