Optical Fiber Cauj Txuas
Optical Fiber Cauj Txuas

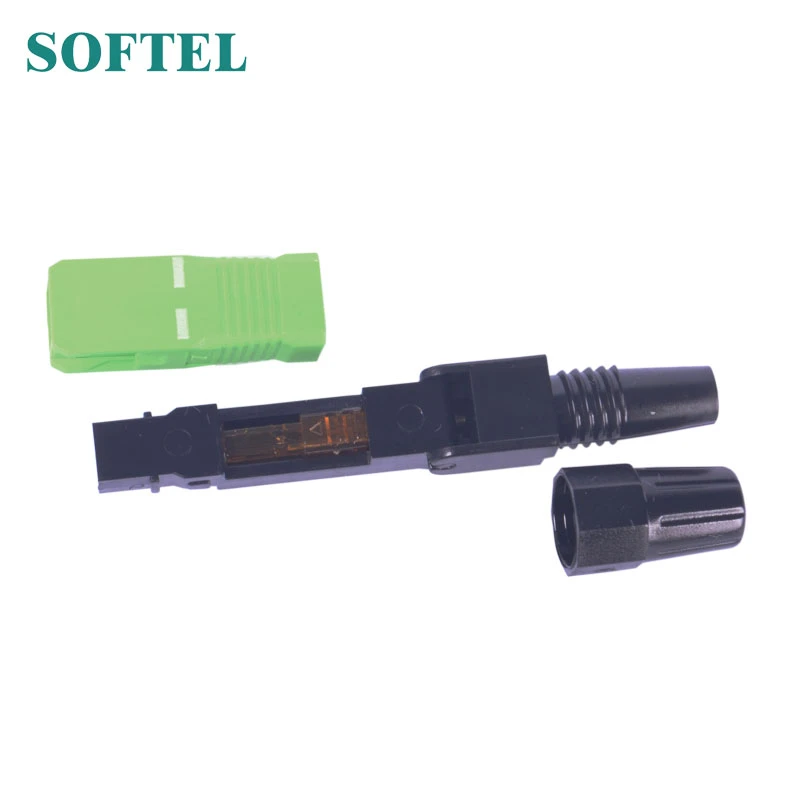

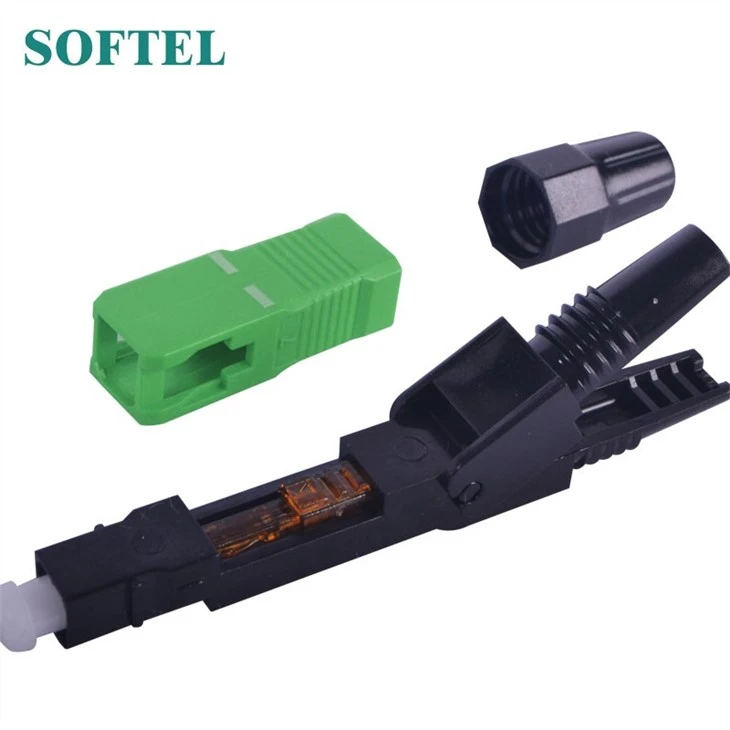

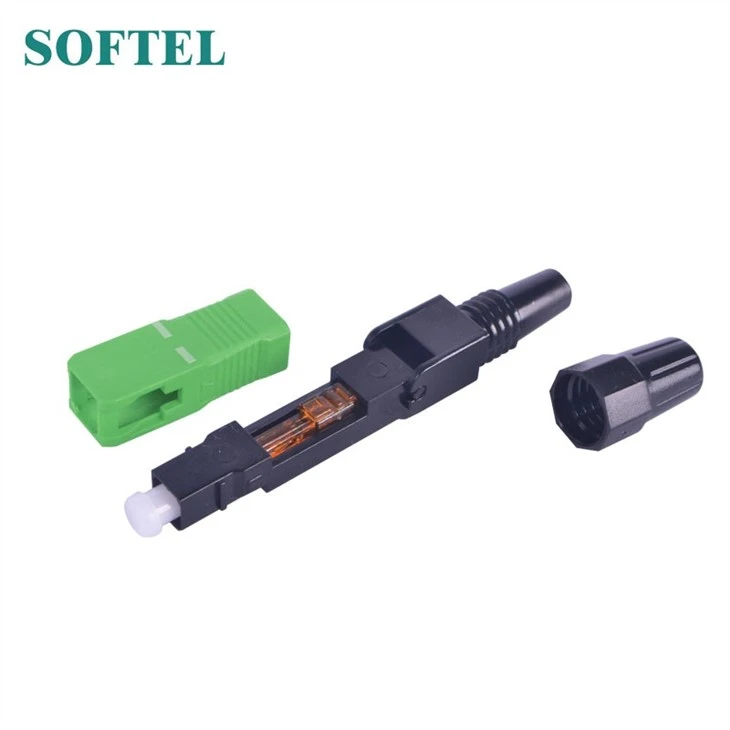

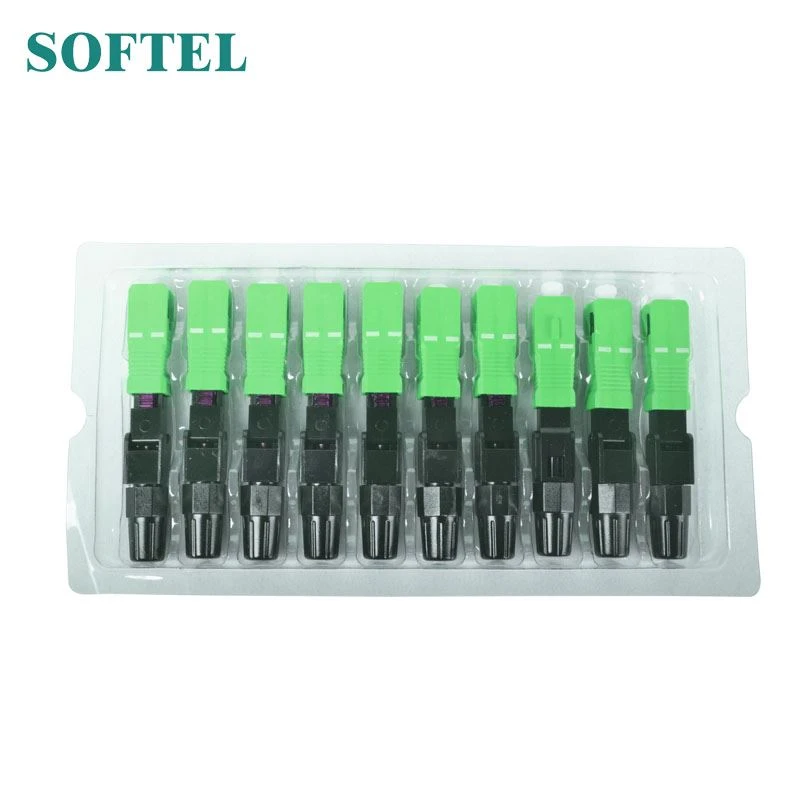

* Optical Fiber Fast Connector yog tsim los qhia qhov sib txuas tsis tau fusion splicing tshuab. Nws yog kev sib dhos ceev uas yuav tsum tau tsuas cov txheej txheem fiber ntau npaj xws li cable stripping tool thiab fiber ntau cleaver.
* Optical Fiber Fast Connector tuaj yeem siv rau tee cable thiab nyob sab hauv tsev cable. Lub tshuab txuas tuaj yeem siv ncaj qha rau hauv ONU, kuj nrog ceev lub zog ntau dua 5 kg, nws yog dav siv nyob rau hauv FTTH qhov project ntawm network tig.
Thov
FTTx, Cov Ntaub Ntawv Hloov Kev Hloov Chaw
Cov Lus Qhia Tshwj Xeeb
Yam khoom | Tsis |
fiber ntau Kev Mus | 0.9 hli nruj ntas yeej |
Loj: | 43,5 hli |
Lub taub fiber | 125μm (652& 657) |
Txheej Txheej | 250μm |
Hom | SM |
Lub sijhawm ua haujlwm | txog 60s (tsis suav fiber ntau presetting) |
Teeb Pom Kev Poob | 0.2dB (1310nm& 1550nm) |
Rov Qab Yuam Kev | ≤ -50dB |
Ua Tau Zoo Li Cas | GG gt; 98% |
Lub Sij Hawm Reusable | tsis txwv |
Tighten Zog ntawm Naked Fiber | GG gt; 5 N |
Lub zog Tensile | GG gt; 40 N |
Ntsig Kub | -40 ~ +85 C |
Kev Ntsuas Lub Zog Ntawm Kev Sib Tw (20 N) | IL ≤ 0.3dB |
Mechanical durability (500 zaus) | IL ≤ 0.3dB |
Kev Ntsuas Poob (4m pob hauv pem teb, ib zaug hauv kev taw qhia, peb zaug tag nrho) | IL ≤ 0.3dB |
