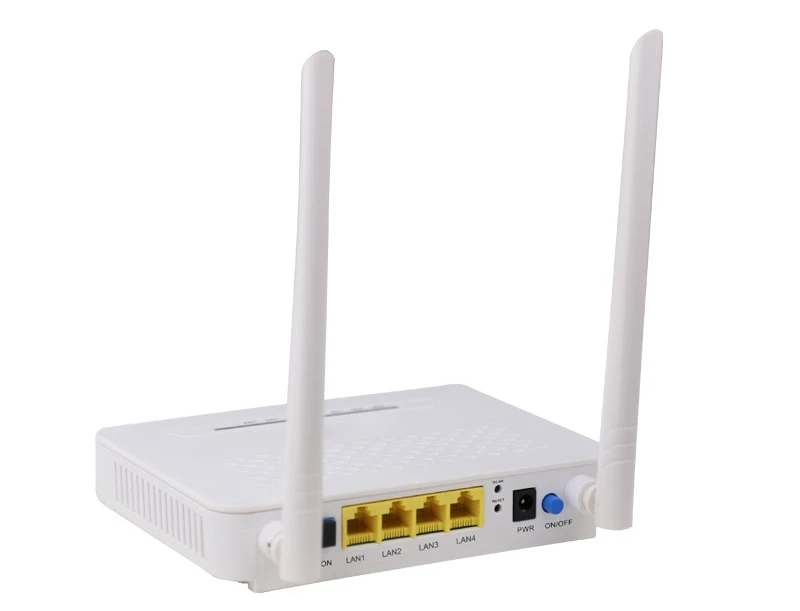

4GE EPON Wifi ONU

Nws txhawb 1Gbps kis tau tus nqi nce thiab nqis thiab muab cov neeg siv QOS zoo, hloov tau txoj kev siv bandwidth ntawm Ethernet kev pabcuam thiab kev pabcuam IP sib xyaw.

Xa kev nug

Khoom Taw qhia

ONU-4GE-W, 4GE EPON WIFI ONU, ua tau raws li IEE802.3ah thiab CTC3.0 tus qauv txheej txheem. Nws muaj cov neeg sab nraud zoo ua haujlwm nrog rau lwm tus neeg sab nraud OLT, Nws txhawb 1Gbps kis tus nqi nce thiab nqis thiab muab cov neeg siv QOS zoo, kev hloov pauv tau yooj yim ntawm Ethernet kev pabcuam thiab IP kev pabcuam.

Muaj nuj nqi

Txhawb chaw nres nkoj tus nqi txwv kev txwv thiab kev tswj bandwidth;

Ua tau raws li IEEE802.3ah Txuj Ci

Wi-Fi series ntsib 802.11 n / b / g cov qauv kev qhia

Txog 20KM kis nrug

Txhawb cov ntaub ntawv encryption, pab pawg tshaj tawm, chaw nres nkoj Vlan sib cais, thiab lwm yam.

Txhawb Dynamic Bandwidth Hloov (DBA)

Txhawb ONU nws pib-nrhiav / Txuas tshawb pom / cov chaw taws teeb hloov kho tshiab ntawm software;

Txhawb chaw nres nkoj hom ntawm VLAN kev teeb tsa

Txhawb lub zog tua lub tswb ua haujlwm, yooj yim rau cov teeb meem txuas tshawb pom

Txhawb kev tshaj tawm xov tooj cua daj cua dub ua haujlwm

Txhawb kev sib cais ntawm cov chaw nres nkoj sib txawv

Txhawb kev tswj chaw nres nkoj ntws

Txhawb ACL thiab SNMP los kho cov pob ntawv cov ntawv lim kom nruj

Kev tsim tshwj xeeb rau kev cais tawm kev tiv thaiv kab ke kom ruaj khov tswj kev ua haujlwm

Txhawb software hauv online kom nce qib

EMS kev tswj hwm network raws SNMP, yooj yim rau kev saib xyuas

Specification

Yam khoom	4GE EPON WIFI ONU
PON Kev Sib Tham	1 EPON kho qhov muag interface Ntsib 1000BASE-PX20 + tus qauv Ntsig 1.25Gbps ntws los / downstream SC ib hom fiber ntau phua piv: 1:64 Kev sib kis tau deb 20KM
Tus Neeg Siv Ethernet Sib cuam tshuam	4 * 10/100 / 1000M pib sib ceg Tag nrho / ib nrab ntawm cov hom duplex RJ45 txuas Auto MDI / MDI-X 100m deb
Lub zog cuam tshuam	12V DC fais fab mov Sab nraud 12V 0.5A AC / DC fais fab mov adapter
PON Tau kho qhov muag Tsis	Wavelength: Tx 1310nm, Rx1490nm Tx Optical Zog: 0 ～ 4dBm Rx Hnov: -27dBm Saturation Kho Kom Zoo Nkauj: -3dBm Connector Hom: SC Optical Fiber: 9 / 125ɥm ib hom fiber ntau
Cov ntaub ntawv xa xov Tsis	PON Kev Nkag Siab: Downstream 950Mbps; Kev nce toj 930Mbps Ethernet: 100Mbps lossis 1000Mbps Cov Ntawv Poob Nrog: <1 *=""> latency: <>
Kev lag luam Muaj peev xwm	Txheej 2 cov xov hlau nrawm hloov Txhawb VLAN TAG / UNTAG ， VLAN hloov dua siab tshiab Txhawb Chaw nres nkoj-ceev kev txwv Txhawb kev faib ua ntej Txhawb kev tswj cua daj cua dub ntawm kev tshaj tawm Txhawb lub voj nrhiav kom tau
Kev Sib Txuas Lus Tswj	Kev them nyiaj yug IEEE802.3 QAM, ONU tuaj yeem tswj tau los ntawm OLT Txhawb cov chaw taws teeb tswj los ntawm SNMP thiab Telnet Kev tswj hwm hauv zos
Tswj Muaj nuj nqi	Cov xwm txheej saib, Kev teeb tsa kev tswj hwm, Kev tswj tswb, Kev tswj hwm kev tswj hwm
Plhaub	Yas casing
Lub Zog	4GE + WIFI: <7w, 12v="" 1a="" fais="" fab="" mov="">
Lub cev Cov Lus Qhia Tshwj Xeeb	Yam Khoom Loj: 160mm (L) x 120mm (W) x 32.5mm (H) Khoom hnyav: 0.2kg
Ib puag ncig Cov Lus Qhia Tshwj Xeeb	Kev ua haujlwm kub: 0 txog 50ºC Cia qhov kub thiab txias: -40 txog 85ºC Kev khiav hauj lwm vaum: 10% txog 90% (Tsis xeb) Cia cov av noo: 10% txog 90% (Tsis-hws)

Cov ntaub ntawv xaj

Khoom Npe	Cov Qauv Khoom	Cov lus piav qhia
4GE EPON WIFI ONU	ONU-4GE-W	4 * 10/100 / 1000M Ethernet interface, txhawb Wi-nkaus muaj nuj nqi, 1 EPON interface, hnab yas, sab nraud fais fab mov adapter
