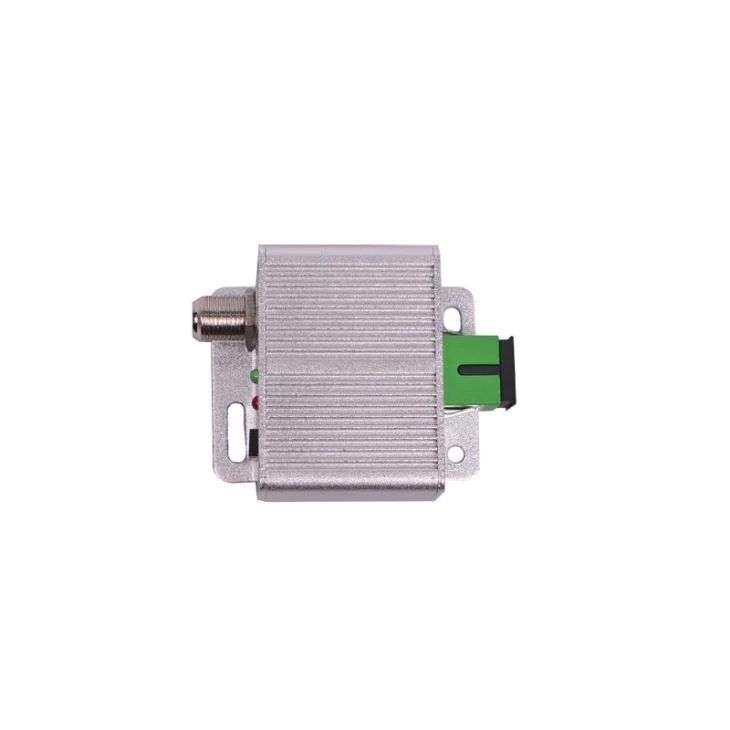

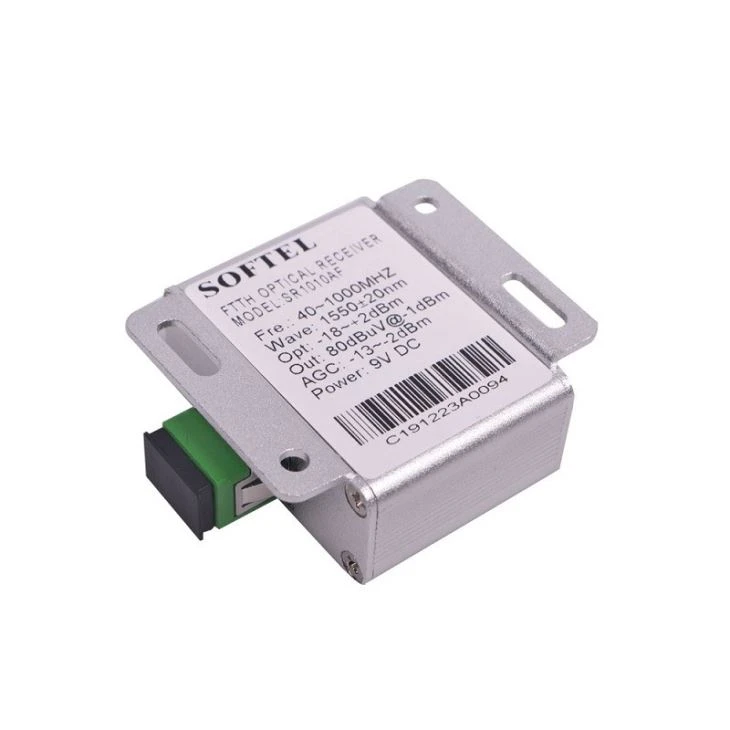

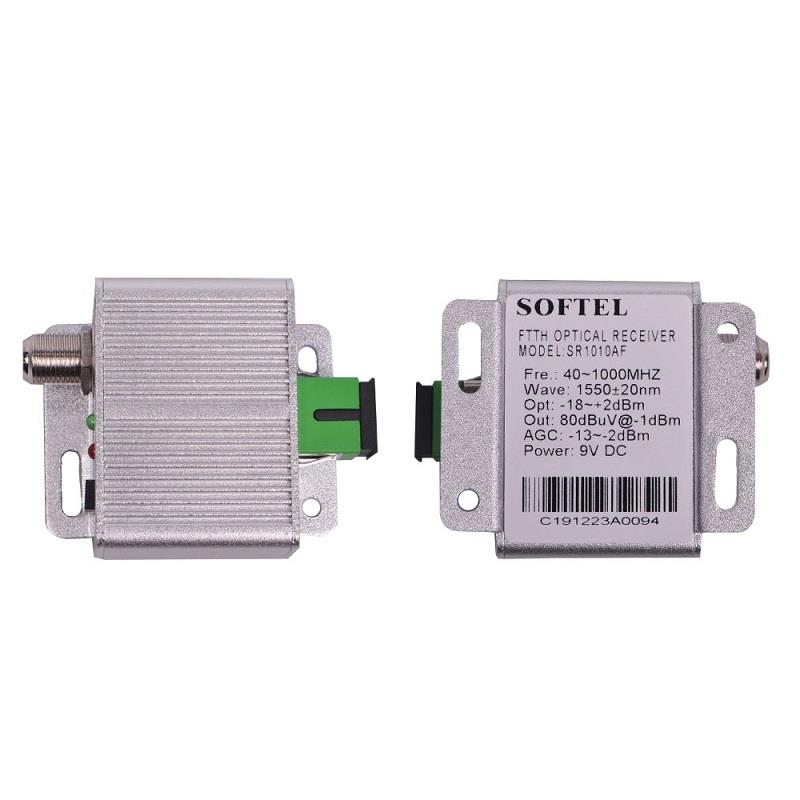

Ftth Mini Optical Node
Ftth Mini Optical Node
Withindustrial 8-tswj chav ntsuas thiab yooj yim interface, Ftth Mini Optical NodeSR1010AFis yog qhov kev xaiv zoo rau cov neeg siv khoom davhlau ya nyob twg.
Cov yam ntxwv:
Analog TV& Digital TV FTTX OE converter kev thov.
High linearity, qis distortion thiab dav optic zog AGC ntau yam (-13dBm rau -2dBm).
Kev khiav hauj lwm dav dav kho qhov muag ntau ntawm 2 txog -20dBm ntawm 1550nm.
Tawm tswv yim fais fab tuag -2 rau 1dBm rau qhov tso zis RF.
Cov tswv yim kho qhov muag:-13 txog -2dBm; Kev tsim tawm RF: +80dBuV ib channel ntawm 3.5% OMI (22dBmV tes taws los piav).
Kev hloov pauv tag nrho yog 40-1002MHz nrog CATV
Me ntim hloov tau yooj yim thiab Kev muab hluav taws xob rau ntawm txoj kab.
Cov lus qhia tshwj xeeb ntawm Ftth Mini Optical Node:
| Tus lej Khoom | Chav Nyob | Kev piav qhia | Cov lus ceeb toom |
| Cov Neeg Siv Khoom Sib Tham | |||
| RF Txuas | 75Ω" F" txuas | United txuj | |
| Optical Input Connector | SC / APC | ||
| DC Khoom Siv | DC Adapter | ||
| Optical Input Power | dBm | -20 ~ +2 | |
| Optical Xa Poob | dB | 15 (Min), 45 (Hom) | |
| Kev Ua Haujlwm Wavelength (Rx) | nm | 1550 | |
| Kev teb rov qab | A/W | GG gt; 0.9 | |
| Teeb Pom Kev Poob | dB | 0.4 (Hom), 0.6 (Max) | |
| Muab cais nyob ib leeg | dB | 35 (Min) | |
| Hom Fiber Optical | SM 9 / 125um SM Fiber | ||
| Zaus Muaj Ntau Yam | MHz | 40 ~1002 | |
| Qhab Flatness | dB | GG lt; ± 1 | |
| Cov theem tso zis (@AGC) | dBuV | 80 | Customizable Max tso zis rau 104dBuV |
| Ntau Optical AGC khwv | dBm | -13 ~ -2 | |
| RF Yuav Tau Ntau Yam | dB | 22 | |
| Tsim Tawm Tsis Raug | Ohms | 75 | |
| CATV Tsim Tawm Freq. Teb | MHz | 40 ~1002 | Xeem hauv Cov Lus Teeb Npe |
| C/N | dB | 42 | -10dBm inpput, 96NTSC, OMI+3.5% |
| Lub CSO | dBc | 57 | |
| CTB | dBc | 57 | |
| CATV Tsim Tawm Freq. Teb | MHz | 40 ~1002 | Kuaj hauv Digital Signal |
| MET | dB | 38 | -10dBm inpput, 96NTSC |
| MET | dB | 34 | -15dBm inpput, 96NTSC |
| MET | dB | 28 | -20dBm inpput, 96NTSC |
| Lub hwj chim tawm tswv yim Voltage | VDC | 5V | |
| Kev Siv Hluav Taws Xob | W | GG lt; 2 | |
| Qhov ntev | hli | 57*45*19 | |
| Lub cev hnyav | KG | 0.119 | |
Cov FAQ
1. Cov nqe lus them nqi dab tsi?
Feem ntau, peb lees txais T / T, PayPal, Western Union, thiab Alibaba Kev Lag Luam Kev Lag Luam. Koj tuaj yeem xaiv cov nqe lus them nqi uas yog qhov yooj yim tshaj plaws rau koj.
2.Kuv tuaj yeem tso xaj li cas?
(1) Kev sib tham yuav tsum pom zoo raws li tus nqi thiab cov khoom tshwj xeeb.
(2) Tom qab ntawv cov ntawv pov thawj proforma yuav muab xa rau kev paub meej.
(3) Qhov tso nyiaj tuaj yeem ua tau raws li daim ntawv sau nqi proforma.
(4) Kev tsim khoom yuav pib sai sai thaum qhov kev them nyiaj tau pom zoo los ntawm peb lub txhab nyiaj.
(5) Cov khoom yuav raug xa tawm tsis pub dhau lub sijhawm lav paub. Thiab tseem yuav tau qhia txog tus lej.
3.Yog li cas txog kev xa khoom?
Thaum pob ntawv tseem me, peb nquag xaiv FedEx, DHL, TNT, UPS thiab lwm yam. Thaum rau cov khoom lag luam ntawm hnyav hnyav thiab loj ntim, huab cua lossis xa nkoj hiav txwv yuav raug pom zoo.
