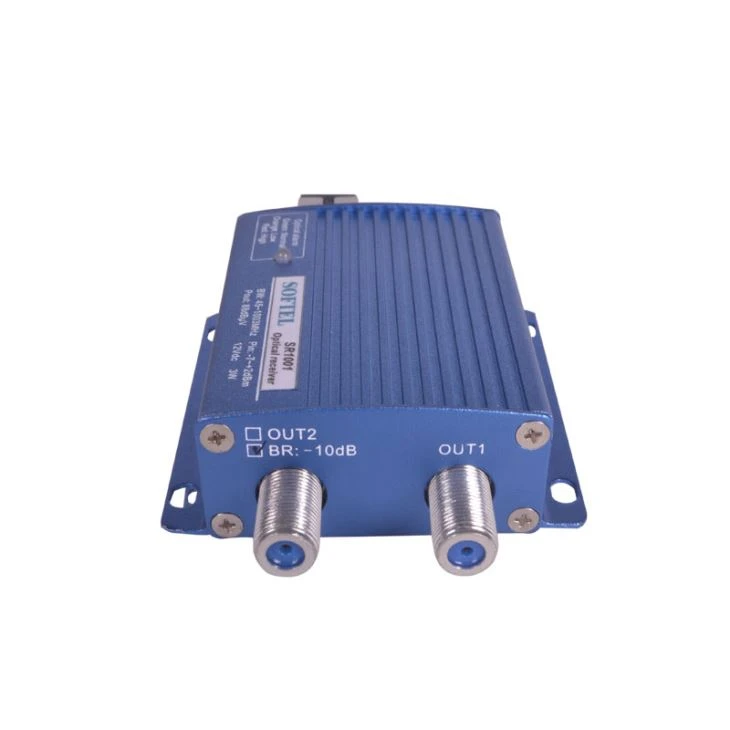

CATV Mini Optical Fiber Sib Tw

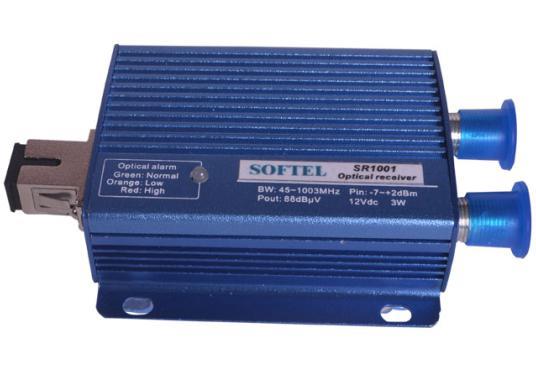

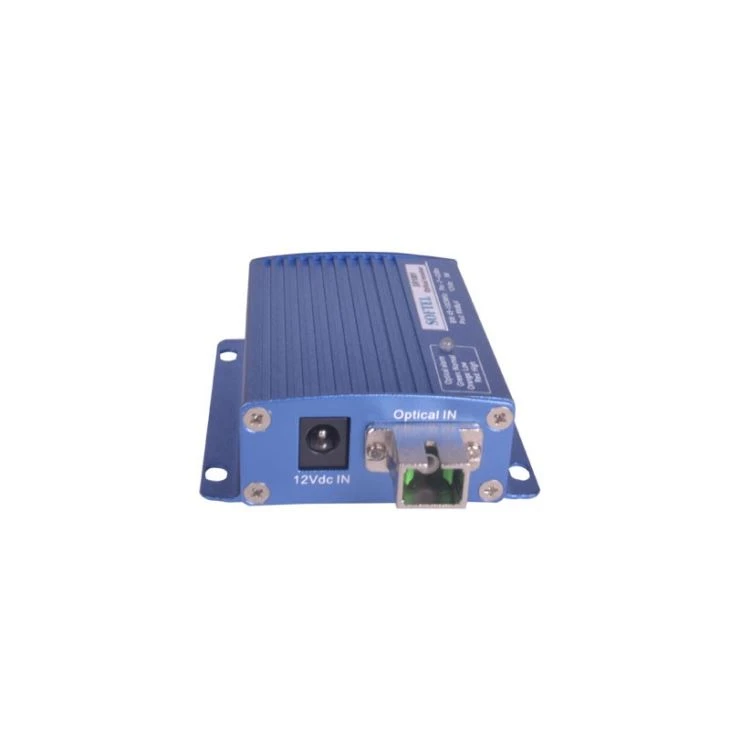

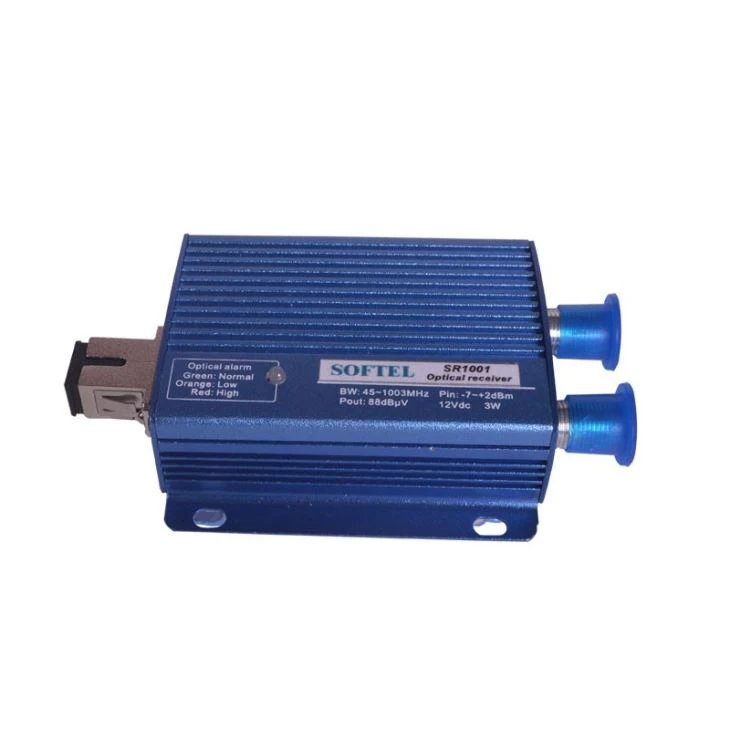

SR1001 CATV mini optical fiber node yog cov khoom tshwj xeeb uas peb tshwj xeeb tau tsim rau FTTH - Fiber rau Tsev Network qauv. Nrog lub plhaub me me, kev cog lus me me thiab tsim nyog sab hauv Circuit Court qauv thiab ntsuas kev ua haujlwm zoo. Nws yog thawj qhov kev xaiv rau thaj chaw nyob thiab hauv tsev fiber ntau optic network.
Cov yam ntxwv
Forward RF ceg tsim tawm, 75Ω impedance.
Txais GaAs amplifier ntaus ntawv.
12V DC voltage fais fab mov.
Kev loj me me thiab yooj yim rau kev txhim kho.
Tsis
Yam khoom | Chav Nyob | Kev tsis | |
Forward kho qhov tau txais ib feem | |||
Tsis muaj nuj nqi | |||
Tau Txais Lub Zog Kho Kom Zoo | dBm | -7 ~ +2 | |
Optical Xa Poob | dB | > 45 | |
Optical Txais Wavelength | nm | 1100 ~ 1600 | |
Hom kho qhov muag | SC / APC | ||
Hom Fiber | Ib Hom | ||
Txuas kev ua tau zoo | |||
C / N | dB | ≥ 51 | -1dBm kho qhov muag tau txais hluav taws xob |
C / CTB | dB | 65 | |
C / CSO | dB | 62 | |
RF Tsis | |||
Zaus Muaj Ntau Yam | MHz | 45 ~ 862/1003 | |
Flatness hauv Band | dB | 0.75 | |
Rated Tus Output Theem | dBμV | ≥ 88 | |
Cov Zis Tseem Yuav Rov Los Nrhiav | dB | ≥ 16 | |
Tsim Tawm Tsis Raug | Ω | 75 | |
Qhov Tau Txais | W | ＜ 3 | |
Kev khiav hauj lwm kub | ℃ | -20 —— + 55 | |
Qhov ntev | hli | 105 * 67 * 24 | |
