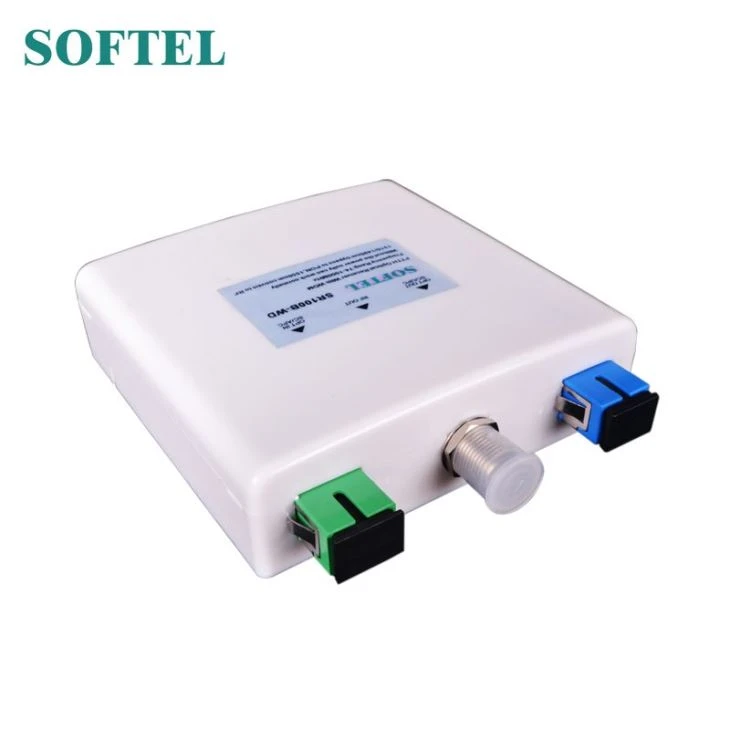

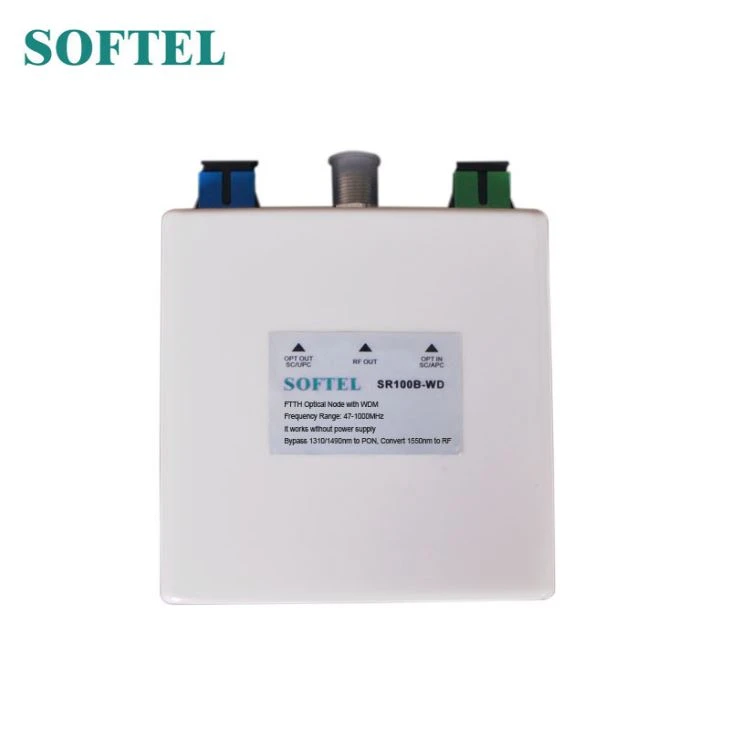

CATV Mini Optic Tau Txais
◆ Ua haujlwm bandwidth 47 ~ 1000MHz
OutputLevel≥62dBuV (Pin = -1dBm)
SR100B-WD, ua rau hauv WDM, yog tsim rau FTTH (Fiber To The Home) tes hauj lwm. Qhov no CATV mini optic txais yuav lub siab rhiab heev kho qhov muag txais hluav taws xob raj, tsis muaj fais fab mov, tsis siv fais fab.
Ntseg
Tsis muaj lub zog los tsis ua
◆ Ua haujlwm bandwidth 47 ~ 1000MHz
Tawm Tawm Qib ≥ 62dBuV (Pin = -1dBm)
Thov
AT CATV FTTH
◆ Kev sib koom ua ke ntawm peb lub network
T FTTH NPAJ
Cov Lus Qhia Tshwj Xeeb
Yam khoom | chav nyob | SR100B-WD |
Qhov txuas ntawm RF | F-poj niam | |
Cov tswv yim optical zog | dBm | -10 ～ 0 |
Txais yoj yoj | nm | 1550 |
Txo qhov yoj yoj | nm | 1310/1490 |
Khoom siv kho qhov muag | SC / APC, SC / UPC | |
Fiber ntau hom | Ib Hom | |
RF Zaus Ntau Yam | MHz | 47 ~ 1000 |
Output Level | dBμV | ≥62dBuV @ -1dBm |
Lub luag haujlwm | A / W | ≥0.9 |
Qhov ntev | hli | 85.5 * 100 * 24 |
