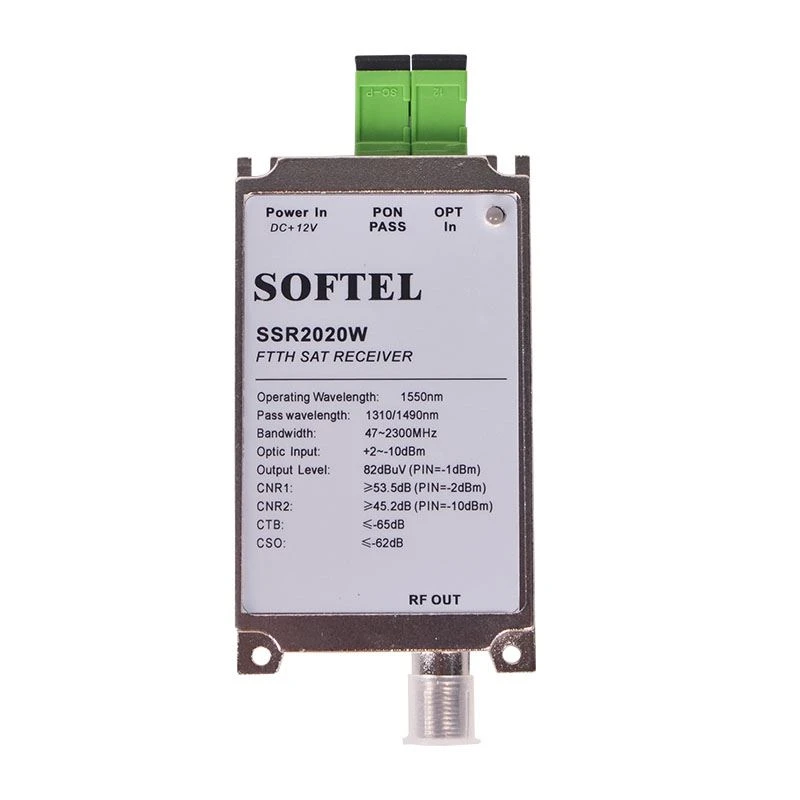

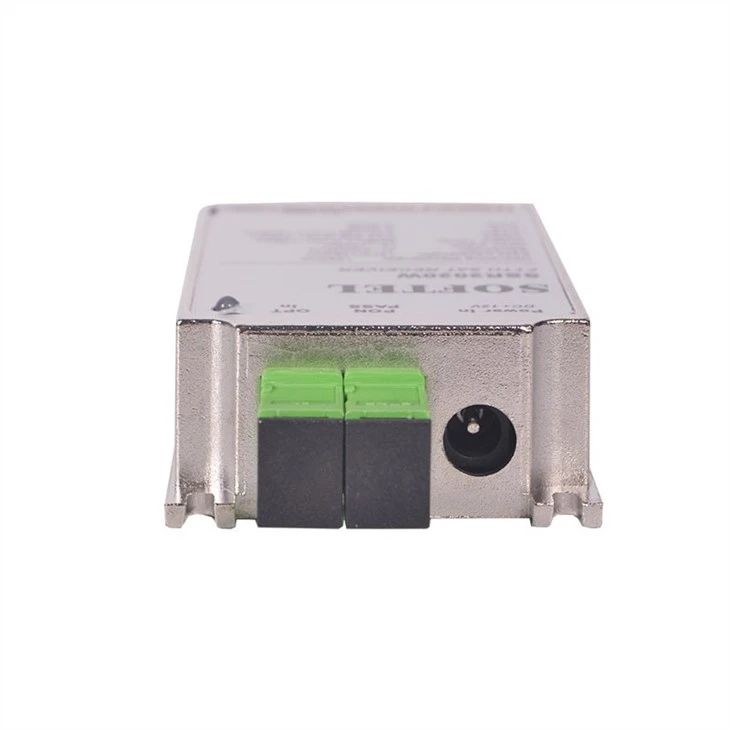

47- 2300 MHz optical fiber ntawm
Khoom Zaub
Nta
1.Designed rau FTTH (Fiber rau Tsev Network)
2.Txhais zoo kawg Linearity thiab tiaj
3.Frequency ntau 40-2300MHz Rau CATV Thiab PON Pass
4.Voltage mov: +5V (DC)
5.Optical Connector: HAUV SC / APC, OUT SC / UPC
6.Aluminium Profiles tsev nyob, zoo tshaj cua sov kom sov
7.Smaller loj thiab nruab yooj yim dua
8.Red-LED Lub Hwj Chim Kev Pom Zoo
9.Green-LED Optical Zog Qhov Cim (lub zog loj> -13dBm)
Cov Lus Qhia Tshwj Xeeb
Tus lej Khoom | Chav Nyob | Kev piav qhia | Cov lus ceeb toom | |
Cov Neeg Siv Khoom Sib Tham | ||||
1 | RF Txuas | 75ΩGG quot; F" txuas | ||
2 | Kho qhov muag Connector | SC / APC | ||
3 | DC Khoom Siv | DC Adapter | ||
Tsis muaj nuj nqi | ||||
4 | Cov tswv yim kho qhov muag fais fab | dBm | -20 ~ +2 | |
5 | Optical Xa Poob | dB | GG gt; 45 | |
6 | Optical Tau Txais Wavelength | nm | 1550nm | |
7 | Hom Fiber Optical | Ib Hom | ||
8 | PON Pass | nm | 1310 / 1490nm | |
RF Tsis | ||||
9 | Zaus Muaj Ntau Yam | MHz | 40-860 960-2300MHz | |
10 | Lub Hauv Paus | dB | ±1 | |
11 | RF Rov Qab Tuaj | dB | -14 | |
12 | Output Level | dBuV | 83 | @ 0dBm |
13 | Tsim Tawm Tsis Raug | Ω | 75 | |
14 | C/N | dBc | 52 | -1dBm tswv yim zog |
Lwm Tus Qauv | ||||
15 | Lub hwj chim tawm tswv yim Voltage | VDC | +5V | |
16 | Kev Siv Hluav Taws Xob | W | GG lt; 5.0 | |
17 | Qhov ntev | hli | 60*60*24 | |
18 | Nqaqhov hnyav | KG | 0.108 | |
