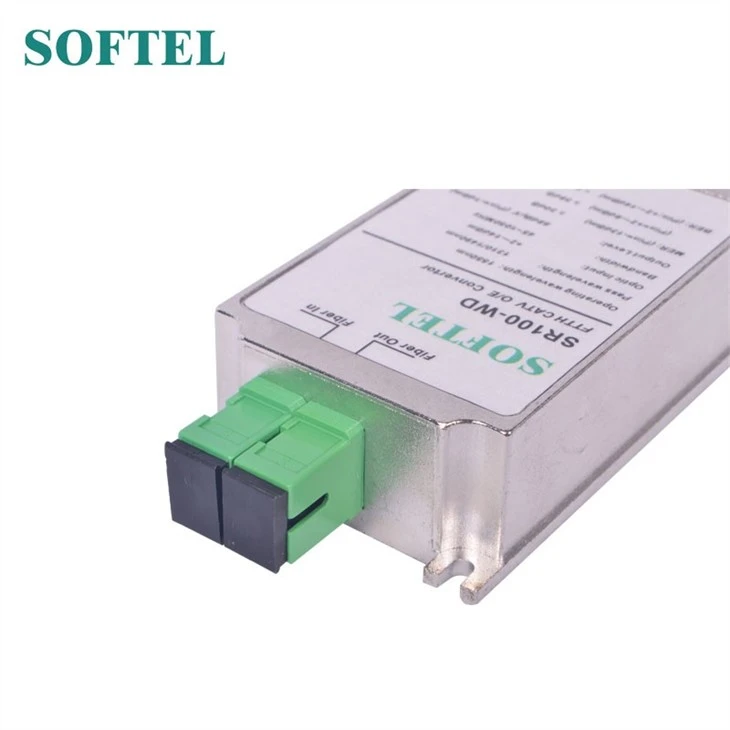

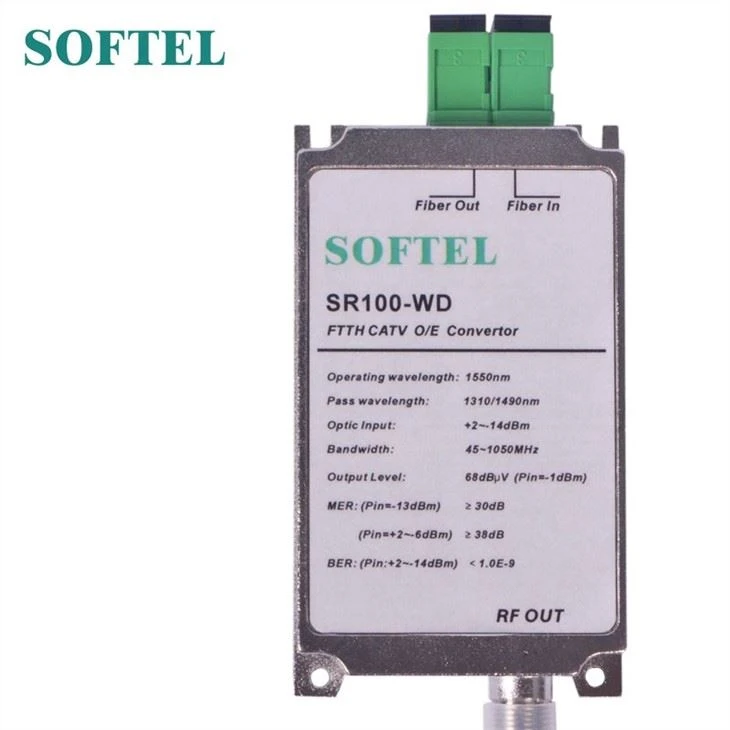

Qhia luv luv ntawmFTTx Fiber Optical Txais

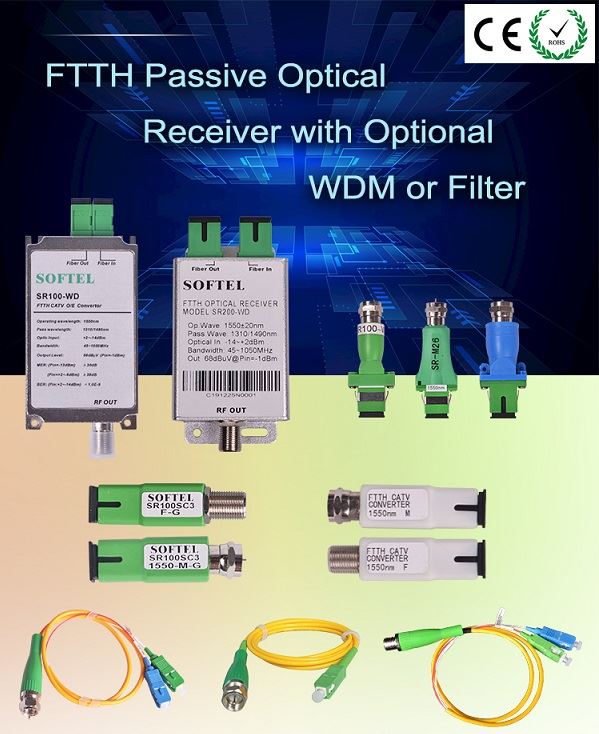

Ftth Mini fiber ntau kho qhov muag Nodefor digital TV, fiber ntau rau tsev. Lub tshuab no txais lub siab rhiab heev kho qhov muag txais lub raj, tsis muaj fais fab mov, tsis muaj hluav taws xob. Thaum cov tswv yim tsim tawm ntawm lub zog hluav taws xob tawm qib Pin=-1dBm, Vo=6 8dB V, tuaj yeem siv kev lag luam thiab yoog raws kev siv ua ke ntawm peb lub network, fiber ntau rau daim ntawv thov network hauv tsev. SR100 tsos ntawm txha hniav laus, muaj ob hom kev xaiv qhov kho qhov muag:
1. SR100: CATV kev khiav haujlwm nthwv ntuag 1260 ~ 1620nm.
2. SR100 / WF: Ua-hauv 1310 / 1490nm lim, haum rau ib leeg-triple wavelength system, CATV Kev khiav hauj lwm wavelength 1550nm.
Khoom feature ntawmFTTx Fiber Optical Tau Txais
1. Tsis muaj fais fab yuav tsum
2. Ua haujlwm bandwidth 45 ~ 1050MHz
3.Txoj Kev Tsim Tawm=68dBμV (Pin=-1dBm)
Daim ntawv thov tseem ceeb
1. CATV FTTH
2. Kev sib koom ua ke ntawm peb lub network
3. FTTH NPAJ

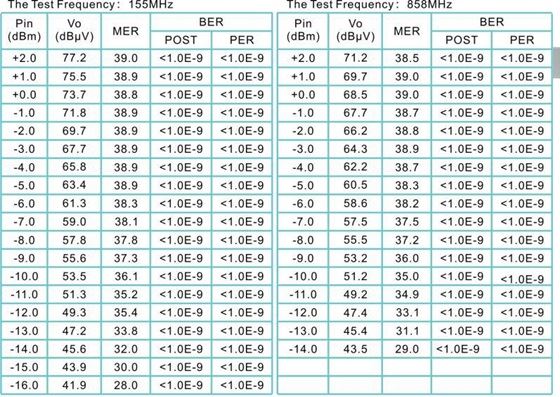

Cov ntaub ntawv sim
Kev ntsuas qhov ntsuas
Cov khoom | Optic feature | Chav Nyob | Qhov ntsuas | Txhawb Ntxiv |
| Optic feature | CATV Ua haujlwm wavelength | (nm) | 1260~1620 | SR100 |
| 1540~1563 | SR100 / WF | |||
Channel Ua Cais | (dB) | ≥40 | 1550nm& 1490nm | |
Cwj pwm txawv | (A/W) | ≥0.85 | 1310nm | |
| ≥0.9 | 1550nm | |||
Tau txais lub hwj chim | (dBm) | +2~-14 | ||
Optical xa poob | (dB) | ≥55 | ||
| Optical fiber txuas | SC / APC | SR100-SC | ||
| FC / APC | SR100-FC | |||
RF Feature | Ua haujlwm bandwidth | (MHz) | 45 ~ 1050MHz | |
Rau cov zis theem | (dBμV) | GG gt; 68 | Cov TV (Pin=-1dBm) | |
Rov poob | (dB) | ≥14 | 47 ~ {862 MHz | |
Tsim tawm impedance | (Ω) | 75 | ||
| Rau cov chaw nres nkoj naj npawb | 1 | |||
| RF khi-hauv | F-Poj Niam | |||
DigitalTV eature | OMI | (%) | 4.3 | |
MET | (dB) | ≥38 | Tus Pin=-1dBM | |
| ≥30 | Tus Pin=-13dBm | |||
| BER | GG lt; 1.0E-9 | Tus pin: +2 ~ -14dBm | ||
General yam ntxwv | Ua haujlwm temp | (℃) | -20~+55 | |
Cia temp | (℃) | -40~85 | ||
Ua haujlwm temp tus txheeb ze | (%) | 5~95 | ||
Loj (W) × (D) × (H) | (hli) | 23×53×12 | Ib Hom (Hom Txha Hniav) | |
| Ф13×28 | B Hom (Hom Fiber) | |||
| 50×88×22 | C Hom (Hom Box) |
Cov FAQ
1. Cov nqe lus them nqi dab tsi uas koj them?
Feem ntau, peb lees txais T / T, PayPal, Western Union, thiab Alibaba Kev Lag Luam Kev Lag Luam. Koj tuaj yeem xaiv cov nqe lus them nqi uas yuav yooj yim dua rau koj.
2. Yuav ua li cas txog lub sijhawm txhuas?
Feem ntau, yog tias muaj' s Tshuag, peb xa cov khoom hauv 3 ~ 5 hnub ua haujlwm tom qab tso nyiaj tau txais kev pom zoo. Yog tias nws tawm hauv cov khoom, lub sijhawm txhuas yuav nyob ntawm.
3.Yog li cas txog kev xa khoom?
Thaum pob tau me me, peb ib txwm xaiv FedEx, DHL, TNT, thiab UPS thiab lwm yam, thaum cov khoom lag luam muaj qhov hnyav thiab ntim ntau, peb hais kom siv kev xa khoom huab cua lossis dej hiav txwv.
4. Kuv tuaj yeem tso xaj li cas?
(1) Kev sib khom lus pom zoo rau cov nqi khoom thiab cov ntsiab lus.
(2) Daim ntawv qhia Proforma yuav xa tuaj rau kev paub meej.
(3) Tom qab kev pom zoo ntawm daim ntawv them nqi proforma, tus neeg yuav khoom ua qhov tso nyiaj.
(4) Kev tsim khoom yuav pib sai sai thaum qhov kev them nyiaj tau pom zoo los ntawm peb lub txhab nyiaj.
(5) Nkoj tawm cov khoom hauv qhov kev pom zoo xa tuaj lub sijhawm.
5. Koj puas tuaj yeem ua OEM rau peb?
Yog lawm. Yog tias muaj qee qhov kev txiav txim kom muaj nuj nqis, peb tuaj yeem ua OEM suav nrog kev luam ntawv, logo, thiab tus qauv customized rau koj.
6. li cas txog qhov Warranty?
Muaj 12 lub hlis rau qhov lav.
Thaum lub warranty tsis yog lub luag haujlwm rau cov uas tawg los ntawm kev tsim txom lossis kho tshiab nrog lwm hom.
