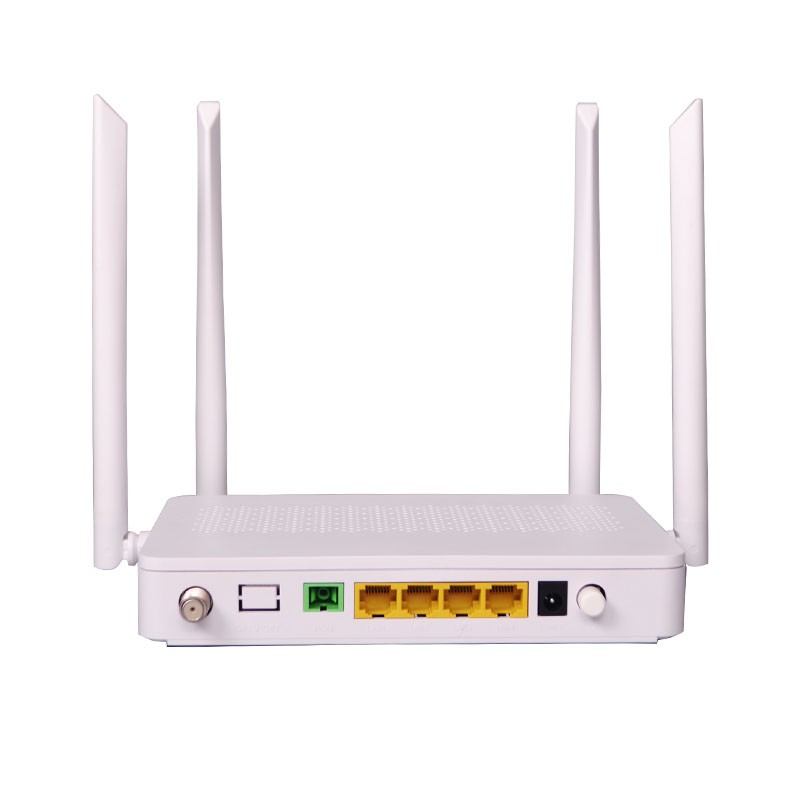

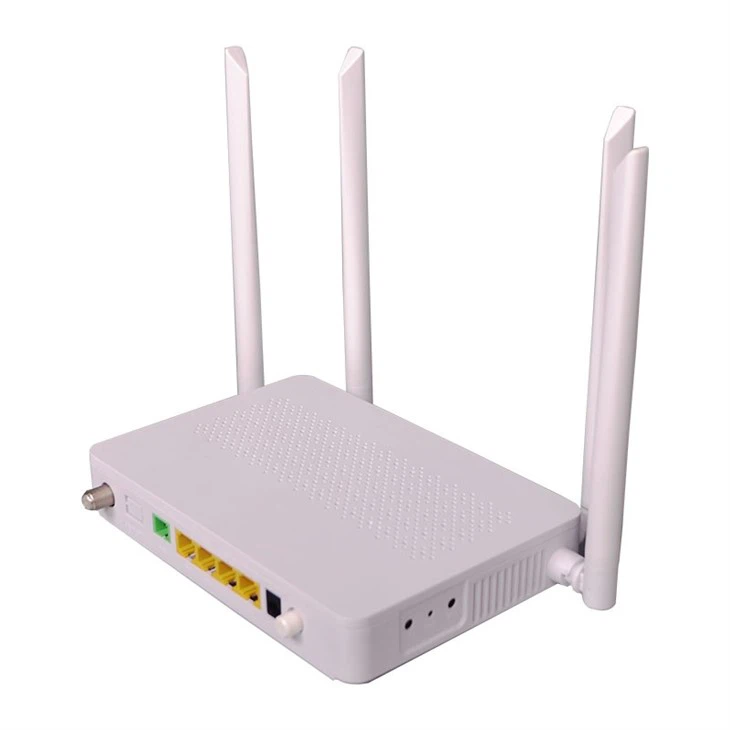

ONT XPON Dual Band
4 NTAUXPON Dual Band2.4 / 5G WIFI
Cov neeg siv tsis tas yuav txhawj xeeb txog kev siv internet qeeb lossis cov yeeb yaj kiab tsis zoo vim tias ONT-4GE-RFDW tau txais lawv them. Nws ua kom cov neeg siv txaus siab rau kev sib txuas sib txuas thiab kev ua yeeb yaj kiab video. Cov cuab yeej zoo tshaj plaws rau ob qho tib si hauv vaj tse thiab kev lag luam, ua tau raws li qhov xav tau ntawm cov neeg siv sib txawv.
Tsis tas li ntawd, ONT-4GE-RFDW yog ib qho yooj yim rau nruab, teeb tsa thiab tswj, nws muab cov neeg siv kev paub tsis muaj teeb meem. Nws yog ib qho cuab yeej zoo heev uas yooj yim rau kev muab kev pabcuam hauv internet thiab video rau cov neeg siv. Nrog rau cov cuab yeej no, cov chaw muab kev pabcuam tuaj yeem xa cov kev pabcuam zoo, ceev ceev, thiab pheej yig hauv internet thiab video rau lawv cov neeg siv khoom.
1.Technical Specifications
Hardware parameters
|
Dimension |
220mm x 150mm x 32mm (tsis muaj kav hlau txais xov) |
|
Qhov hnyav |
Kwv yees li 310 g |
|
Ua haujlwm qhov kub thiab txias |
0 degree -+40 degree |
|
Ua hauj lwm ib puag ncig humidity |
5% RH-95% RH, tsis-condensing |
|
Fais fab adapter input theem |
90V -270V AC, 50/60Hz |
|
Cov khoom siv hluav taws xob |
11V -14V DC, 1 A |
|
Kev siv hluav taws xob zoo li qub |
7.5 W |
|
Kev siv hluav taws xob siab tshaj plaws |
18 W |
|
Interfaces |
1RF+4GE+Wi-Fi(2.4G+5G) |
|
qhov taw qhia teeb |
POWER / PON / LOS / LAN / WLAN / RF |
Icov parameters
|
PON interface |
Chav B + -27dBm txais rhiab heev Wavelength: Upstream 1310nm; Hauv qab 1490nm Txhawb WBF Daim ntawv qhia yooj yim ntawm GEM Chaw nres nkoj thiab TCONT Authentication method: SN/password/LOID(GPON) Ob-txoj kev FEC (Kev kho qhov yuam kev Forward) Txhawb DBA rau SR thiab NSR |
|
Ethernet chaw nres nkoj |
Stripping raws li VLAN Tag / Tag rau Ethernet chaw nres nkoj. 1:1VLAN/N:1VLAN/VLAN Pass-through QinQ VLAN MAC chaw nyob txwv MAC chaw nyob kev kawm |
|
WLAN |
IEEE 802.11b/g/n 2 × 2 MIMO Kav hlau txais xov nce: 5dBi WMM (Wi-Fi multimedia) Ntau SSID ntau yam WPS |
|
RF interface |
Txhawb tus qauv RF interfaces Txhawb hd cov ntaub ntawv streaming |
5G Parameters
|
Network txheem |
IEEE 802.11 ua |
|
Kav hlau txais xov |
2T2R, txhawb MU-MIMO |
|
Kev txhawb siab tshaj plaws |
20M: 173.3Mbps 40M: 400Mps 80M: 866.7Mbps |
|
Cov ntaub ntawv modulation hom |
BPSK QPSK 16QAM 64QAM 256QAM |
|
Cov zis siab tshaj plaws |
Tsawg dua lossis sib npaug li 20dBm |
|
Txuj channel (Customized) |
36,40,44,48,52,56,60,64,100,104, 108,112,116,120 ,124,128,132,136, 140,144,149,153,157,161,165 |
|
Hom encryption |
WPA, WPA2, WPA/WPA2, WEP, Tsis muaj |
|
Hom encryption |
AES, TSI |
2. Cov ntaub ntawv ua haujlwm
Kev txawj ntse sib txuas
WiFi kev txawj ntse kev pab them nqi
Txhawb HD cov ntaub ntawv streaming
Tej chaw nres nkoj tej kev pab
Niam txiv tswj
L2 / L3 (IPv4) rov kis tau tus mob: 1G rau pem hauv ntej, 2G rov qab
Cov khoom rau peb txheej
PPPoE / static IP / DHCP chaw nyob nkag
NAS/NAPT
ALG, NPE
DDNS/DNS server/DNS tus neeg siv khoom
IPv6 / IPv4 dual-pawg, DS-Lite
Static route/default route
Multicast
IGMP v2/v3snooping
IGMP v2 proxy
IGMP v3 proxy
MLD v1/v2snooping
Qos
Ethernet chaw nres nkoj ceev txwv
802.1p ua
SP/WRR/SP+WRR
Tshaj tawm xov xwm ceev txwv
Skev nyab xeeb
SPIFIrewall
MAC/IP/URL chaw nyob filtering
O&M
OMCI/WebUI/TR069
Kev txuag hluav taws xob
Qhov taw qhia lub teeb lub zog-npaum
Lub sijhawm hloov
