Dual band onu wifi router (ONT-2GE-DW-MESH) yog kev ua haujlwm siab wireless router

Xa kev nug

Ces

Khoom Taw qhia

Yog xav paub ntxiv txog peb cov khoom lossis pricelist, thov hu rau peb: Helena Chen

Email: softel12@softel-optic.com Whatsapp: https://wa.me/8618457980817

Qhuav Taw Qhia

Dual band onu wifi router

Lub Dual Band 802.11ac wireless router liONT-2GE-DW-MESHxa cov kev ua haujlwm siab wireless txuas rau Chaw Ua Haujlwm Me thiab Tsev (SOHO) kev xa tawm thiab txhawb nqa ob pawg ua haujlwm ib txhij ntawm 2.4GHz thiab 5GHz nrog kev sib koom ua ke ntawm 1.2Gbps (300Mbps ntawm 2.4GHz thiab 867Mbps ntawm 5GHz).

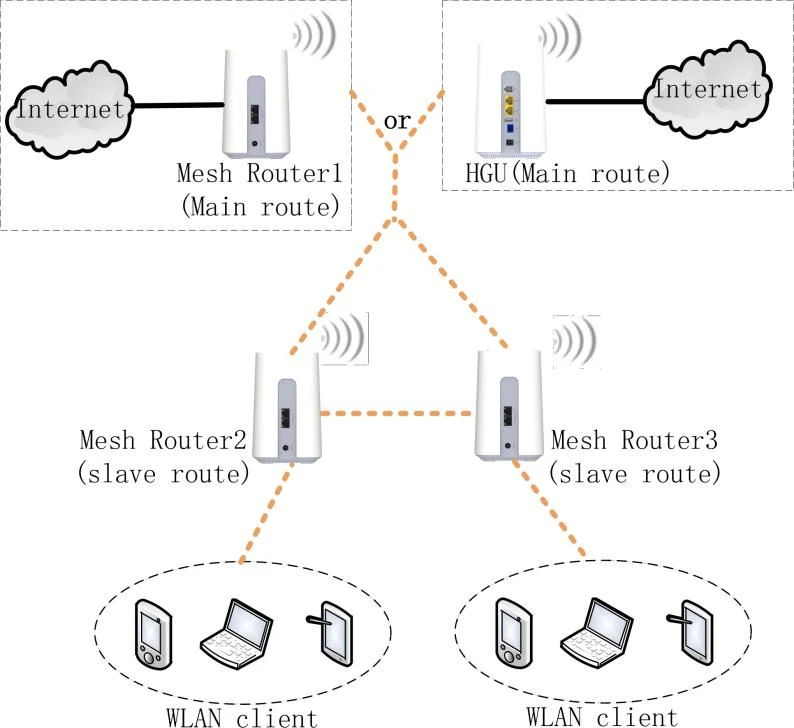

Dual band ntawm wifi router (ONT-2GE-DW-MESH)txhawb Wi-Fi EasyMesh uas coj cov qauv raws li txoj hauv kev rau Wi-nkaus tes hauj lwm uas siv ntau lub ntsiab lus nkag (APs), sib txuas cov txiaj ntsig ntawm kev siv yooj yim, hloov kho tus kheej Wi-Fi nrog kev hloov pauv ntau dua hauv kev xaiv khoom siv uas los nrog kev sib cuam tshuam. Wi-Fi EasyMesh pab kiag li lawm.

Daim ntawv thov-Dual band ntawm wifi router

Dual band onu wifi router

Technical parameters

Yam khoom	Dual band onu wifi router (1 * GE + 1 * FE ntxiv rau WiFi)
LAN interface	2 * 10/100/1000Mbps auto adaptive txuas		Ethernet	interfaces,	Tag nrho / Ib nrab,	RJ 45
WiFi interface	Ua raws li IEEE 802.11b/g/n/ac 2.4GHz Kev khiav hauj lwm zaus: 2.400-2.483GHz (WiFi 4) 5.0GHz Kev khiav hauj lwm zaus: 5.150-5.825GHz (WiFi 5 yoj 2) WiFi: MIMO 2×2 Rau 2.4GHz, MIMO 2×2 Rau 5.0GHz, 4×5dBi tus kav hlau txais xov sab nraud, tus nqi mus txog 1.166Gbps, Ntau SSID TX hwj chim: 11n--22dBm/11ac--24dBm
LED	3, Rau Status ntawm	SYS, LAN1, LAN2
Kev ua haujlwm ib puag ncig	Temperature: 0 degree - ntxiv rau 50 degree Humidity: 10 feem pua-90 feem pua（tsis-condensing）
Khaws ib puag ncig	Kub: -30degree -ua plus60degree Humidity: 10 feem pua-90 feem pua（tsis-condensing）
Fais fab mov	DC 12V / 1A, 10W
Dimension	115mm × 115mm × 180m (L × W × H)
Net nyhav	560g

Vaj huam sib luag teeb

Panel lights

Interface piav qhia

LED	Mark	xwm txheej	Kev piav qhia
Qhov system	SYS	Tawm	Cov cuab yeej tsis ua haujlwm.
		Ntawm	Ntsuab: WAN txuas lossis mesh txuas.
			Txiv kab ntxwv: Lub cuab yeej yog nyob rau hauv qhev txoj kev hom.
			Liab: Cov cuab yeej pib.
		Tsaus muag	Ntsuab: Mesh tsis txuas lossis txuas.
		Tsaus muag	Txiv kab ntxwv: WAN txuas.
Ethernet	WAN / LAN	Ntawm	Chaw nres nkoj txuas zoo.
		Tawm	Kev sib txuas ntawm qhov chaw nres nkoj lossis tsis txuas.
		Tsaus muag	Chaw nres nkoj xa lossis / thiab tau txais cov ntaub ntawv.

Interface/khawm vaj huam sib luag

Interface button Panel

Lub npe	Muaj nuj nqi
WAN/LAN	Txuas PC lossis lwm yam khoom siv nrog Ethernet chaw nres nkoj los ntawm Cat5 cable, RJ-45 connector.
DC 12 V	Txuas nrog lub hwj chim adapter. DC 12V, 1.5A.
Round khawm	Nias lub pob sai sai los tsim lub network nrog lwm cov khoom siv mesh.
RST	XovxwmRSTkhawm dhau 10 vib nas this los rov qab router rau lub Hoobkas pib.
