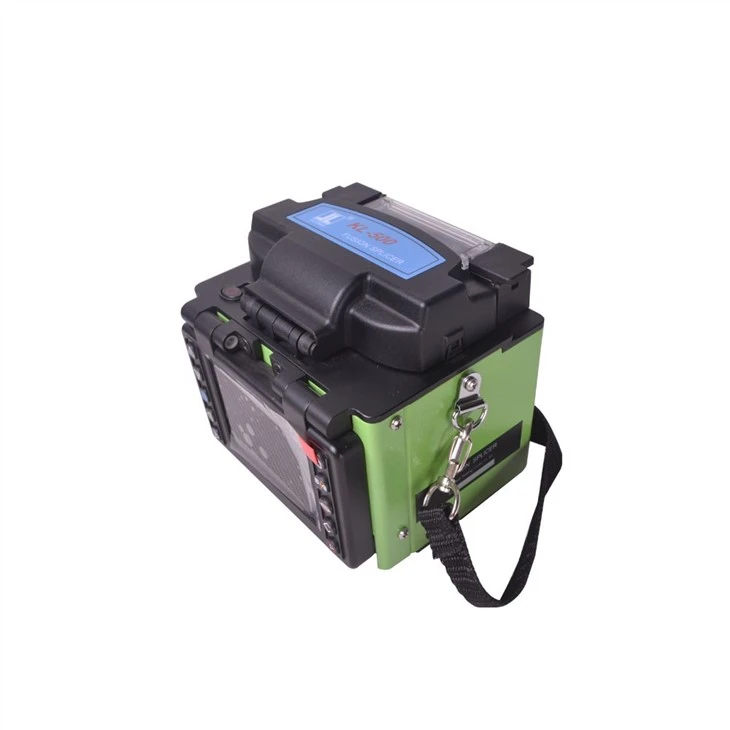

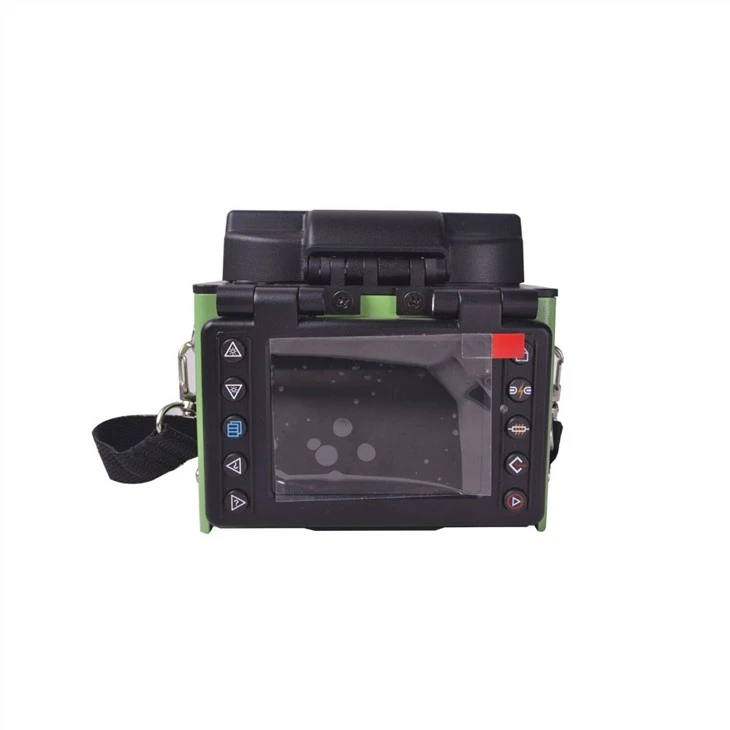

Fiber Optic Splicing Tshuab
Fiber Optic Splicing Tshuab
|
Siv tau fibers |
SM MM DS NZDS |
|
Fiber txoj kab uas hla |
Cladding txoj kab uas hla: 80-150μm; Txheej txoj kab uas hla: 100-1000μm |
|
Fiber aligning method |
Meticulous, Core, Clad, Phau ntawv |
|
Qhov tseeb qhov nruab nrab splice poob |
{{0}}}02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS) |
|
Lub sij hawm splicing |
Hom 9 sec (tus qauv SM fiber ntau) |
|
Tube raug cua sov lub sij hawm |
Raws li 30 sec |
|
Cia ntawm splice tshwm sim |
4000 qhov tshwm sim, 20 parameter ib qhov tshwm sim |
|
Fiber ntau magnification |
200X (X lossis Y saib), 50X (X thiab Y saib) |
|
Roj teeb muaj peev xwm |
Hom 300 cycles (splice / raj cua sov nrog sab hauv Li-roj teeb) |
|
Saib xyuas |
3.5 nti TFT xim LCD saib |
|
Fais fab mov |
AC 100-240V nrog AC adapter sab hauv Li-battery (5200mAH) |
|
Dimension |
25 hli (L) × 105 hli (W) × 113 hli (H) |
|
Fiber cleaved ntev |
8-16mm (txheej txoj kab uas hla: 250μm) |
|
Fiber suav |
Ib leeg |
|
Rov qab poob |
>60dB ib |
|
Splicing hom |
Nws pib Calibrate Ib txwm Tshwj xeeb |
|
Splicing program |
53 (templet), 40 (neeg siv) |
|
Tiv thaiv lub tes tsho ntev |
60mm, 40 hli |
|
Tube cua kub program |
9 (templet), 24 (neeg siv) |
|
Kev ntsuas nruj |
2N |
|
Electrode lub neej |
2500 |
|
Terminal |
USB |
|
Kev ua haujlwm |
0-5000m saum hiav txwv theem, -10-50 degree |
|
Qhov hnyav |
1.55Kg suav nrog roj teeb |
|
Muaj nuj nqi |
KL-280G |
KL -280 |
KL-300T |

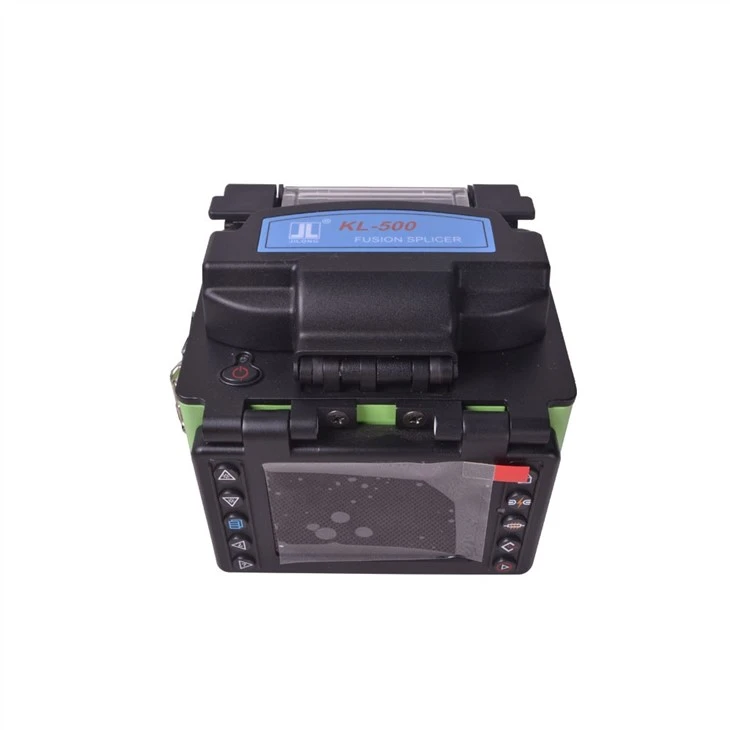

KL -500 |
|
Zaub fiber cleaved lub kaum sab xis |
— |
— |
● |
● |
|
Zaub fiber ntau offset kaum |
— |
— |
● |
● |
|
Tso saib core offset |
— |
— |
● |
● |
|
Qhia clad offset |
— |
— |
● |
● |
|
Splicing hom (Auto, Calibrate, Ib txwm, Tshwj xeeb) |
● |
— |
● |
● |
|
Fiber aligning method (Core, Clad, Phau ntawv) |
● |
— |
● |
● |
|
Arc zog tsis siv neeg hloov |
● |
— |
● |
● |
|
Duab tig dhau |
— |
● |
● |
● |
|
Fiber angle txwv |
— |
— |
● |
● |
|
Qhia qhov kub thiab txias |
— |
— |
● |
● |
|
Qhia qhov kub thiab txias |
— |
— |
● |
● |
|
Muab tso rau qhov kub thiab txias |
— |
— |
● |
● |
|
Tso saib huab cua siab |
— |
— |
● |
● |
|
Tso lub roj teeb voltage |
— |
— |
● |
● |
|
Taper splice |
— |
— |
● |
● |
|
Pw tsaug zog |
— |
— |
● |
● |
|
Nws pib kaw |
— |
— |
● |
● |
|
Software upgrade ntawm USB interface |
● |
— |
● |
●
|
