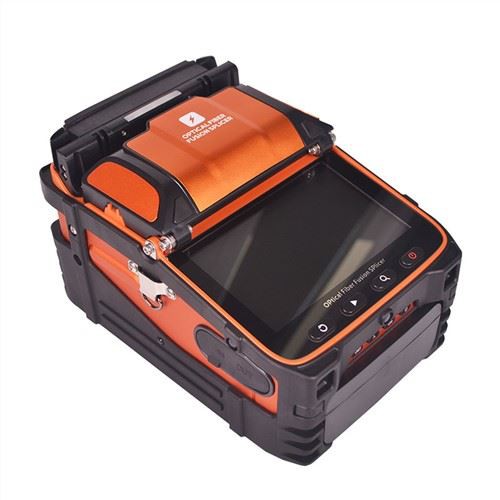

Fiber Fusion Splicer

Qauv

6481A Optical Fiber Fusion Splicer

6481B Optical Fiber Fusion Splicer

Motor qty.

6

4

Txoj kev alignment

Cladding alignment, Core alignment

Siv tau fibers

Txhua hom fiber ntau optical, roj hmab-insulated fibers thiab jumpers uas ua tau raws li xav tau
Cov ntsiab lus ntawm ITU-TG.651 ~ 653, ITU-TG.655 thiab ITU-TG.657.

Optical fiber ntau

Cladding: {{0}}μm, txheej txheej: 0.1-3mm

Cleev ntev

5-16mm (coated optical fiber inch Tsawg dua lossis sib npaug li 250μm);
10 hli (coated optical fiber txoj kab uas hla: 0.25 ~ 3mm)

Splice poob (tseem ceeb)

{0}}.02dB (SMF); 0.01dB (MMF);
{0}}.04dB (DSF); 0.04dB (NZDSF)

{0}}.03dB (SMF); 0.02dB (MMF);
{0}}.05dB (DSF); 0.05dB (NZDSF)

Rov qab poob

Zoo tshaj 60dB

Splicing lub sij hawm (tus qauv)

7s (Fast mode)

Lub sijhawm cua sov (tseem ceeb)

18s (60mm lub tes tsho tiv thaiv)

Kev ntxhov siab

1.96-2.25N

Lub tes tsho tiv thaiv

60mm, 40mm thiab ib lub tes tsho tiv thaiv

Graphical zaub

High-kev ua tau zoo 4.3 nti LCD

Lub sijhawm magnification

320 zaug / 88x, 700x

320 x 88 x

Fusion cov ntaub ntawv

10000 pawg / 64 duab

10000 pawg

Roj teeb muaj peev xwm

11.1V, 6800 mAh

Roj teeb ua haujlwm lif

Lub voj voog them nyiaj: 300-500 suav, tuaj yeem hloov tau los ntawm cov neeg siv khoom

Electrode ua haujlwm lub neej

Hom: 4000 suav, tuaj yeem hloov tau los ntawm cov neeg siv khoom

Kev tsim kho teeb pom kev zoo

Built-in teeb nrog high-brightness thiab dav teeb pom kev zoo cheeb tsam

Ua haujlwm ib puag ncig

Kub: -10-50 degree ; Hum: 0-95 feem pua ​​RH, qhov siab tshaj hiav txwv theem: 0-6000m

Kev ua haujlwm interfaces

GUI

Lub zog sab nraud

AC: 100-240V, 60Hz, 0-1.5A; DC: 10-15V

Chaw nres nkoj

USB / SD

Qhov ntev

120mm (W) × 130mm (H) × 154mm (D) (tsis muaj roj hmab los tiv thaiv kev vibration ncoo)

Qhov hnyav

1.8kg (tsis muaj roj teeb),
2.1kg (nrog roj teeb)

1.7kg (tsis muaj roj teeb),
2.0kg (nrog roj teeb)
