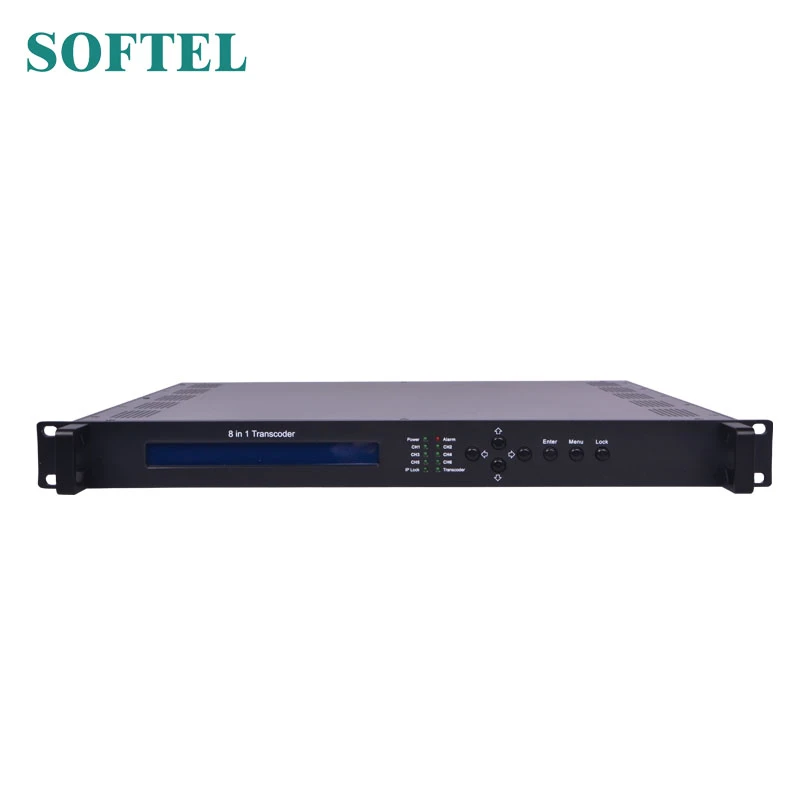

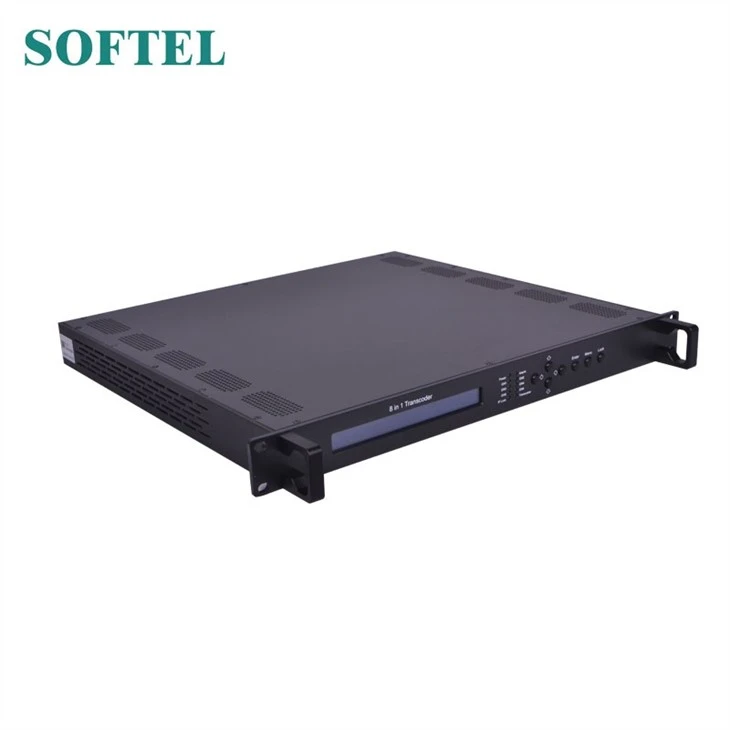

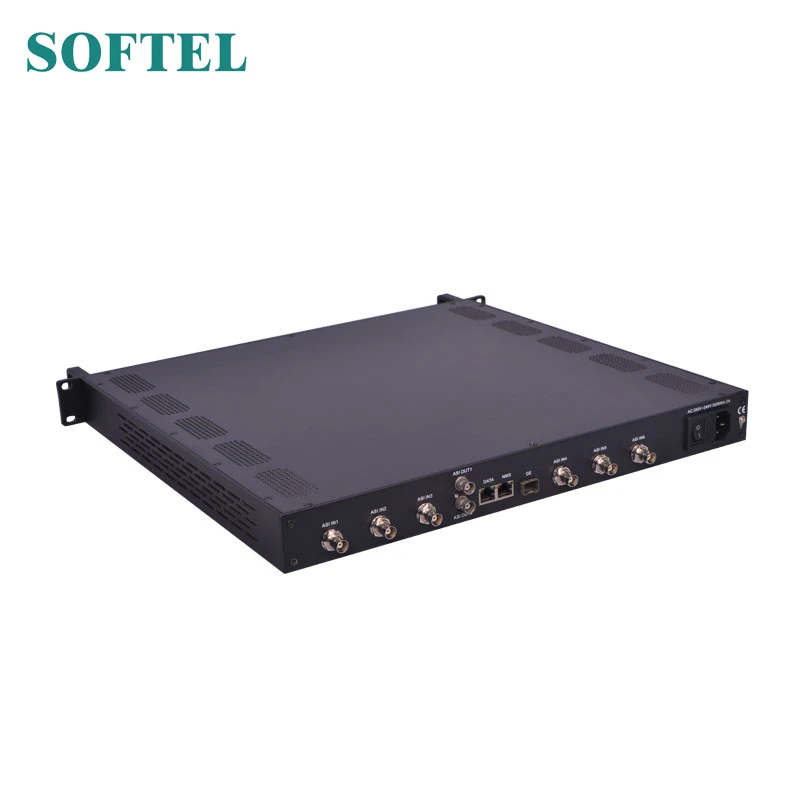

IP Input ASI Tso Tawm IPTV Transcoder

Cov tswv yim IP ASI tso tawm IPTV Transcoder yog kev tshaj lij kev txhawb nqa kev hloov pauv hloov video ntawm H.264 thiab MPEG-2 hom ntawv thiab tseem yuav hloov xa ntawm HD thiab SD cov kev pab cuam ib txhij.

Xa kev nug

Khoom Taw qhia

IP tswv yim ASI tso zis IPTV Transcoder

Cov tswv yim IP ASI tso tawm IPTV Transcoderis ib tug kws tshaj lij trans transererto hloov video ntawm H.264 thiab MPEG-2format thiab tseem yuav kis ntawm HD thiab SDprograms ib txhij. Nws yog nruab nrog 6 Tuner inputs thiab tus IP tawm tswv yim kom tau txais cov digital digital. Tom qab transcoding, itoutputs MPTS& Kev nqus tawm ntawm DATA chaw nres nkoj lossis ASI chaw nres nkoj.

Qhov no transcoder txhawb kev rov ua dua tshiab-multiplexingand tuaj yeem muaj txiaj ntsig muab cov neeg siv ua haujlwm nrog lub sijhawm tiag tiag tus lej hloov pauv thiab ua kom zoo dua daim vis dis aus nrog nws txoj kev ua haujlwm siab.

BISS muaj nuj nqi tam sim no kos rau descramble Tuner thiab IP input cov haujlwm thiab CC ua haujlwm zoo li thauj koj cov duab kab lus kaw (lossis teletext).

Nws tuaj yeem tswj tau yooj yim los ntawm lub vev xaib NMS, thiab tau dhau los ua cov kev daws teeb meem zoo rau cov neeg teb xov tooj kom muab cov vis dis aus zoo rau kis kab.

1.2 Cov Qauv Tseem Ceeb ntawmIP tswv yim ASI tso zis IPTV Transcoder

USupport 8 * IP (SPTS / MPTS) cov tswv yim ntxiv rau 6DVB-S2 / ASTCTuner cov tswv yim

USaib Dab 8 * SPTS& 1 * MPTS (UDP / RTP / RTSP) kev tsim tawm; 1 ASI (MPTS) tso zis tawm

VideoTrans-coding: MPEG-2SD / HD thiab H.264 SD / HDany-rau-ib qho

ØAudio Trans-coding: LC-AAC, MP2 thiab AC3 ib qho twg-rau-ib-dhau-dhau ntawm.

ØQhov nyiaj them yug ntau tshaj plaws 8 SD lossis 4 HD programs trans-coding

ØTxoj kev them nyiaj yug ntau tshaj 8 channel audio trans-coding

Support HD thiab SDresolutions

ØSupport CBR thiab VBR kev tswj tus nqi

USupport CC (kaw cov lus)

USupport BISS descrambling

USupport IP tawm nrog thov packetfiltered

Muaj kev rov nce siab

LCD& Qhov tseem ceeb board tswj; kev tswj hwm webNMS

Cov Lus Qhia Tshwj Xeeb ntawmIP tswv yim ASI tso zis IPTV Transcoder

NtwsHauv	8 MPTS / SPTSoverUDP / RTP / RTSP, 1000M Puag-T Ethernet Interface / SFP interface
	6 * (DVB-S / S2 / C / T / ISDB-T / ATSC) Tuners; 6 * ASI (yeem)
NTXHAIS Descramble	Qhov siab kawg 8 programmes
Yees duab video	Daws Teeb Meem	1920x1080I,1280x720P, 720x576i, 720x480i 480x576, 544x576, 640x576, 704x576
	Cov ntawv pauv lej	4 * MPEG2 HD → 4 * MPEG2 / H.264 HD; 4 * MPEG2 HD → 4 * MPEG2 / H.264 SD; 8 * MPEG2 SD → 8 * MPEG2 / H.264 SD
		4 * H.264 HD → 4 * MPEG2 / H.264 HD; 4 * H.264 HD → 4 * MPEG2 / H.264 SD; 8 * H.264 SD → 8 * MPEG2 / H.264 SD
	Tswj Tus Ntaus	CBR / VBR
Suab	Cov ntawv pauv lej	Audio Trans-coding: AAC, MP2 thiab AC3 ib qho twg-rau-ib qho lossis dhau-kis.
	Qeb Piv Txwv	48KHz
	Npaum Tus Nqi	32/48/64/96/128/192/224/256/320 / 384Kbps

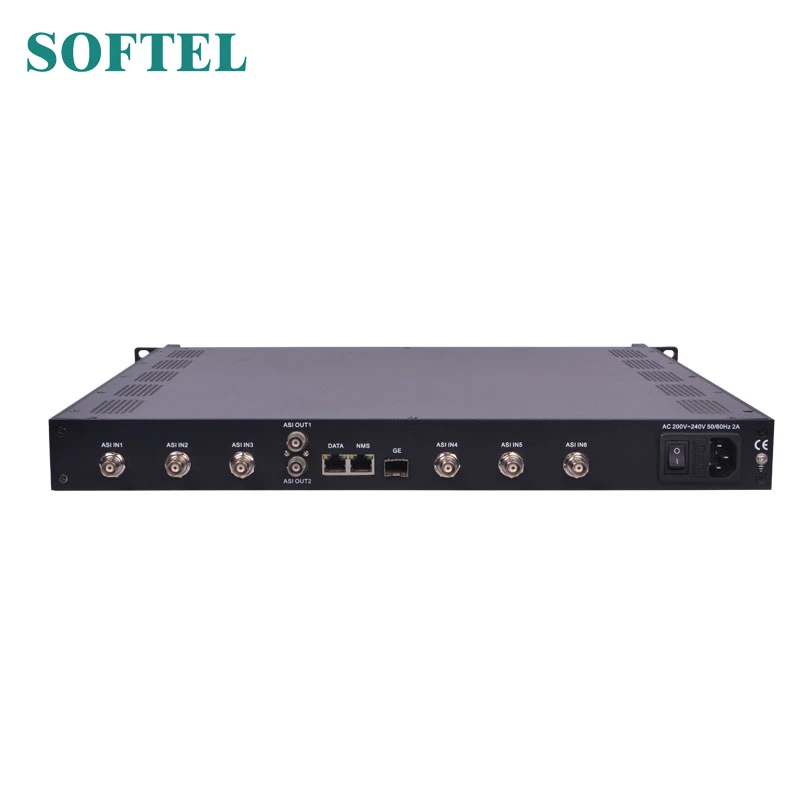

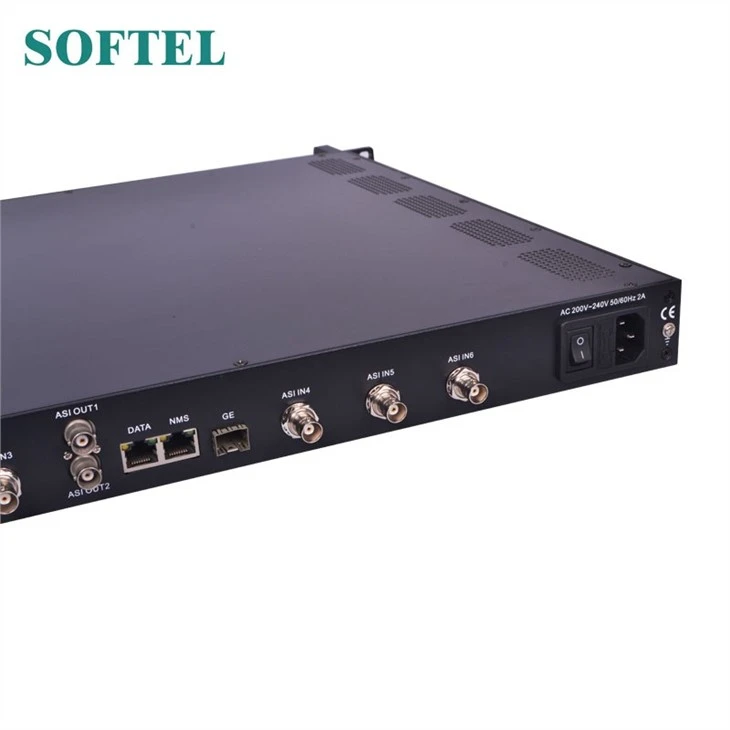

Ntws Tawm	8 * SPTS& 1 * MPTS dhau UDP / RTP / RTSP, 1000M Puag-T Ethernet Interface (UDP / RTPuni-cam khwb cia / multicast) / SFP interface
	1 * ASI (raws li daim ntawv luam ntawm ib ntawm 8 SPTS lossis MPTS) tso zis, BNC interface
Txheej Txheem Ua Haujlwm	LCD& Tswj hwm pawg tseem ceeb; Web NMS kev tswj hwm
	Ethernet software nce qib
Dav	Qhov ntev	430mm × 405mm × 45mm (WxDxH)
	Ntau yam kub thiab txias	0 ~ 45 ℃ (Kev Ua Haujlwm), -20 ~ 80 ℃ (Kev Cia)
	Yuav tsum muaj hwj chim	AC 110V ± 10%, 50 / 60Hz; AC 220V ± 10%, 50 / 60Hz
