8 hauv 1 HD Encoder Digital

Nws yog dav siv nyob rau hauv ntau yam ntawm digital faib tshuab xws li cable TV digital head-end, satellite digital TV tshaj tawm thiab lwm yam.

Xa kev nug

Khoom Taw qhia

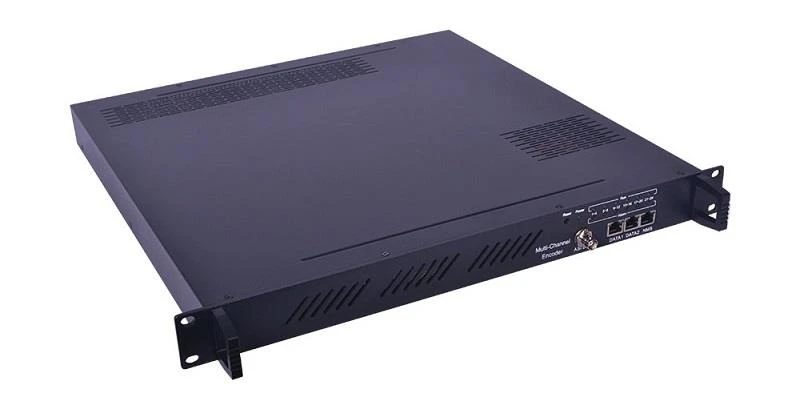

8 hauv 1 HD Encoder Digital

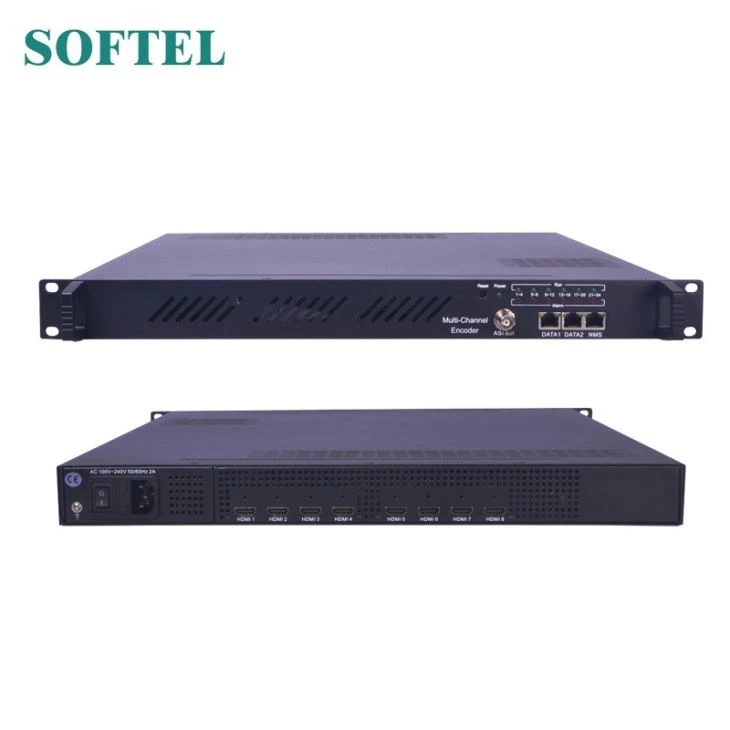

8 In 1 HD Encoder Digital

8 nyob rau hauv 1 HD encoder digitalSFT3542L-8 muaj 8 HDMI tso video nkag kis, txhawb MPEG-4 video encoding thiab MPEG 1 Txheej 2 suab encoding. Nws yog dav siv nyob rau hauv ntau yam ntawm digital faib tshuab xws li cable TV digital head-end, satellite digital TV tshaj tawm thiab lwm yam.

Cov yam ntxwv tseem ceeb

Txhawb 8 HD tawm tswv yim

128 IP tawm tswv yim los ntawm DATA1, DATA 2 thiab DATA3 chaw nres nkoj hla UDP thiab RTP raws tu qauv

MPEG4 AVC / H.264 hom ntawv txiav cov video

MPEG1 Txheej II audio encoding hom ntawv, txhawb suab nce kho

Txhawb nqa 1 MPTS thiab 128 SPTS IP tawm los ntawm DATA1 GE chaw nres nkoj dhau UDP thiab RTP raws tu qauv

Txhawb kev kho PCR kom raug

Txhawb PSI / SI editing thiab ntxig

Kev tswj los ntawm kev tswj lub vev xaib, thiab kev hloov tshiab yooj yim ntawm lub vev xaib

Tus nqi qis tshaj plaws ib qho channel, tus nqi tawg

Cov lus qhia tshwj xeeb ntawm8 Hauv 1 HD Encoder Digital

Cov lus qhia	8 HD inputs
	DATA1 (GE port) / DATA2 (GE port) / DATA3 (FE port), RJ45
Yees duab video	Daws Teeb Meem	cov lus qhia	1920×1080_60i, 1280×720_60i, 1920×1080_50i, 1280×720_50i
		tsim tawm	1920×1080_60i, 1280×720_60i, 1920×1080_50i, 1920×1080_60i, 1280×720_60i, 1920×1080_50i, 1280×720_50i, 720×480_50i, 320×240_60i, 176×240_60i,176×120_60i,720×576_50i, 704×576_50i,640×576_50i,352×288_50i, 320×288_50i,176×288_50i, 176×144_50i
	Koosloos		MPEG-4 AVC / H.264
	Npaum tus nqi		0.8Mbps ~ 19Mbps txhua channel
	Tswj Tus Ntaus		CBR / VBR
	GOP Tus Qauv		IP… P (P Ncej kev hloov kho, tsis muaj B Ncej)
Suab	Koosloos	MPEG-1 Txheej 2
	Qeb Piv Txwv	48KHz
	Daws Teeb Meem	24-ntsis
	Npaum tus nqi	32kbps, 48kbps, 56kbps, 64kbps, 80kbps, 96kbps, 112kbps, 128Kbps, 160kbps, 192kbps, 224kbps, 256kbps, 320kbps, 384kbps
	PID ntau	180 tawm tswv yim ib channel
	Rov Qab
Multiplexing	Muaj nuj nqi	PID remapping (txiav los yog manually) PCR kho tau qhov tseeb Tsim PSI / SI cov lus ncaj qha
Ntws zis	128 SPTS IP lossis 1MPTS tso zis dua UDP / RTP, 1 * 1000 Puag-T Ethernet interface
Lawv muaj nuj nqi	Kev tswj hwm Network (WEB) Lus Suav thiab lus Askiv Ethernet software nce qib
Lwm Yam	Qhov Loj (W × L × H)	482mm × 410mm × 44mm
	Kwv yees hnyav	8kg
	Ib puag ncig	0 ~ 45 ℃ (ua haujlwm); - 20 ~ 80 ℃ (Cia)
	Yuav tsum muaj hwj chim	AC 110V ± 10%, 50 / 60Hz, AC 220 ± 10%,

		50 / 60Hz

	Kev siv fais fab	70W
