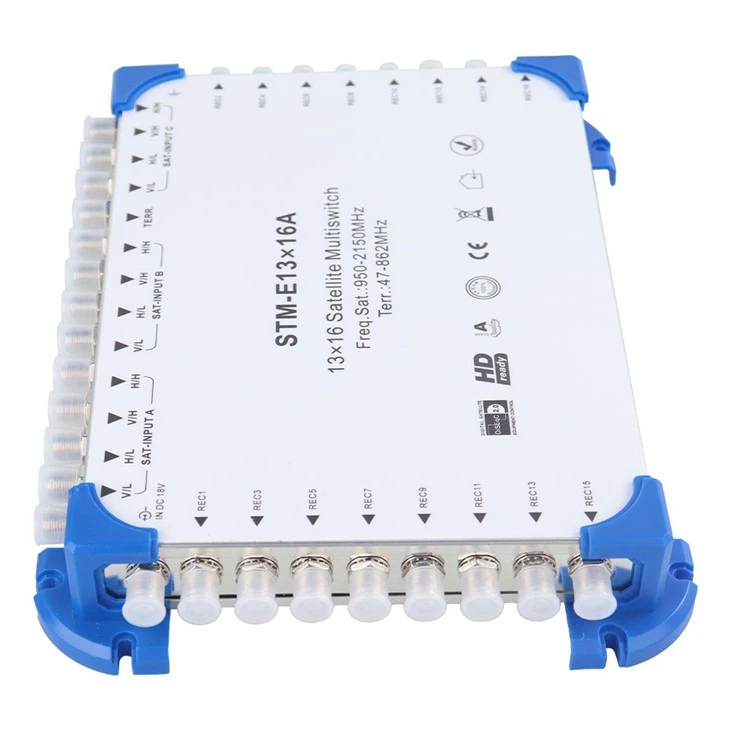

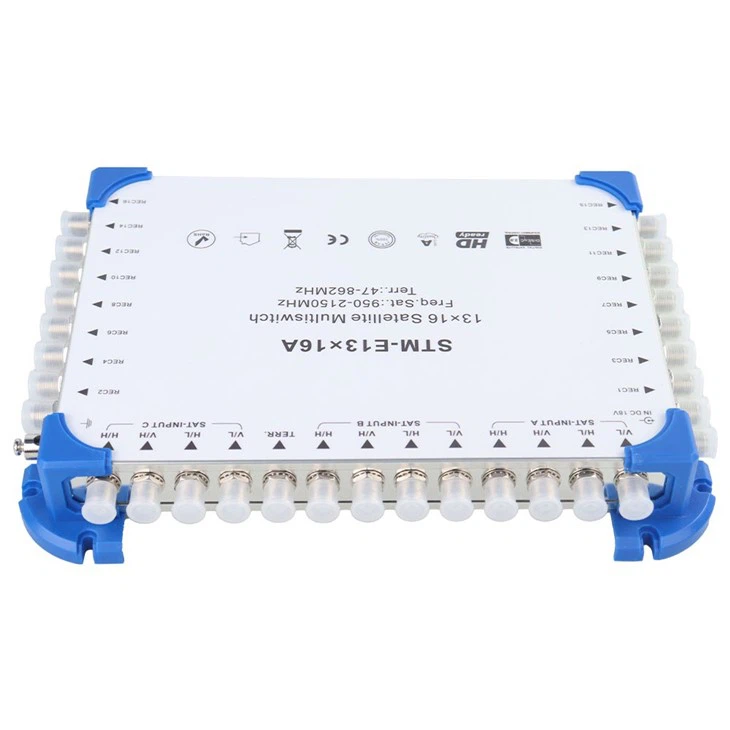

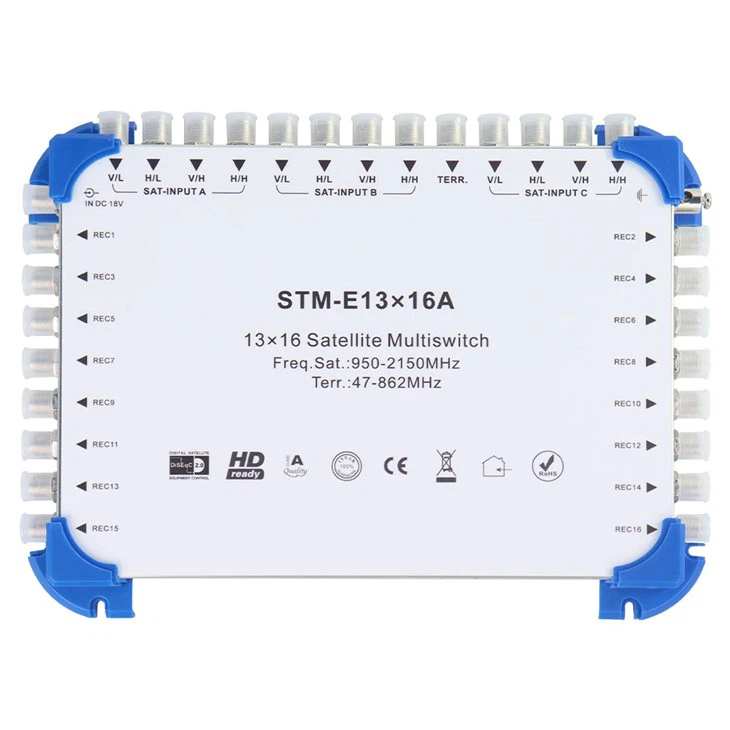

Multiswitch Rau Satellite TV
13 hauv 16 tawm Multiswitch rau Satellite TV
Nta
■ 12 satellite IF thiab 1 terrestrial TV inputs rau 16 satellite receiver
■ 12 satellite IF inputs xaiv los ntawm 13V, 18V 22KHz thiab DisEqC 2.0 teeb liab
■ Built-in amplifier
■ Tsis tshua muaj kev nkag mus, kev sib cais siab thiab rov qab poob
■ SAT-IF-PATHs rau cov neeg siv khoom siv thiab muab los ntawm tus txais
■ Sheet hlau vaj tsev nrog yas tuav
■ Tsim qauv zoo rau kev siv sab hauv tsev
Parameters
|
Yam khoom |
Specifications |
Lus ceeb toom |
|
|
Ntau zaus |
Terr.: 47 ~ 862MHz SAT: 950 ~ 2150MHz |
||
|
Cov tswv yim |
12 SAT+1 TUG. |
F connectors |
|
|
Cov zis |
16 Tus txais |
F connectors |
|
|
Insertion Poob |
Terr. |
5dB ib |
|
|
SAT |
0dB |
||
|
Rov qab los Poob |
Terr. |
10dB ib |
|
|
SAT |
10dB ib |
||
|
Nres band attenuation |
Terr. |
25dB ib |
|
|
SAT |
25dB ib |
||
|
Muab cais nyob ib leeg |
LNB-LNB |
35dB ib |
|
|
H/V |
30dB ib |
||
|
REC-REC |
Terr.: 25dB SAT: 30dB |
||
|
SAT tso zis qib |
100dBμV @35dB IMA3,EN50083-3 |
||
|
Terr. Tso zis qib |
85dBμV @60dB IMA3,EN50083-5 |
||
|
Hloov Qhov hluav taws xob |
V:10~14.5V H:15~20V |
||
|
Fais fab mov |
IN: 90 ~ 264V Tawm: 18V 2500mA |
||
|
Qhov ntev (w, d, h) |
298×208×42 |
mm |
|
