Passive Optical Tau Txais Nrog WDM
Passive optical receiver nrog WDM
Sumamry

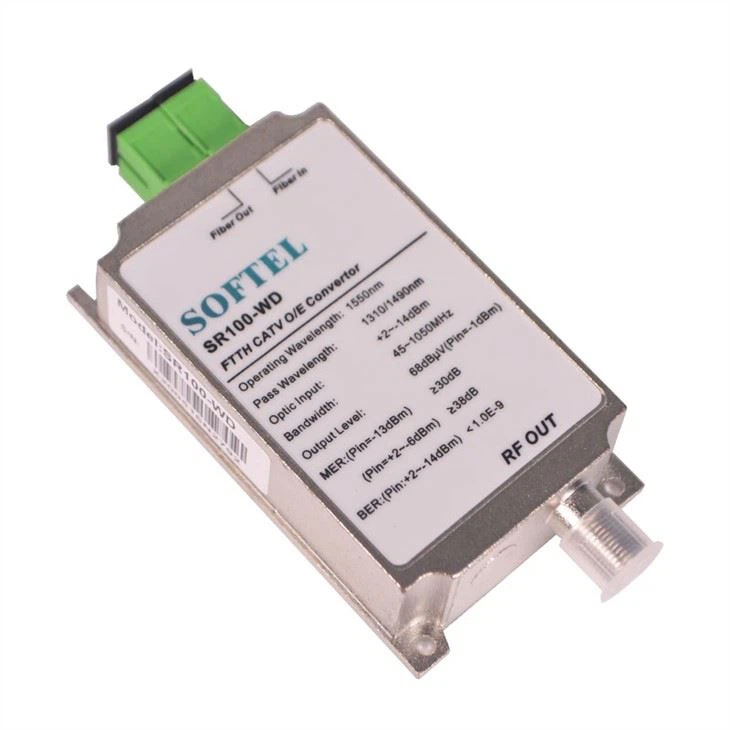

SR100-WD (Passive optical receiver nrog WDM) rau digital TV, fiber ntau rau hauv tsev.
Thaum cov tswv yim tsim tawm ntawm lub zog hluav taws xob tawm qib Pin=-1dBm, Vo=6 8dB V, tuaj yeem siv kev lag luam thiab yoog raws kev siv ua ke ntawm peb lub network, fiber ntau rau daim ntawv thov network hauv tsev.
Khoom Zaub
Nthuav dav Duab
Cov Nta Tseem Ceeb
1.Tsis zog
2.Work bandwidth 45 ~ 1050MHz
3.Qhov Qib Tshaj Tawm=68dBμV (Pin=-1dBm)
Technichal Tsis Muaj
| Optic feature | Chav Nyob | Qhov ntsuas | Txhawb Ntxiv | |
| Tsis muaj nuj nqi | CATV ua haujlwm wavelength | nm | 1260~1620 | SR100, SR100F |
| 1540~1563 | SR100-WF, SR100F-WF, SR100-WD | |||
| Txo qhov yoj yoj | nm | 1310~1490 | SR100-WD | |
| Channel Ua Cais | dB | ≥40 | 1550nm& 1490nm | |
| Teb | A/W | ≥0.85 | 1310nm | |
| ≥0.9 | 1550nm | |||
| Tau Txais Lub Hwjchim | dBm | +2~-14 | ||
| Optical xa poob | dB | ≥55 | ||
| Optical fiber txuas | SC / APC | |||
| RF parameter | Ua haujlwm bandwidth | MHz | 45~1050 | |
| Rau cov zis theem | dBμV | GG gt; 68 | Cov TV (pin=-1dBm) | |
| Rov poob | dB | ≥14 | 47 ~ {862 MHz | |
| Tsim tawm impedance | Ω | 75 | ||
| Rau cov chaw nres nkoj naj npawb | 1 | |||
| RF khi-hauv | F-poj niam | |||
| General yam ntxwv | Ua haujlwm temp | ℃ | -20~+55 | |
| Cia temp | ℃ | -40~+85 | ||
| Ua haujlwm temp tus txheeb ze | ℃ | 5~95 |
Tuam txhab profile
Cov FAQ
Lub Sijhawm Ua
Feem ntau, yog tias muaj' s Tshuag, peb xa cov khoom hauv 3 ~ 5 hnub ua haujlwm tom qab tso nyiaj tau txais kev pom zoo. Yog tias nws tawm hauv cov khoom, lub sijhawm txhuas yuav nyob ntawm.
Kev Pab OEM
Yog lawm. Yog tias muaj qee qhov kev txiav txim kom muaj nuj nqis, peb tuaj yeem ua OEM suav nrog kev luam ntawv, logo, thiab tus qauv customized rau koj.
Warranty Yam Khoom
1310 nm optical transmitter yog them los ntawm2YOO Txwv Warranty, peb muab nws cov neeg siv tag nrho lub neej dawb cov kev txhawb nqa. Yog tias kev tiv thaiv tag sijhawm, kev pabcuam kho tsuas yog them feem (yog xav tau).
Qhov kev lav zoo tsis yog lub luag haujlwm rau cov uas tawg los ntawm kev ua phem lossis kho nrog rau lwm cov npe.
CEEB TOOM: peb donotassume lub luag haujlwm rau kev puas tsuaj los ntawm kev tsis zoo ntim ntawm cov xa rov qab (s).
Yog tias koj txaus siab thiab xav tau cov ntaub ntawv tshiab tshaj plaws txog qhov noPassive Optical Receiver Nrog WDM,thov hu rau:
Email / Skype: softel12@softel-optic.com (Helena Chen)
WhatsApp / Kab: + 86 184 5798 0817 (Helena Chen)
Cim npe nrov: passive optical receiver nrog wdm, Tuam Tshoj, tuam ntxhab, lwm tus muag khoom, Hoobkas, lag luam wholesale
