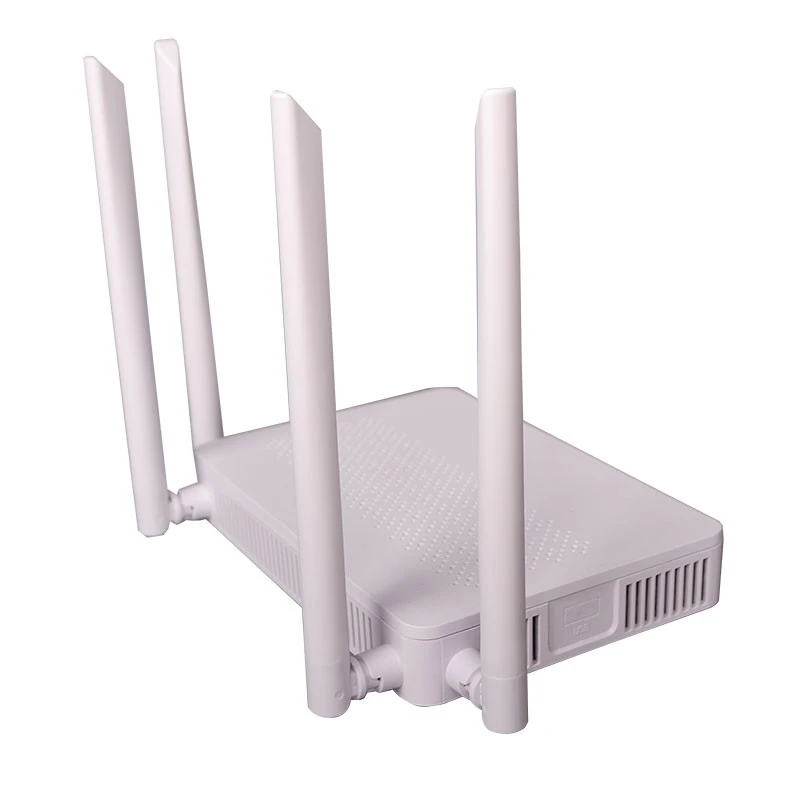

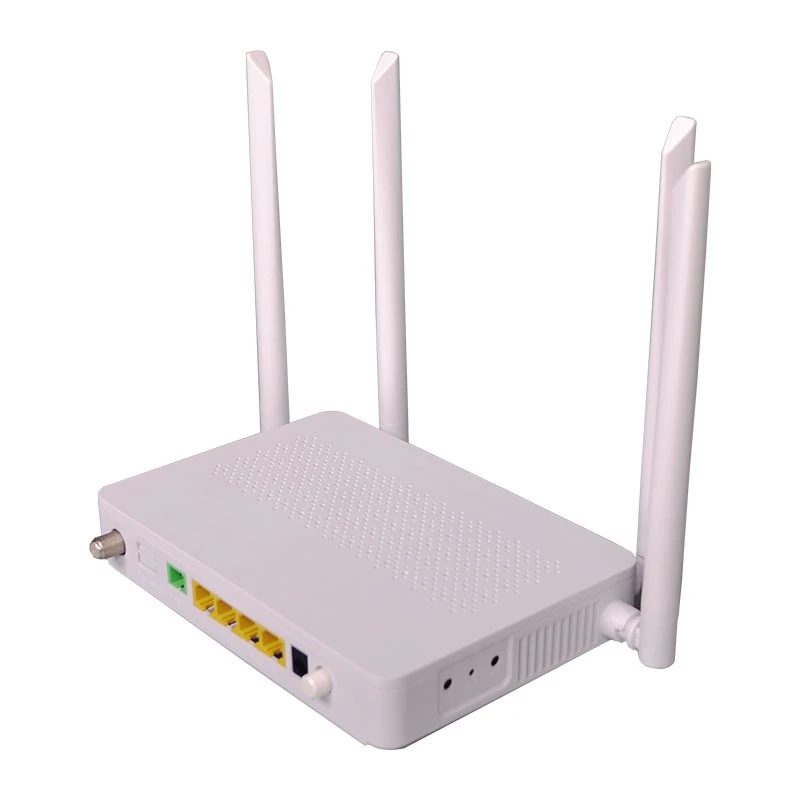

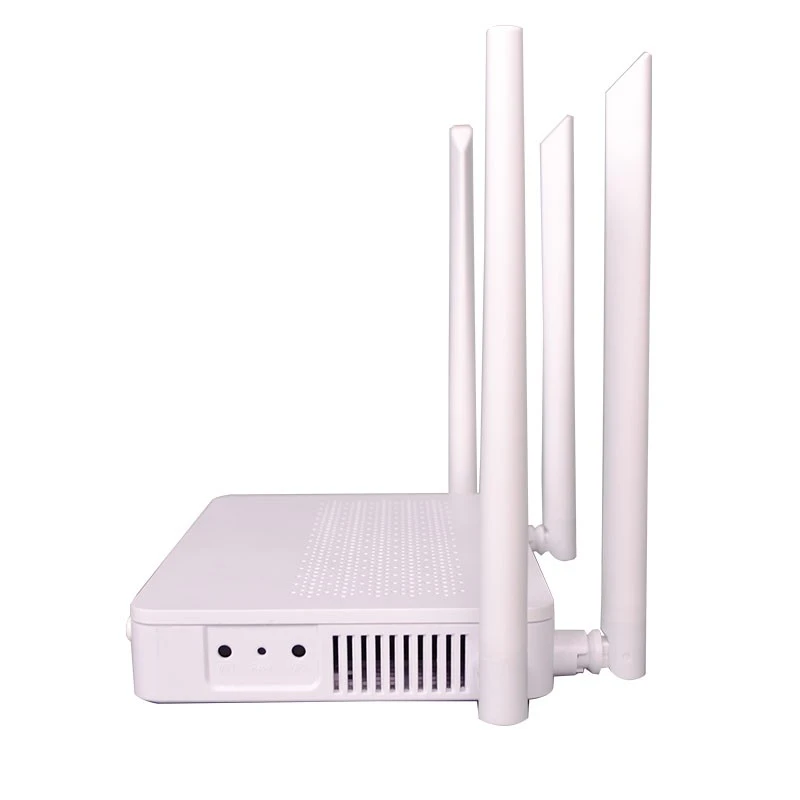

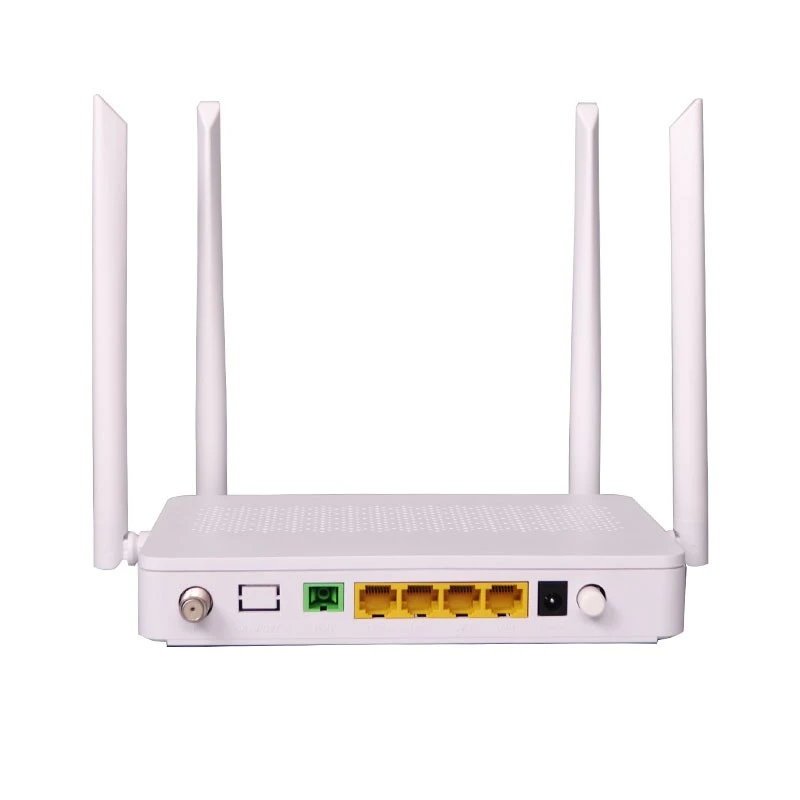

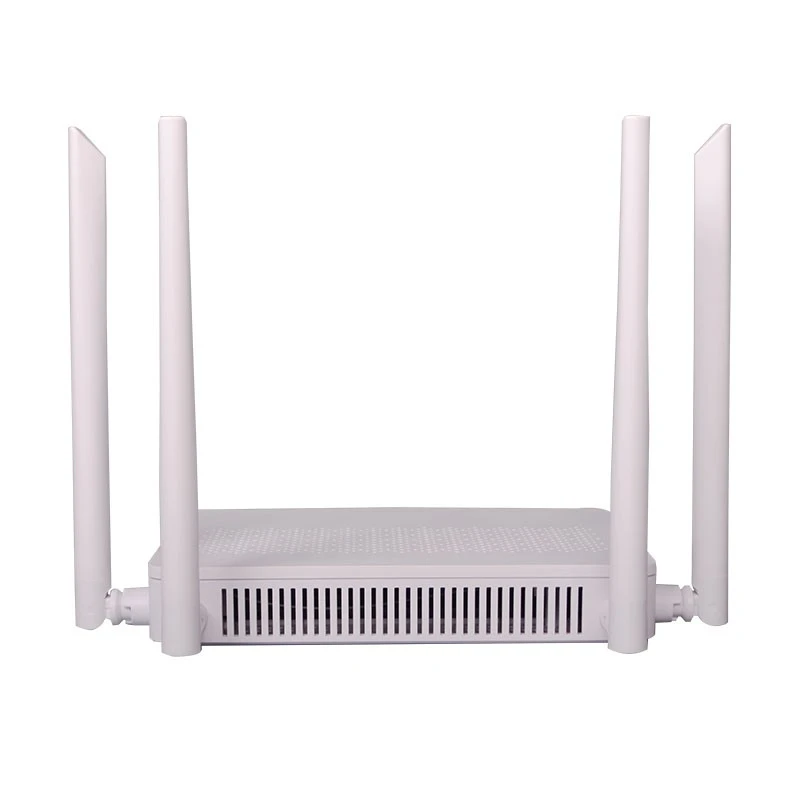

Dual Band XPON ONT
1. Txheej txheem cej luam
ONT-4GE-RFDW tau tsim los rau kev taw qhia rau ntau qhov kev pabcuam kev sib koom ua ke network raws li cov khoom siv kho qhov muag network, uas yog rau XPON HGU davhlau ya nyob twg rau FTTH/O qhov xwm txheej.
Nws teeb tsa plaub qhov chaw nres nkoj 10/100/1000Mbps, WiFi (2.4G+5G) chaw nres nkoj thiab RF interface uas muab kev pabcuam siab -cov ntaub ntawv ceev thiab siab- cov kev pabcuam video zoo rau cov neeg siv.
Hardware parameters
|
Dimension |
220mm x 150mm x 32mm (tsis muaj kav hlau txais xov) |
|
Qhov hnyav |
Kwv yees li 310 g |
|
Ua haujlwm qhov kub thiab txias |
0℃-+40 degree |
|
Ua hauj lwm ib puag ncig humidity |
5% RH-95% RH, tsis-condensing |
|
Fais fab adapter input theem |
90V-270V AC, 50/60Hz |
|
Cov khoom siv hluav taws xob |
11V-14V DC, 1 A |
|
Kev siv hluav taws xob zoo li qub |
7.5 W |
|
Kev siv hluav taws xob siab tshaj plaws |
18 W |
|
Interfaces |
1RF+4GE+Wi-Fi(2.4G+5G) |
|
qhov taw qhia teeb |
POWER / PON / LOS / LAN / WLAN / RF |
Icov parameters
|
PON interface |
ClassB+ -27dBm receiver rhiab heev Wavelength: sab sauv 1310nm, downstream 1490nm Txhawb WBF Daim ntawv qhia yooj yim ntawm GEMPort thiab TCONT Authentication method: SN/password/LOID(GPON) Ob -txoj kev FEC (Forwarderrorcorrection) Txhawb DBA rau SRand NSR |
|
Ethernet chaw nres nkoj |
Stripping raws li VLAN Tag / Tag rau Ethernet chaw nres nkoj. 1:1VLAN/N:1VLAN/VLAN Pass-los ntawm QinQVLAN MACaddress txwv MACaddress kev kawm |
|
WLAN |
IEEE 802.11b/g/n 2 × 2 MIMO Kav hlau txais xov nce: 5dBi WMM(Wi{0}}Fi multimedia) Ntau SSID ntau WPS |
|
RF interface |
Txhawb tus qauv RF interfaces Txhawb hd cov ntaub ntawv streaming |
5G Parameters
|
Network txheem |
IEEE 802.11 ua |
|
Kav hlau txais xov |
2T2R, txhawb MU-MIMO |
|
Kev txhawb siab tshaj plaws |
20M: 173.3Mbps 40M: 400Mps 80M: 866.7Mbps |
|
Cov ntaub ntawv modulation hom |
BPSK QPSK 16QAM 64QAM 256QAM |
|
Cov zis siab tshaj plaws |
Tsawg dua lossis sib npaug li 20dBm |
|
Hom channel (customizable) |
36,40,44,48,52,56,60,64,100,104, 108,112,116,120 ,124,128,132,136, 140,144,149,153,157,161,165 |
|
Hom encryption |
WPA, WPA2, WPA/WPA2, WEP, Tsis muaj |
|
Hom encryption |
AES, TSI |
Cov ntaub ntawv muaj nuj nqi
Kev txawj ntse sib txuas
WiFi kev txawj ntse kev pab them nqi
Txhawb hd cov ntaub ntawv streaming
Ib qhov chaw nres nkoj twg
Niam txiv tswj
L2/L3(IPv4) re- kis tau tus mob: 1G rau pem hauv ntej, 2G rov qab
Cov khoom rau peb txheej
PPPoE / static IP / DHCP chaw nyob nkag
NAS/NAPT
ALG, NPE
DDNS/DNS server/DNS tus neeg siv khoom
IPv6/IPv4 dual- pawg, DS-Lite
Static route/default route
Multicast
IGMP v2/v3snooping
IGMP v2 proxy
IGMP v3 proxy
MLD v1/v2snooping
Qos
Ethernet chaw nres nkoj ceev txwv
802.1p ua
SP/WRR/SP+WRR
Tshaj tawm xov xwm ceev txwv
Skev nyab xeeb
SPIfirewall
MAC/IP/URL chaw nyob filtering
O&M
OMCI/WebUI/TR069
Kev txuag hluav taws xob
Qhov taw qhia lub teeb lub zog-ntau
Lub sijhawm hloov
