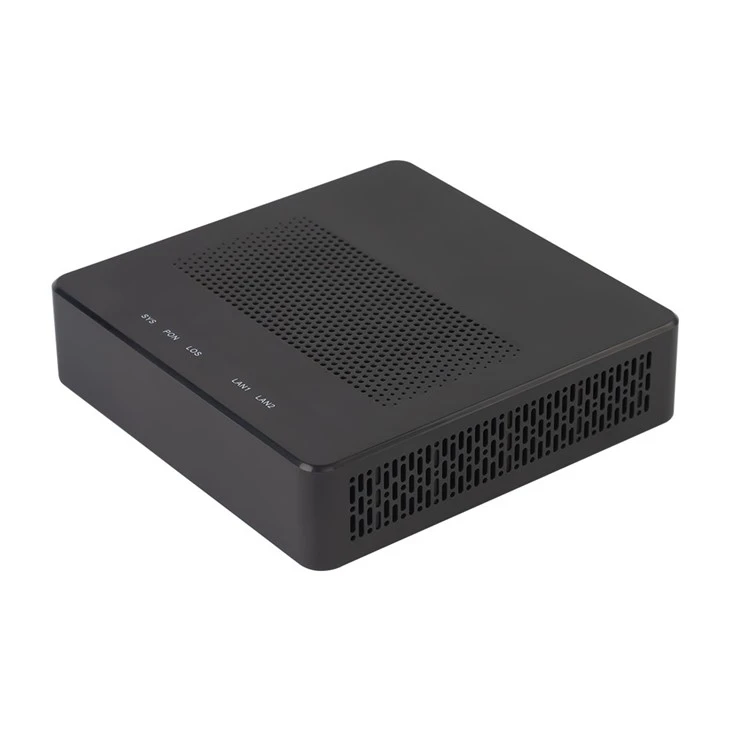

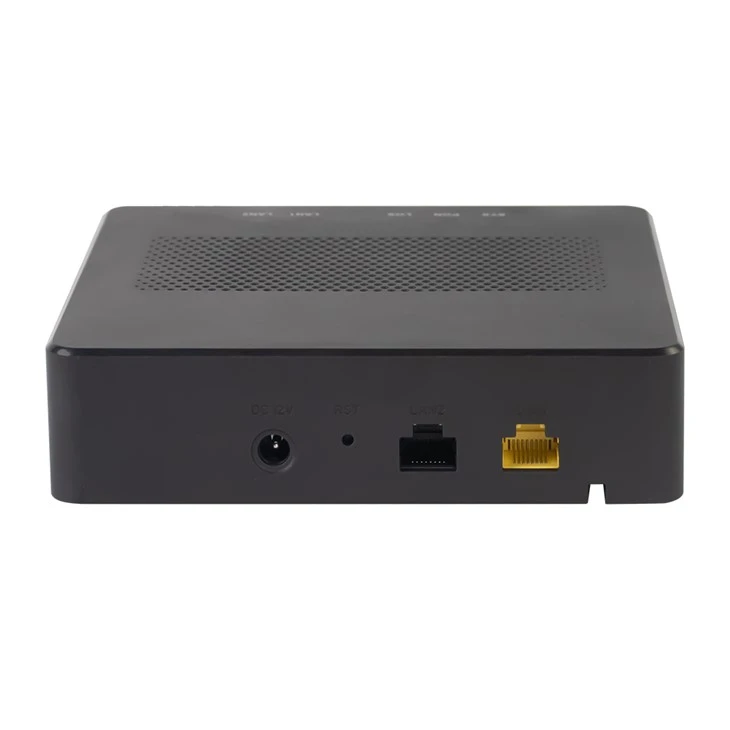

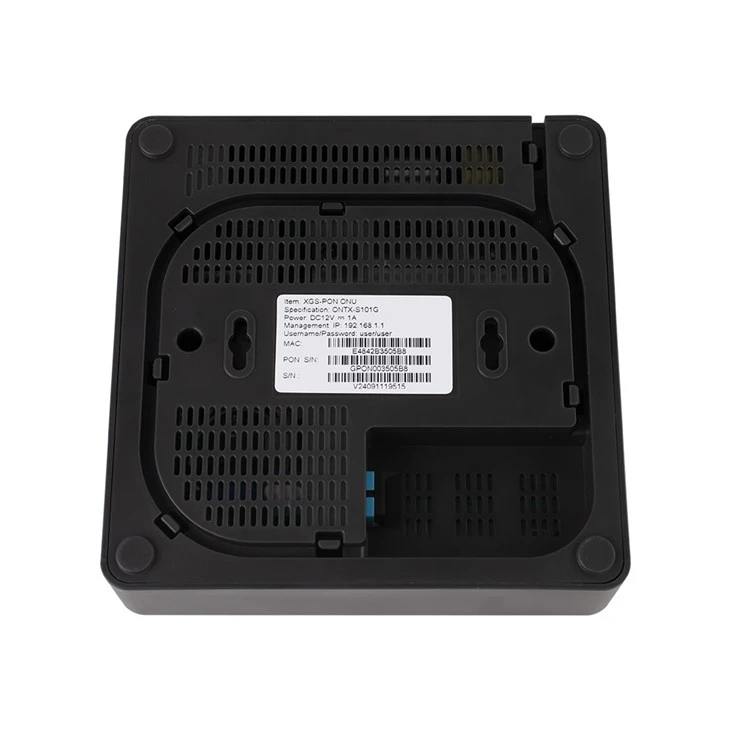

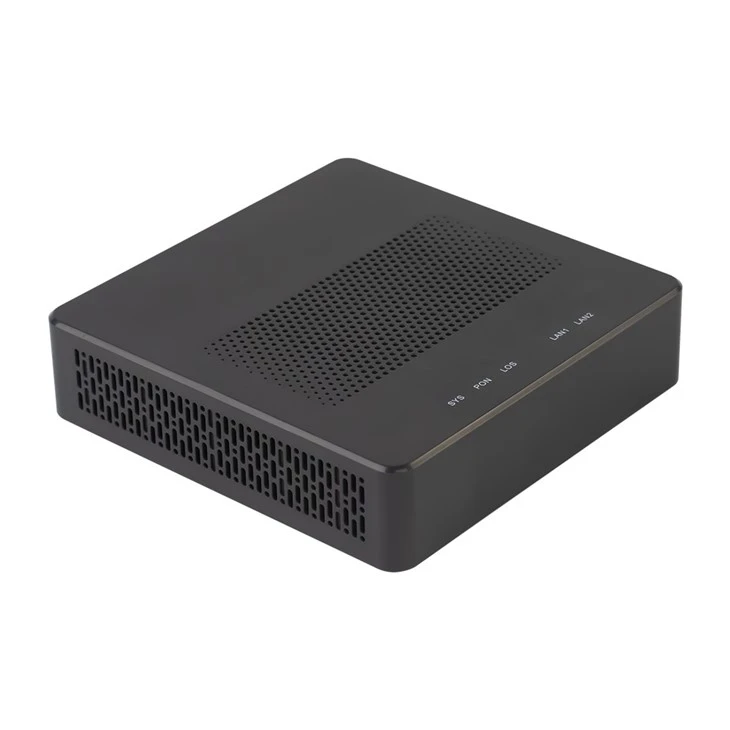

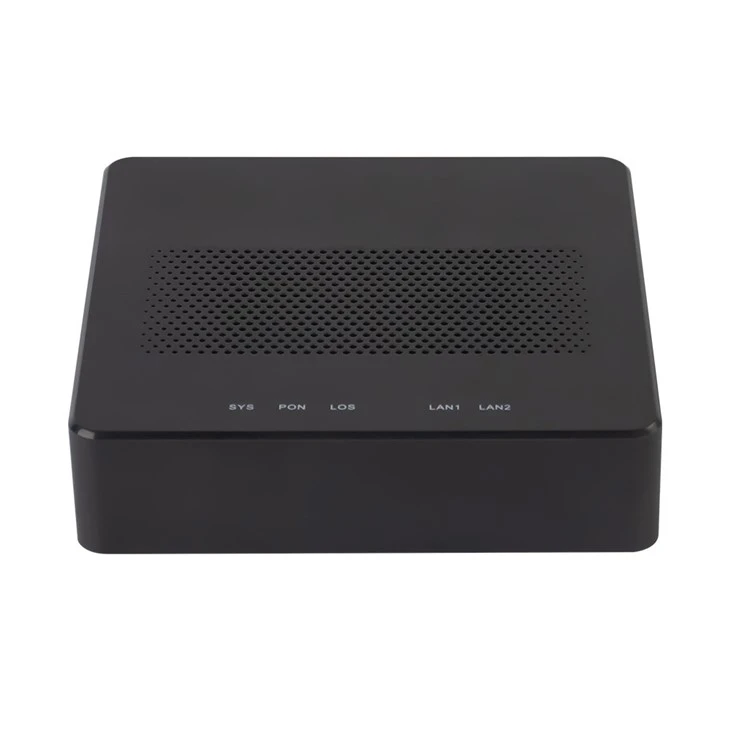

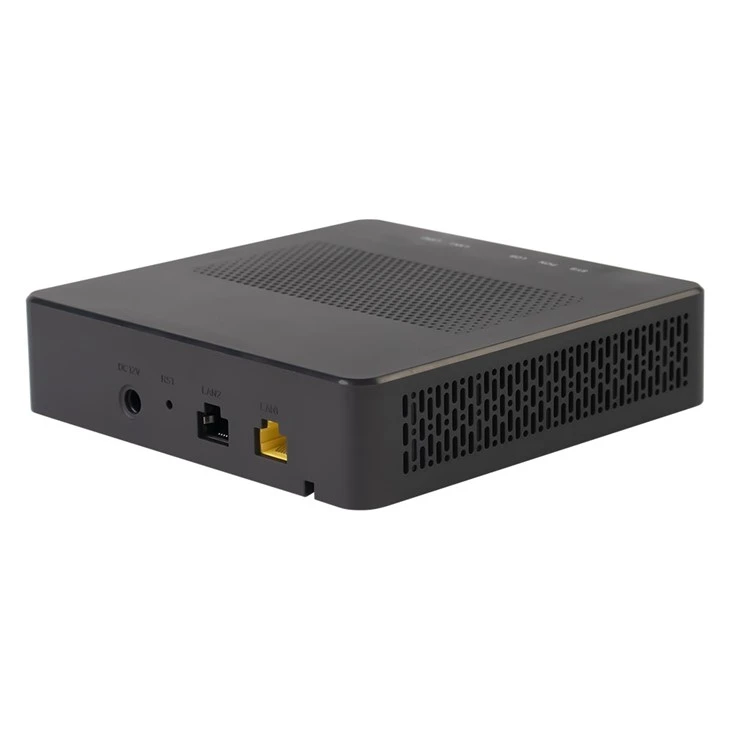

10G Pon ONU
10 G PON ONU10G PON+1*10GE+1*GE SFU ONU
ONTX-S101G txhawb nqa ob hom xws li XG-PON / XGS-PON, muab ntau tus nqi Ethernet ports ntawm 10GE / GE. Nrog rau kev muaj peev xwm ua tau raws li kev xav tau ntawm kev lag luam yooj yim xws li 4K / 8K thiab VR, cov cuab yeej no zoo meej rau cov neeg siv hauv tsev thiab kev lag luam uas xav tau qhov zoo tshaj plaws.
Ib qho ntawm cov yam ntxwv tseem ceeb ntawm ONTX-S101G yog nws lub tais-mounted fiber ntau fiber ntau tsim. Qhov no tso cai rau nws muab tso rau ntawm lub desktop lossis phab ntsa-mounted, yoog tau yooj yim rau ntau yam xwm txheej. Tsis tas li ntawd, cov cuab yeej no boasts ib qho yooj yim thiab haumxeeb tsim, ua rau nws yooj yim rau siv thiab khiav lag luam.
Yog li, txawm tias koj tab tom nrhiav kwj 4K / 8K cov yeeb yaj kiab lossis coj koj VR gaming mus rau qib tom ntej, ONTX-S101G yog qhov kev daws teeb meem zoo tshaj. Nrog nws 10G PON ONU thev naus laus zis, koj tuaj yeem txaus siab rau seamless, ultra-high-speed Internet kev sib txuas zoo li tsis tau muaj dua.
Ntsiab nta
10G PON Solution High Performance Chipset
10GE High Speed Port
IPv4 / IPv6 Dual Stack

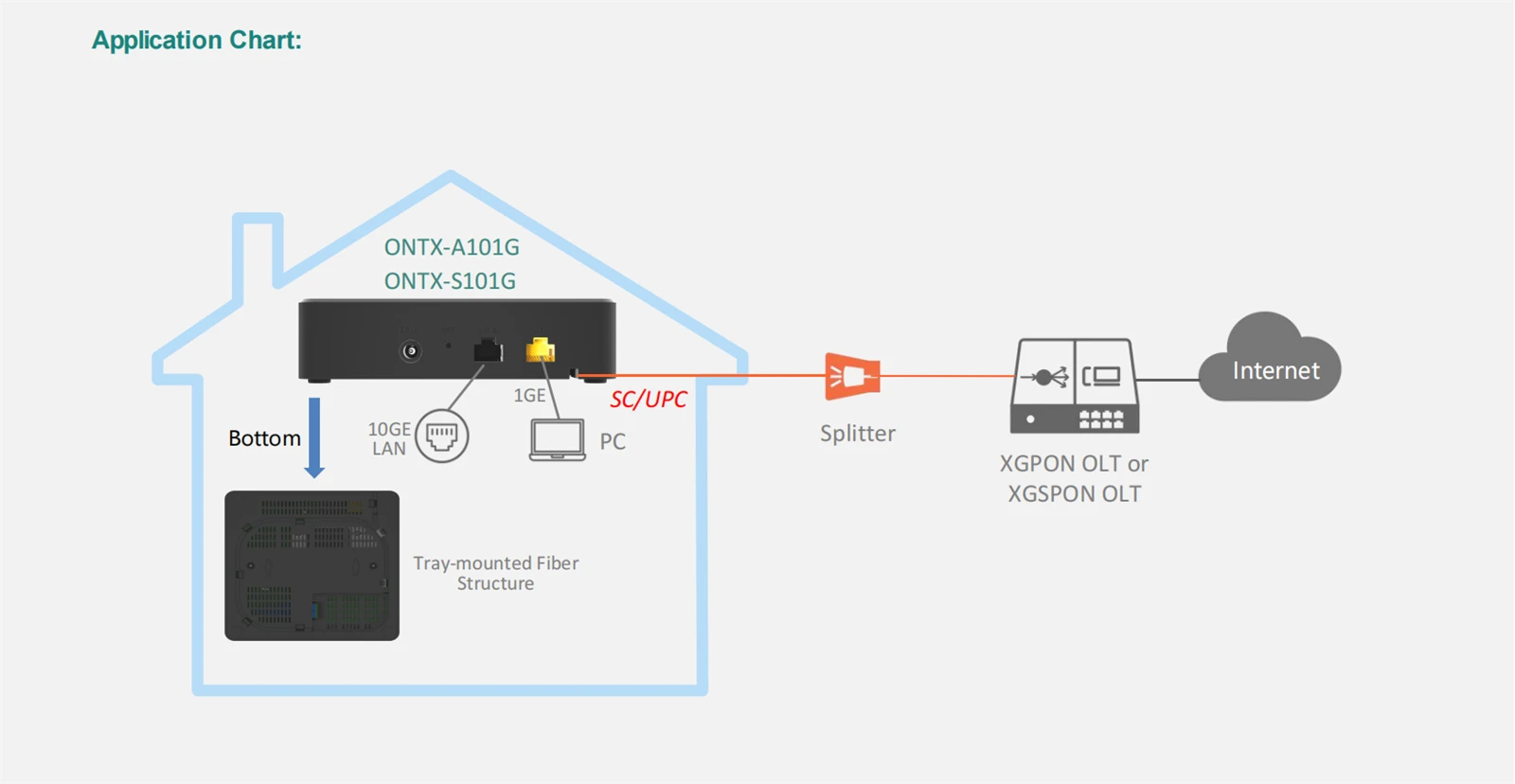

Lub tais-mounted Fiber Structure
1.Technical Specifications
| Hardware parameters | |
|
Dimension |
140mm * 140mm * 34.5mm (L * W * H) |
|
Net nyhav |
316g |
|
Kev ua haujlwm |
Ua haujlwm kub: -10 ~ +55.C Kev khiav hauj lwm av noo: 5 ~ 95% (tsis condensed) |
|
Kev khaws cia |
Cia temp: -40 ~ +70.C Cia cov av noo: 5 ~ 95% (tsis condensed) |
|
Fais fab adapter |
12V/1A |
|
Fais fab mov |
12W |
|
Interface |
1 * 10GE+1*GE |
|
Qhov taw qhia |
SYS, PON, LOS, LAN1, LAN2 |
|
Interface parameter |
|
|
PON interface |
• SC ib hom, SC/UPC connector • TX optical zog: 6dBm • RX rhiab heev: -28dBm • Overload optical zog: -8dBm • kis nrug deb: 20km • Wavelength: • XG(S)-PON:DS 1577nm/US 1270nm |
|
10G PON txheej |
• ITU-T G.987(XG-PON) • ITU-T G.9807. 1 (XGS-PON) |
|
Tus neeg siv interface |
• 1 * 10GE, Auto-negotiation, RJ45 chaw nres nkoj • 1 * GE, Nws pib-kev sib tham, RJ45 chaw nres nkoj |
| Cov ntaub ntawv muaj nuj nqi | |
|
Internet kev sib txuas |
• Txhawb nqa Choj hom |
|
Tswb |
• Txhawb nqa Tuag Gasp • Txhawb nqa Chaw nres nkoj Loop Detect |
|
LAN |
• Txhawb nqa Chaw nres nkoj tus nqi txwv • Txhawb nqa Loop kuaj pom • Txhawb nqa Ntws tswj • Txhawb nqa Cua daj tswj |
|
VLAN |
• Txhawb nqa VLAN tag hom • Txhawb nqa VLAN pob tshab hom • Txhawb nqa VLAN lub cev hom • Txhawb nqa VLAN hybrid hom |
|
Multicast |
• IGMPv1/v2/Snooping • Txhawb nqa multicast raws tu qauv VLAN thiabmulticast cov ntaub ntawv stripphauv • Txhawb nqa multicast txhais muaj nuj nqi |
|
QoS |
• Txhawb nqa WRR ,SP+WRR |
|
O&M |
• WEB/TELNET/SSH/OMCI • Txhawb nqa tus kheej OMCI raws tu qauv thiab Kev koom ua ke network kev tswj hwm ntawm VSOL OLT |
|
Firewall |
• Txhawb nqa IP chaw nyob thiab chaw nres nkoj limmuaj nuj nqi |
|
Lwm yam |
• Txhawb nqa log muaj nuj nqi |
Daim ntawv xaj
|
Khoom npe |
Product Description |
Khoom siv |
|
ONTX-A101G |
1*XG-PON+1*10GE+1*GE |
AC-DC fais fab mov: DC12V / 1A |
|
ONTX-S101G |
1*XGS-PON+1*10GE+1*GE |
(Hom: SOFTEL) tau tsim nyob rau xyoo 2005, uas nyob hauv HangzhouHi-Tech Development Zone. Kev ua tau zoo ntawm kev tshaj tawm niaj hnub thiab
optic fiber kev sib txuas lus tshuab, peb tshwj xeeb hauv R&D ntawm CATV, xPON, thiab IPTVsystem khoom. Ua ib lub chaw tsim khoom ntawm HFC broadband thiab optic kis tau tus mob, Softel muaj zog R & D muaj peev xwm nyob rau hauv daim teb no.
Peb muaj ntau tshaj 100 tus neeg ua haujlwm uas 10% ntawm cov kws tshaj lij laus. Nrog ntau tshaj 1, 000 square metres cov qauv tsim cov kab sib dhos, peb muaj cov txheej txheem QC nruj. Txhua chav tsev ntawm peb cov khoom yuav dhau los ntawm 3 txheej QC txheej txheem, tshuaj xyuas cov khoom ua ntej kev tsim khoom, kev ruaj ntseg, thiab kev ntsuas kev ua tau zoo tom qab tsim khoom, ntim khoom ua ntej xa khoom.
Feem ntau ntawm peb cov khoom raug xa tawm mus rau South America, Russia, thiab North European lub teb chaws. Tam sim no, Softel muaj cov chaw ua haujlwm hauv Mexico thiab yuav tshaj tawm lwm lub chaw haujlwm hauv Colombia, txuas ntxiv muab rau ntau tus neeg sawv cev.integrated cov tswv lag luam, thiab cov neeg tsim khoom siv thoob plaws lub worid.Los ntawm kev sib tw ua lag luam thoob ntiaj teb hauv kev ntseeg siab, tag nrho peb cov neeg ua haujlwm xav tias loj heev. kev ua tiav &. ua hauj lwm nyob rau hauv hnyav lub luag hauj lwm. Tsis tas li ntawd, peb zoo siab heev los muab peb cov neeg siv khoom muaj txiaj ntsig nrog peb cov khoom zoo, kev ntseeg siab, kev ua haujlwm siab, thiab cov khoom sib tw.
