Qhov Fiber Tester Mini OTDR no ua rau pom kev loj hlob mus rau tom ntej hauv kev ntsuas fiber ntau thiab kev ua haujlwm tau zoo.

Xa kev nug

Khoom Taw qhia

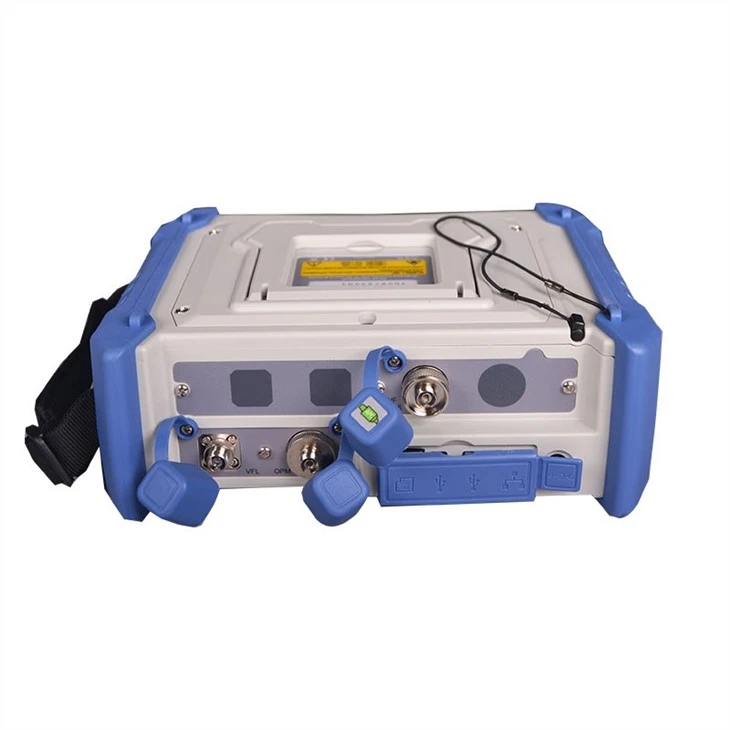

Fiber Tester Mini OTDR

Prodcut Zaub

Fiber Tester Mini OTDR

Kov lub vijtsam tswj, hloov chaw, thiab kev tshuaj xyuas lub sijhawm tiag tiag tab sis ob peb yam tshiab uas ua rau OTDR tshiab qhov ntsuas qhov ntsuas qhov ntsuas qhov zoo tshaj plaws los txheeb xyuas Kev nkag mus rau tes hauj lwm, kev tsim kho, kev txhim kho txij nkawm& kev lees paub ntawm FTTH tes hauj lwm. Ntau yam qauv muaj los npog ntau qhov kev thov thiab xav tau, ob lossis ntau lub nthwv dej, ntawm 28 txog 39dB.

Nta

• 7 ", 800x480 LCD kov lub vijtsam tso lub zog thiab yooj yim ntawm koj lub ntsis ntiv tes • 0.8m qhov xwm txheej tuag, thaj tsam 3m ua rau lub ntsej muag tuag; kev ua haujlwm luv luv zoo heev

• Kev nthuav dav dav dav (28 - 45dB)

• Min. 5cm kev daws teeb meem

• Kev txawj ntse txheeb xyuas cov xwm txheej

• Zoo heev ruaj khov thiab rov ua dua

•" FiberPass" ntse tsom xam

• Ntau yam kev xaiv rau kev ntsuas ntsuas, suav nrog VFL; lub ntsuas hluav taws xob; teeb pom kev zoo; kho qhov muag tsom iav; QAManalysismodule

• Ua kom tiav cov neeg siv cov ntaub ntawv chaw nres nkoj; txhawb LAN, USB, SD,& ntau ntxiv

• Cov txiaj ntsig tau txhawb nqa ntau yam kev txheeb xyuas lub luag haujlwm, xws li ORL, 4pt, txhais cov ntsiab lus

Daim ntawv thov

•Kev tsim kho, kev xa tawm, kev saib xyuas thiab kev lees paub ntawm FTTHnqa.

•Kev tsim kho, kev xa tawm, kev saib xyuas thiab kev lees paub ntawm LAN rawsfiber ntau.

•Kev tsim kho, kev xa tawm, kev saib xyuas thiab kev lees paub ntawm MAN rawsfiber ntau.

Kev qhia tshwj xeeb

Qauv	UA 3100A	AE3100B	AE3100C	AE3100D
General Parameter
Wavelength (nm)	1310/1550	1310/1550/1625	1310/1550/1650	1310/1550/1490
Wavelength raug (nm)	±20
Dynamic (dB)	30/28	34/32	36/34	39/37
Txheej Txheem Tuag Zaum (m)	≤1.5m	≤1.5m	≤0.8m
Attenuation Dead Zone (m)	≤6m	≤5m	≤4m	≤4m
Ntau Yam	100m, 400m, 1.5km, 3km, 6km, 12km, 25km, 50km, 100km, 200km, 400km
Kev Txiav Txim Siab (m)	0.05 ~ 12.8
Cov Qauv Ntsuas (m)	256000
Qhov Ncaj Ncees (m)	± (0.75m {{4}} 0.005 % x nrug + Kev Txiav Txim Siab)	± (0.75m {{4}} 0.001 % x nrug deb + Sampling Resolution)
Poob qhov pib	0.01dB
Kev daws teeb meem poob	0.001 dB ib
Pulse Dav	3ns, 5ns, 10 ns, 30 ns, 50 ns, 100 ns, 200 ns, 500 ns, 1µs, 2µs, 5µs, 10µs, 20µs
Ntsuas Sijhawm Ntau	5s ~ 5min, lub sijhawm tiag tiag
Peev Xwm Nco	& gt; 10,000 OTDR cov cim, xa tawm mus rau USB lossis Khoos phis tawj
Lwm Yam Parameter
Zaub	7 nti (178mm) 800 × 480 dot matrix TFT kov npo
Interface	USB 2.0 × 2 , RJ45 × 1, LAN × 1 (10M/100M), TF × 1 (Max, 64GB)
Roj teeb tus kheej	11 teev ntawm kev ntsuas ntsuas (Max)
Lus	Suav, Lus Askiv, Mev, Portuguese, Fabkis, Lavxias, Italis (German, Kauslim thiab Arabic yog xaiv tau)
Dimension (L × W × D)	206 hli x 171 hli x 75 hli, Nti: 8.11 "x 6.73" x 2.95 "
Qhov hnyav (kg& lbs)	& nws; 2kg lossis< 4.41lb="">
