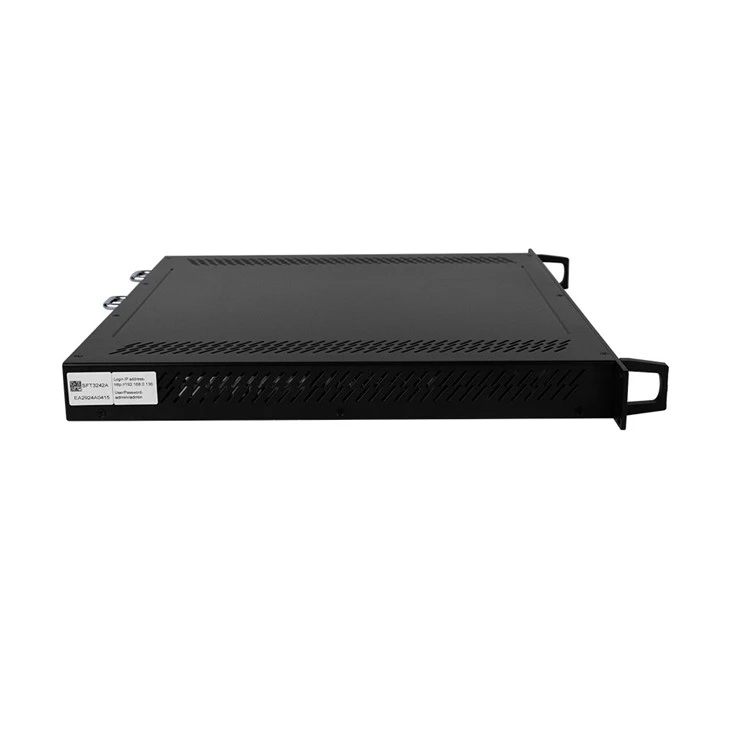

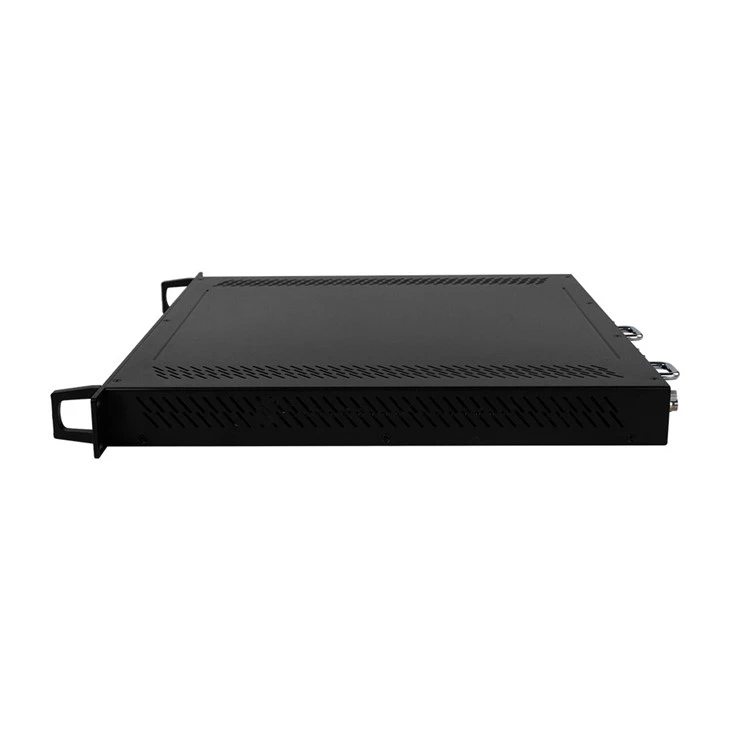

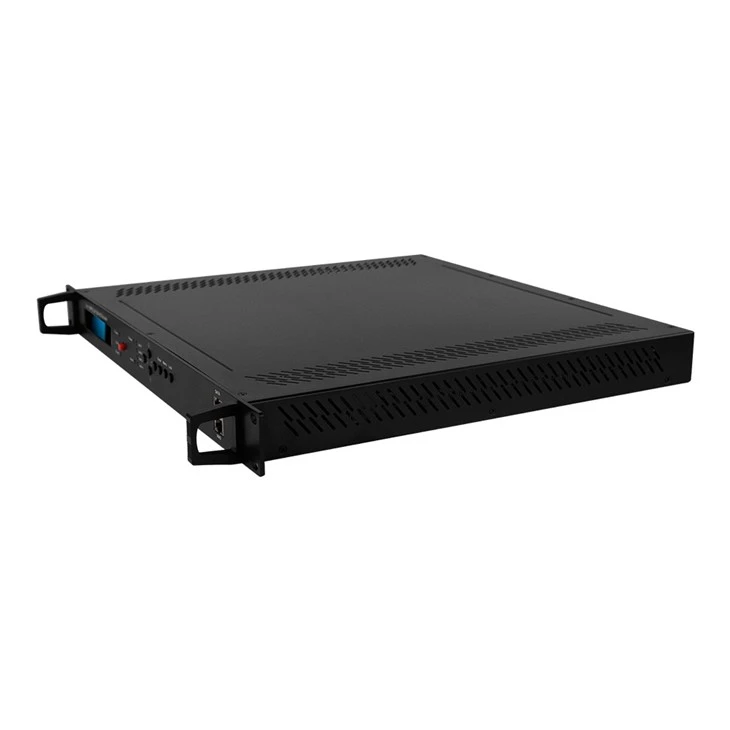

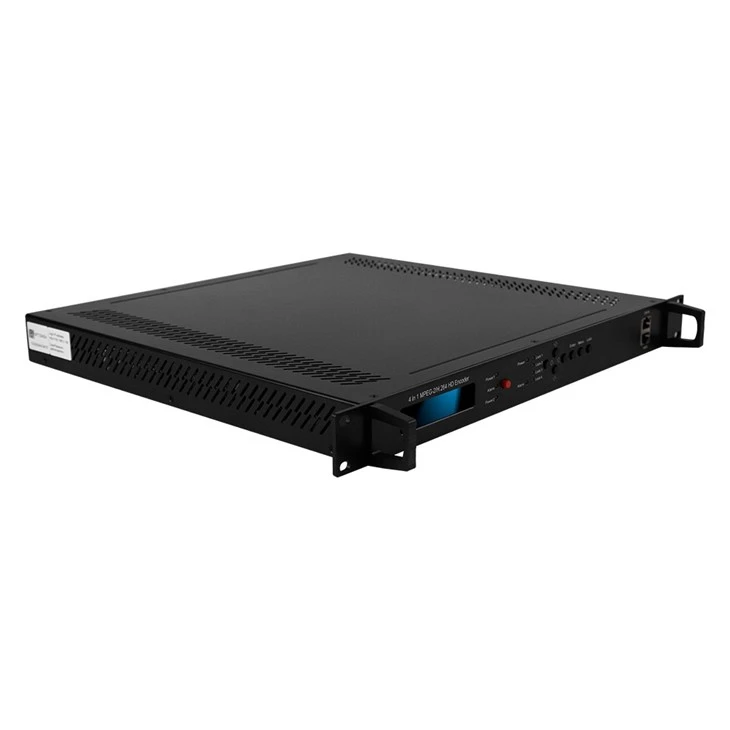

HD-SDI rau IP Encoder
HD-SDI rau IP Encoder
Khoom Qhia

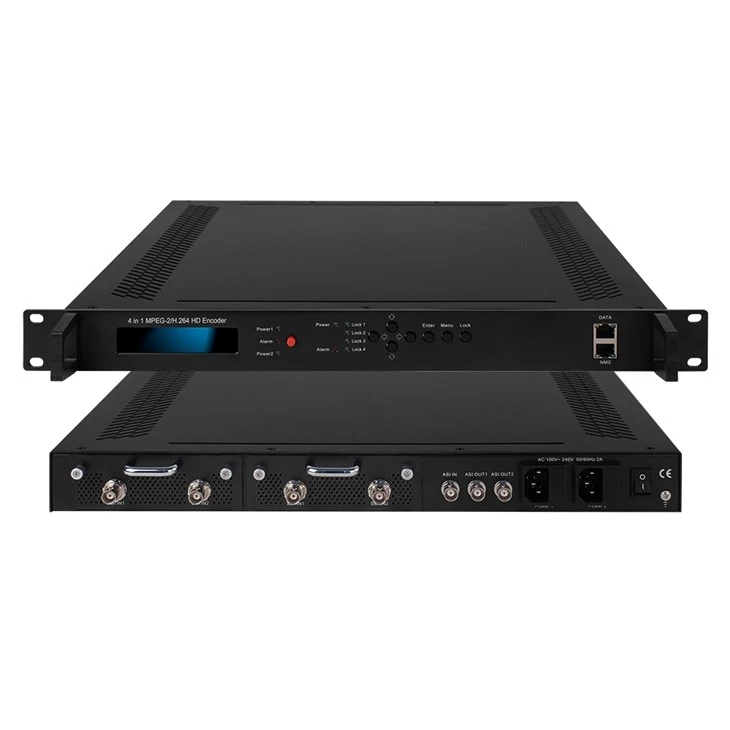

SFT3242A 4-in-1 MPEG2/H.264 HD Encoder yog SOFTEL tshiab tshaj lij HD / SD audio & video encoding ntaus ntawv nrog lub zog ua haujlwm. Nws yog nruab nrog 4 SDI lossis 4 * HDMI inputs txhawb MPEG-2 thiab MPEG-4 AVC/H.264 video encoding thiab MPEG 2, MPEG 2-AAC, MPEG 4-AAC thiab DD AC3 suab encoding. 4 cov kev pabcuam encoded yuav tso tawm los ntawm ASI thiab IP chaw nres nkoj hauv MPTS lossis SPTS, thiab tseem muaj ib qho ASI hauv chaw nres nkoj rau kev rov ua ntau dua.
Nws txais yuav cov khoom siv hauv tub rau khoom-hom qauv tsim uas yooj yim heev rau kev hloov ntawm encoding modules yog tias xav tau.
Cov yam ntxwv tseem ceeb
- Dual fais fab mov
- MPEG2 HD/SD & MPEG4 AVC/H.264 HD/SD video encoding
- MPEG 2, MPEG 2-AAC, MPEG 4-AAC thiab DD AC3 suab encoding
- Txhawb dialog normalization (muaj feem xyuam rau DD AC3)
- 4* SDI inputs lossis 4 * HDMI inputs lossis 2 * SDI + 2* HDMI inputs
- 1*ASI rau re-multiplexing
- Txhawb kev daws teeb meem downscale conversion
- Txhawb CC (kaw kab lus) EIA 608 & EIA 708 & Kab 21 (rau SDI input version nkaus xwb)
- Txhawb Kev Ua Haujlwm Tsis Txaus
- Txhawb PSI / SI kho thiab ntxig
- Txhawb IP null pob ntawv lim
- ASI tso zis raws li daim iav ntawm MPTS lossis SPTS 1-4, IP (MPTS & 4 SPTS) tso zis tshaj UDP, RTP / RTSP

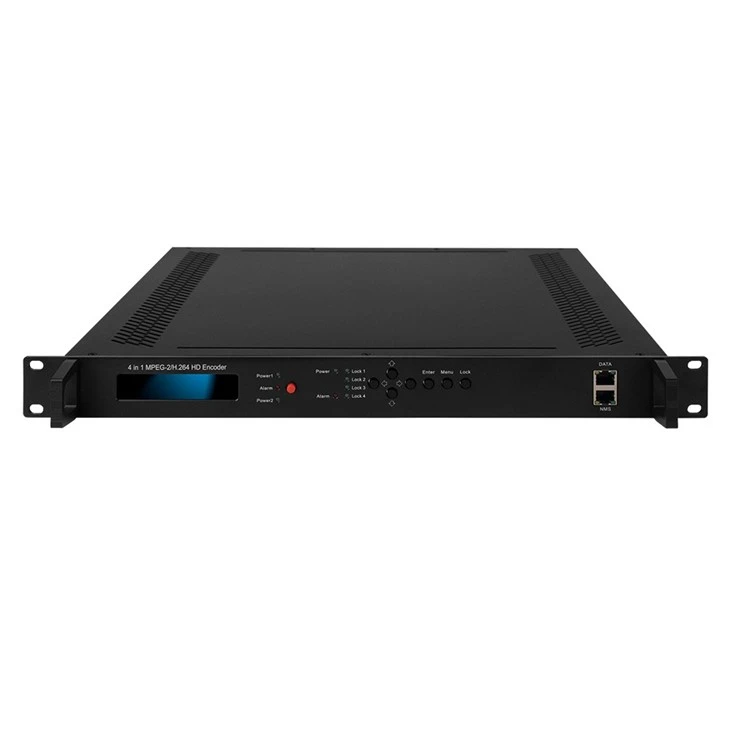

- LCD zaub, tswj chaw taws teeb
- Web-based NMS tswj; Hloov tshiab ntawm lub vev xaib
Technical Specification
Video
|
Encoding |
MPEG2 & MPEG4 AVC/H.264 |
|
Tswv yim |
SDI*4 or HDMI*4 + 1 ASI in |
|
Kev daws teeb meem |
1920*1080_60P, 1920*1080_50P, (-rau MPEG4 AVC/H.264 nkaus xwb) 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P 720*480_60i, 720*576_50i |
|
Txhawb cov khoom daws teeb meem (rau downscale conversion) |
1920*1080_60P, 1920*1080_50P, (-rau MPEG4 AVC/H.264 nkaus xwb) 1440*1080_60i, 1440*1080_50i, 1280*720_60p, 1280*720_50P 720*480_60i, 720*576_50i |
|
Tus nqi qis |
1 ~ 19.5Mbps |
|
Chroma Qauv |
4:2:0 |
|
Aspect Ratio |
16:9, 4:3 |
Suab
|
encoding |
MPEG 2, MPEG2-AAC, MPEG4-AAC, Dolby Digital AC3 (2.0) |
|
|
Dialog Normalization (muaj feem xyuam rau DD AC3 encoding nkaus xwb) |
-31 ~ -1 dB |
|
|
Qauv tus nqi |
48 KHz |
|
|
Tus nqi qis |
64kbps, 96kbps, 128kbps, 192kbps, 256kbps, 320kbps |
|
Qhov system
|
Local interface |
LCD + tswj cov nyees khawm |
|
Kev tswj chaw taws teeb |
Web NMS |
|
Low Delay Mode |
Ib txwm, hom 1, hom 2, Phau ntawv |
|
tso zis |

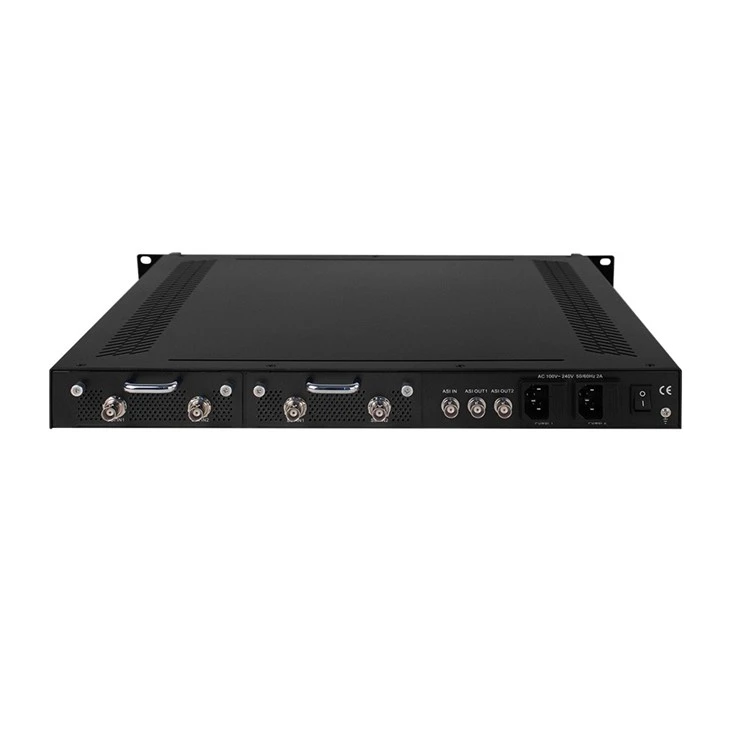

2 * ASI tawm (BNC hom, daim iav ports / tib TS); IP (1 MPTS & 4 SPTS) dhau UDP, RTP / RTSP (RJ45, 1000M) |
|
NMS interface |
RJ45, 100 M |
|
Lus |
Lus Askiv |
General
|
Hwj chim |
AC 100V ~ 240V |
|
Qhov ntev |
482 * 400 * 44mm |
|
Ua haujlwm kub |
0 ~ 45 degree |
Kev sib piv
|
|
Tus qub Version |
Tam sim no Version (V2) |
|
ASI in |
Tsis muaj |
Yog lawm |
|
Tus nqi qis hom |
CBR / VBR xaiv |
CBR |
|
Audio Group/Pair option-SDI |
Tsis muaj |
Yog lawm |
|
Video Bit Rate |
0.5 ~ 19.5Mbps rau H.264 encoding 1 ~ 19.5Mbps rau MPEG-2 encoding |
1 ~ 19.5Mbps |
|
Tsawg qeeb |
Ib txwm / Hom 1 / Hom 2 |
Ib txwm / Hom 1 / Hom 2 / Phau ntawv |
|
Cim Encoding xaiv |
Tsis muaj |
Yog lawm |
|
Output Protocol |
UDP, RTP |
UDP, RTP/RTSP |
|
DATA Chaw nres nkoj |
100M chaw nres nkoj |
1000M chaw nres nkoj |
Tuam txhab Profile
Packing & Shipping
FAQ
1. Lub sijhawm ua haujlwm
Feem ntau, yog tias muaj Tshuag, peb xa cov khoom tsis pub dhau 3 ~ 5 hnub ua haujlwm tom qab qhov tso nyiaj tau lees paub. Yog tias nws tawm ntawm Tshuag, lub sijhawm ua haujlwm nyob ntawm.
2. Kev xa khoom
Thaum lub pob me me, peb ib txwm xaiv FedEx, DHL, TNT, thiab UPS thiab lwm yam, thaum cov khoom muaj qhov hnyav thiab ntim, peb xav kom siv huab cua los yog hiav txwv xa khoom.
3. OEM
Yog lawm. Yog tias muaj qee qhov kev txiav txim kom muaj nuj nqis, peb tuaj yeem ua OEM suav nrog luam ntawv, logo, thiab cov qauv tsim rau koj.
4. Warranty
Muaj 12 lub hlis rau lub warranty.
Thaum lub warranty tsis muaj lub luag haujlwm rau cov tawg los ntawm kev ua phem lossis hloov kho nrog lwm hom.
