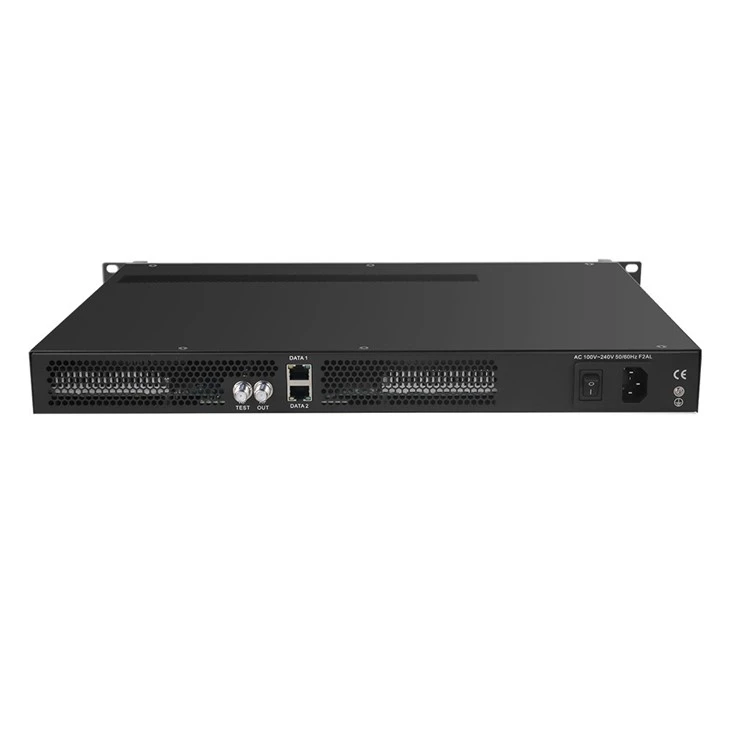

Softel IP Rau Analog Modulator
Softel IP rau Analog modulator SFT2500C
Nrog nws cov yam ntxwv siab heev thiab kev tsim qauv tshiab, 32-channel IP rau analogue modulator muab cov kev daws teeb meem zoo rau cov lag luam thiab cov koom haum tab tom nrhiav kom nthuav dav lawv txoj kev sib txuas lus. Cov thev naus laus zis tshiab no pab cov lag luam txhim kho kev sib txuas lus zoo, txhim kho cov txheej txheem ua haujlwm, thiab ua kom muaj txiaj ntsig thiab ua tau zoo.
Siv thev naus laus zis IP tshiab, 32-channel IP rau analogue modulator hloov cov teeb liab los ntawm IP lub koob yees duab, khoos phis tawj thiab lwm yam khoom siv rau hauv cov khoom siv hluav taws xob zoo uas tuaj yeem xa tau yooj yim tshaj li kev sib txuas lus ib txwm muaj. Yog li ntawd, nws yog ib qho kev daws teeb meem zoo tshaj plaws rau cov lag luam tab tom nrhiav kev sib koom ua ke cov digital video soj ntsuam zoo rau hauv lawv cov analogue infrastructure uas twb muaj lawm.
Nrog nws yooj yim installation thiab txheej txheem teeb tsa yooj yim, 32-channel IP-rau-analogue modulator yog qhov kev daws teeb meem zoo tshaj plaws rau cov neeg siv kom tau txais txiaj ntsig ntawm cov txiaj ntsig ntawm kev sib txuas lus digital yam tsis tas yuav hloov lawv cov qauv analogue uas twb muaj lawm. Cov thev naus laus zis kuj tseem muaj peev xwm ua tau thiab hloov tau yooj yim, tso cai rau cov neeg siv tau yooj yim ntxiv cov channel ntxiv thiab cov khoom siv raws li lawv pom zoo.
Txhais nrog www.DeepL.com/Translator (dawb version)
NTA ntawm Softel IP rau Analog modulator
-2 GE chaw nres nkoj (max 64 IP input tshaj MPTS/SPTS), Max 840Mbps rau txhua qhov GE input
-Support HEVC/H.265, H.264/AVC, MPEG-2 TS Decapsulation
-Kev ua tiav txog li 32 IP multicast pawg ntawm Gigabit Ethernet MPEG TS mus txog 32 tus qauv PAL lossis NTSC lossis SECAM TV program (SECAM tab tom txhim kho)
-32 cov neeg nqa khoom uas tsis nyob ib sab thiab nyob ib sab tso tawm hauv 400MHz
- siab ceev
-Txhawb Web-based Network tswj
Specification ntawm IP rau Analog modulator
|
Tswv yim |
Interface / tus nqi |
2 GE chaw nres nkoj (max 64 IP input) Max 840Mbps rau txhua qhov GE input |
|
Kwj |
UDP, UDP / RTP, 1-7 pob ntawv, FEC, SPTS, MPTS |
|
|
Thauj raws tu qauv |
UDP / RTP, unicast thiab multicast, IGMP V2 / V3 |
|
|
Packet Ntev |
188/204 Bytes |
|
|
Decodhauv Tsis muaj |
Video |
HEVC/H.265, H.264/AVC Level 4.1 HP, MPEG-2 MP@HL |
|
Suab |
MPEG-1/2 Txheej 1/2, (HE-)AAC, AC3 |
|
|
Cov ntaub ntawv |
Teletext, Teletext subtitles, DVB Subtitling |
|
|
Kev daws teeb meem |
HEVC/H.265: 1080@60P ,1080@60I,1080@50P,1080@50I,720@60P,720@50P H.264/AVC: 1080@60I,1080@50P,1080@50I,1080@30P,1080@25P , 720@60P,720@50P,576@50I,480@60I MPEG 2: 1080@60I,1080@50I, 720@60P,720@50P,576@50I,480@60I |
|
|
Aspect ratio |
4:3/16:9 |
|
|
Modulation Tsis muaj |
Tus naj npawb ntawm cov channel |
mus 32 |
|
Cov khoom sib txuas |
75Ω, F-jack |
|
|
Ntau zaus |
47 – 862MHz, digital modulation process |
|
|
Tso zis Bandwidth |
400 MHz |
|
|
Cov zis theem |
siab tshaj 112dBμV |
|
|
Rov qab poob |
Ntau dua lossis sib npaug li 14dB |
|
|
Spurious zaus dist. |
Ntau dua lossis sib npaug li 60dB |
|
|
Stereo cross tham |
>55dB ib |
|
|
Residual carrier raug |
1% |
|
|
TV txuj |
PAL B/G/D/K/M/N, NTSC M/J/4.43, SECAM (nyob rau hauv kev txhim kho) |
|
|
Video-signal rau suab nrov piv |
Ntau dua lossis sib npaug li 60dB |
|
|
Network Interface |
Kev tswj hwm |
1 x 100 Base-T Ethernet (RJ 45) |
|
Cov ntaub ntawv |
2 x 1000 Base-T Ethernet (RJ 45) |
|
|
raws tu qauv |
IEEE 802.3 Ethernet, RTP, ARP, IPv4, TCP/UDP, HTTP, IGMPv2/v3 |
|
|
Lwm tus |
Duab daws teeb meem |
mus 1080i |
|
CNR |
60 dB (tom qab kev sib xyaw ua ke) |
|
|
SNR |
>53 dB (tom qab kev sib xyaw ua ke) |
|
|
Sampling zaus |
48, 44.1, 32 |
|
|
Tso zis ntim hloov |
0 - 100 % |
|
|
General |
Tshem tawm |
420mm × 440mm × 44.5mm (WxLxH) |
|
Kub |
0 ~ 45 degree (kev ua haujlwm), -20 ~ 80 degree (cia) |
|
|
Fais fab mov |
AC100V ± 10%, 50 / 60Hz los yog AC 220V ± 10%, 50 / 60Hz |
Kev xa khoom
1, Fedex / DHL / UPS / TNT rau cov qauv, qhov rooj rau qhov rooj.
2, Los ntawm huab cua los yog hiav txwv rau tej khoom, rau FCL; Air port/port txais
3, Cov neeg siv khoom qhia cov neeg xa khoom xa tuaj lossis kev sib tham xa khoom xa tuaj
4, Lub sij hawm xa tuaj: 1-3 hnub rau cov qauv; 10-30 hnub rau cov khoom loj
Yog xav paub ntxiv, thov hu rau peb ntawm:
Adela Lin
Txawb: +86 13588723749
Fax: +86 571 88983280
Skype: adelalin80
Whatsapp: +86 13588723749
Facebook: Softel Optic Co., Ltd
Hangzhou Softel Optic Co., Ltd.
708-709 Haiwei Tsev|Binjiang District|Hangzhou|Tuam Tshoj
Cim npe nrov: softel ip rau analog modulator, Tuam Tshoj, manufacturers, lwm tus neeg, Hoobkas, lag luam wholesale
