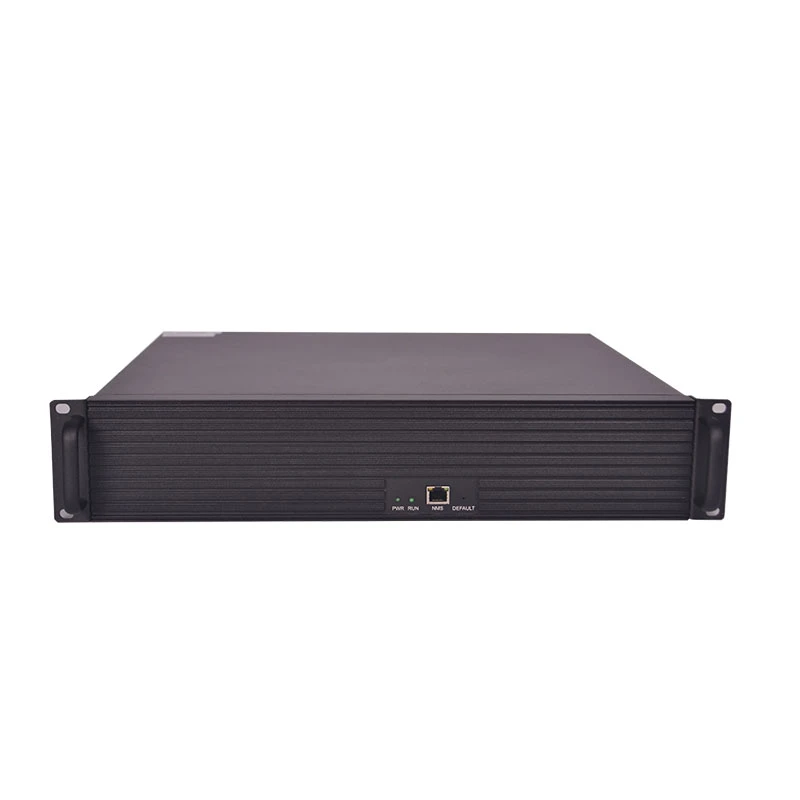

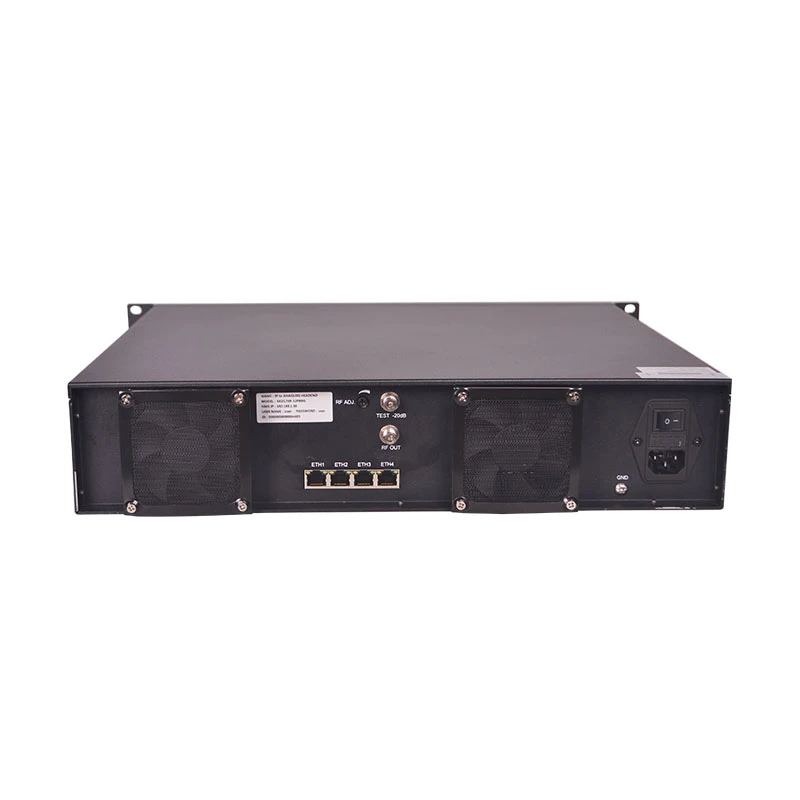

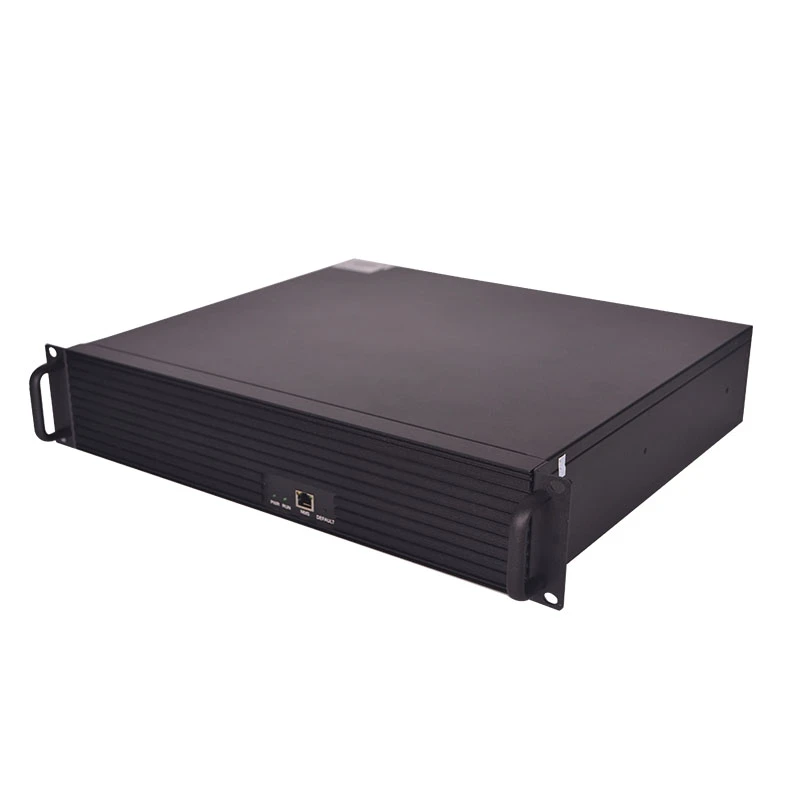

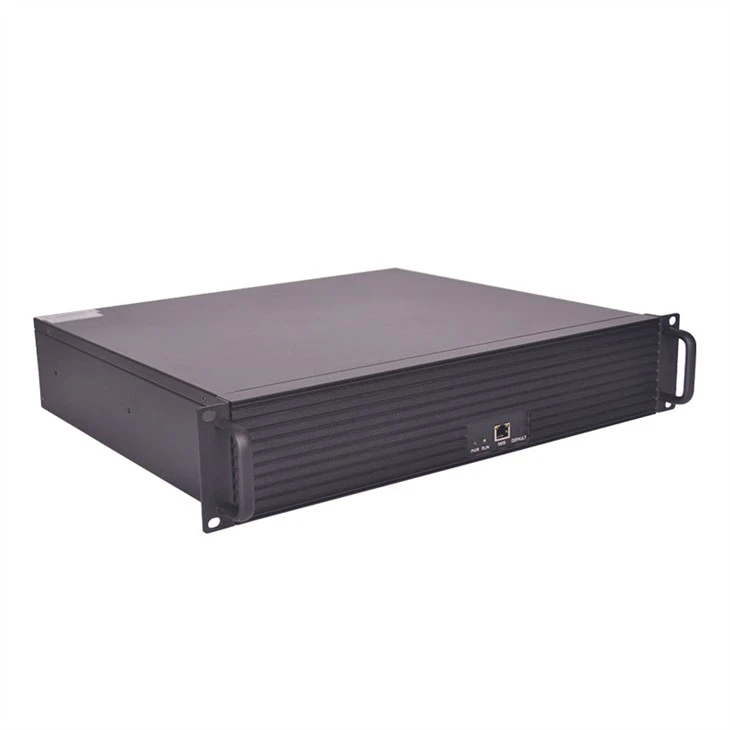

Av Rau Rf Modulator
av rau rf modulator
Khoom Piav Qhia
av rau rf modulator headend yog ntau tus IP rau cov xov tooj hluav taws xob analog uas tuaj yeem tsim 32 txoj kab tsis sib txuas hauv PAL lossis NTSC cov qauv. Teeb tsa thiab lub thev yog yooj yim thiab yooj yim coj kom zoo dua ntawm chav ua haujlwm tus phooj ywg.
Cov av no rau rf modulator headendis zoo tshaj plaws rau xa mus rau qhov chaw uas tsis muaj TVs tsis tshaj.
Nthuav dav Duab
Cov Nta Tseem Ceeb
1.Support 4 GE nkag chaw nres nkoj hla MPTS andSPTS
2.Cov khoom ua si 2RU nrog 5 tus kiv cua txias thiab hmoov av
3.Xav txog 32 tus IP ntws tawm thiab tsim tawm mus txog 32 channel hauv NTSC lossis PALstandard
4. yooj yim teeb tsa thiab software txhim kho los ntawm built-in WebUI
5.Txoj kev ua haujlwm ntawm teletext andoverlay
6.Txoj kev ua haujlwm ntawm BISSdecrypt
Cov Khoom Tshwj Xeeb
GbE INPUT | |
Cov khoom siv txuas | 4x RJ45 |
Thauj Cov Lus Cog Tseg | UDP, RTP |
Chaw nyob | Unicast, Multicast |
MPEG Thauj | SPTS, MPTS |
TS TXIAV TXIM | |
Daim Video Daws Teeb Meem | Mus txog 1080P |
Daim Ntawv Ua Daim Video | MPEG1 / 2/4; H.264; H.265; AVS; AVS +; VC1 |
Suab Daim Ntawv | MPEG-1 Txheej I / II / III; WMA, AAC, AC3 |
MAX txiav suab ntws | 32 raws |
Lub peev xwm ntxiv | Teletext; ROOJ decrypt |
Xam Li Piv | 4:3; 16:9 |
RF TSUM KAWM | |
Khoom Txuas | F poj niam txuas |
Tus naj npawb ntawm RF raws | Max 32, Nkag tag nrho cov tes taws ua ke cov qauv |
Txhawb Txuj Ci | NTSC, PAL BG / DI / DK |
STD, HRC thiab IRC | Pab Txhawb Nqa |
Output Level | ≥ 45dBmV ua ke |
Kho Tau Ntau Yam | 20dB Rau 32CHs |
10dB Ib CH | |
Rau cov zis zaus | 48 ~ {860 MHz |
Tawm-qhab Tsis Kam | ≥ 60dB |
Audio Output Format | MONO |
Suab Kho Kom Lom Zem Ntau Yam | 0 ~ 100 % |
GENERAL | |
Tswj | NMS |
Lus | Lus Askiv |
Khoom siv fais fab | DC 12V 1A |
Qhov Tau Txais | GG lt; 10 W |
Nyhav | 8,5 KG |
Qhov ntev | 484 * 435 * 89 (HLI) |
Cov Ntaub Ntawv Tuam Txhab
Cov FAQ
Lub Sijhawm Ua
Feem ntau, yog tias muaj' s Tshuag, peb xa cov khoom hauv 3 ~ 5 hnub ua haujlwm tom qab tso nyiaj tau lees tias. Yog tias nws tawm hauv cov khoom, lub sijhawm txhuas yuav nyob ntawm.
Txog Thauj
Thaum pob tau me me, peb ib txwm xaiv FedEx, DHL, TNT, thiab UPS thiab lwm yam, thaum cov khoom lag luam muaj qhov hnyav thiab ntim ntau, peb hais kom siv kev xa khoom huab cua lossis dej hiav txwv.
Kev Pab OEM
Yog lawm. Yog tias muaj qee qhov kev txiav txim kom muaj nuj nqis, peb tuaj yeem ua OEM suav nrog kev luam ntawv, logo, thiab tus qauv customized rau koj.
Warranty Yam Khoom
av rau rf modulatormuaj 2YEAR Txwv Warranty, peb muab nws cov neeg siv tag nrho lub neej kev ua haujlwm pub dawb. Yog tias kev tiv thaiv tag sijhawm, kev pabcuam kho tsuas yog them feem (yog xav tau).
Qhov kev lav zoo tsis yog lub luag haujlwm rau cov uas tawg los ntawm kev ua phem lossis kho nrog rau lwm cov npe.
NCO TSEG: peb donotassume lub luag haujlwm rau kev puas tsuaj los ntawm kev tsis raug ntim ntawm cov khoom xa rov qab.
Yog xav paub ntxiv txog ntawm noav mus rau rf modulator, thov hu rau peb:
Helena Chen
Email: softel12@softel-optic.com
WhatsApp: + 86 184 5798 0817
Cim npe nrov: av rau rf modulator, Tuam Tshoj, tuam ntxhab, lwm tus neeg, Hoobkas, lag luam wholesale
