Name: Tuam Tshoj PLC Optical Splitter 2X4 Manufacturers, lwm tus neeg - Hoobkas ncaj lag luam wholesale - SOFTEL
Brand: Hangzhou Softel Optic Co., Ltd
SKU: 242960542

Softel muaj ntau yam ntawm 1xN thiab 2xN splitter khoom uas yog tsim los pab rau cov kev xav tau ntawm peb cov neeg muas zaub.

Xa kev nug

Khoom Taw qhia

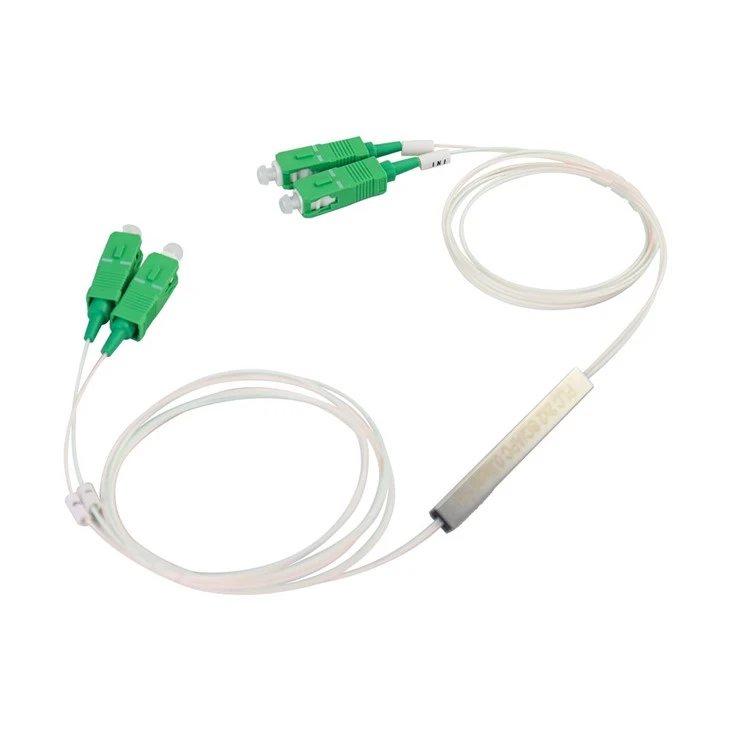

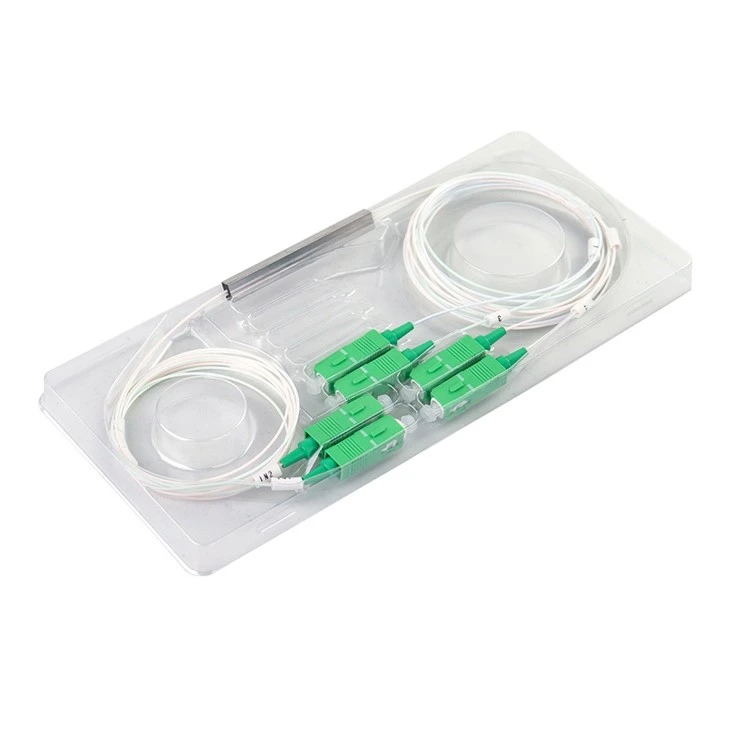

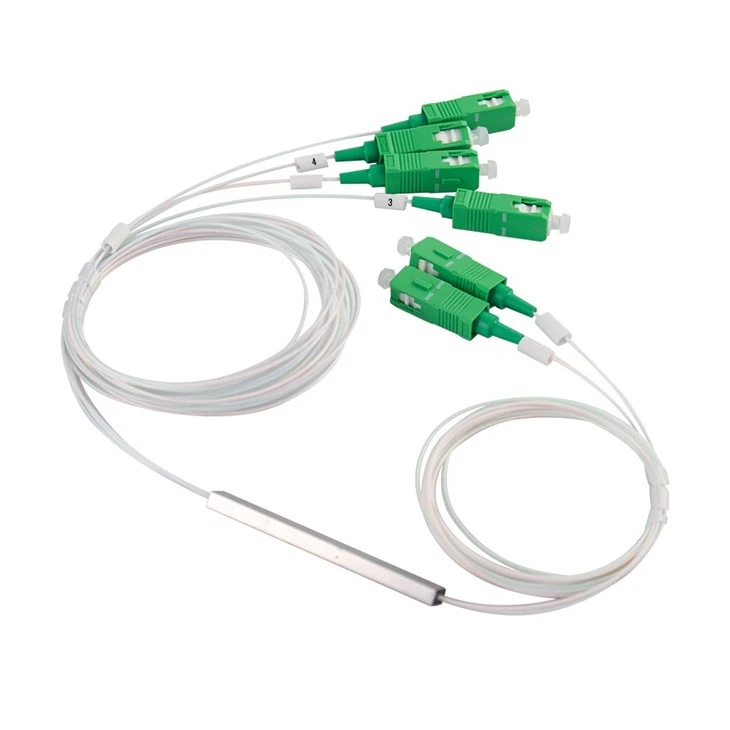

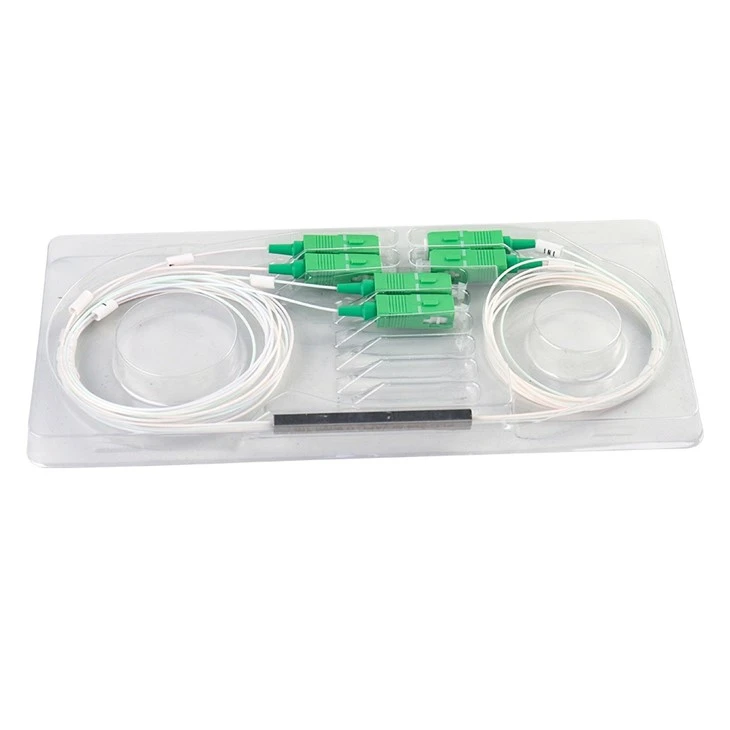

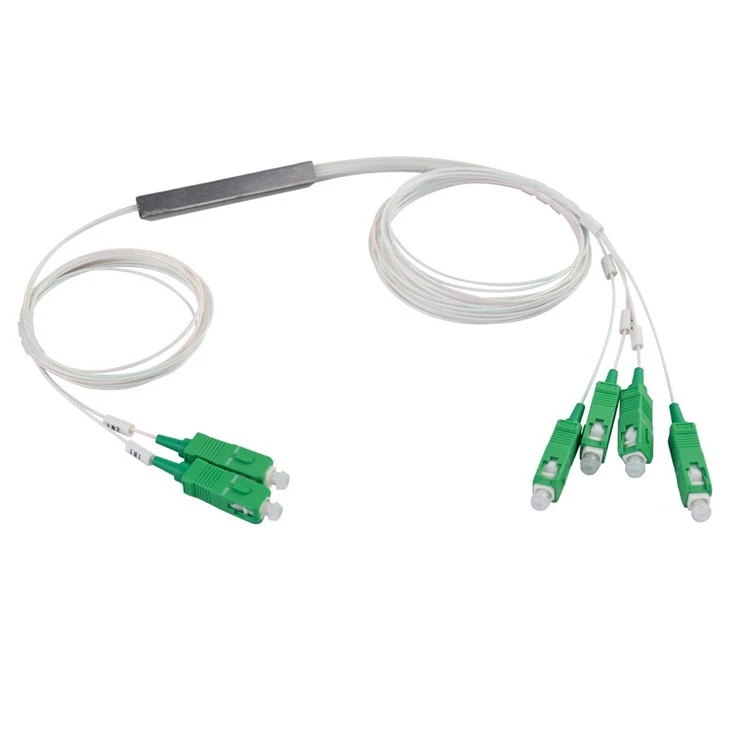

PLC Optical Splitter 2X4

Qhov ntev ntawm optical fiber tuaj yeem kho raws li qhov xav tau tiag tiag.

Connector hom: SC / APC, FC / APC, LC / APC, FC / UPC, LC / UPC, ST / UPC

Fiber taub: {{0}}.9mm/2.0mm/3.0mm

PLC Ntaus: Mini / ABS Box

PLC series: 1/2 * 2/3/4/6/8/12/16/32/64/128

Nta

Tsawg Insertion poob

Low PDL

Compact Design

Zoo channel-rau-channel uniformity

Kev ua haujlwm dav dav: Los ntawm 1260nm txog 1650nm

Kev khiav hauj lwm kub: Los ntawm -40 degree mus rau 85 degree Kev ntseeg siab thiab ruaj khov

2x4-PLC-Splitter-1

PLC splitter yog cov cuab yeej zoo kawg nkaus uas tau hloov kho lub ntiaj teb ntawm kev tswj fais fab kho qhov muag. Nrog rau kev siv silica waveguide thev naus laus zis, cov cuab yeej tswj fais fab no muab kev sib cais thiab qhov tseeb ntawm cov teeb liab kho qhov muag.

Ntawm peb lub tuam txhab, peb nkag siab qhov tseem ceeb ntawm cov kev daws teeb meem rau cov ntawv thov tshwj xeeb. Yog li ntawd, peb muab ntau yam ntawm 1xN thiab 2xN splitter khoom uas yog tsim los pab rau cov kev xav tau ntawm peb cov neeg muas zaub. Cov khoom no muaj txiaj ntsig zoo nyob rau hauv ntau yam xwm txheej thiab muab kev ua tau zoo.

Kev zoo nkauj ntawm PLC splitter thev naus laus zis nyob hauv nws lub peev xwm los muab cov teeb liab sib xws tsis muaj qhov poob ntawm lub zog. Qhov no ua kom ntseeg tau tias cov teeb liab kis tau zoo thiab tuaj yeem tso siab rau ntau yam kev siv. Tsis tas li ntawd, cov cuab yeej no yooj yim rau nruab thiab tswj, uas ua rau lawv muaj kev xaiv nrov hauv kev lag luam.

Ntawm peb lub tuam txhab, peb ntseeg hauv kev siv cov cuab yeej tshiab los muab peb cov neeg siv khoom nrog cov khoom zoo tshaj plaws. Peb cov khoom PLC splitter yog tsim los muab seamless kev koom ua ke rau hauv cov txheej txheem uas twb muaj lawm thiab muab kev ua tau zoo tshaj plaws. Peb tau cog lus los muab peb cov neeg siv khoom nrog cov kev daws teeb meem zoo tshaj plaws thiab ua kom ntseeg tau tias lawv ib txwm txaus siab rau peb cov khoom thiab cov kev pabcuam.

2x4-PLC-Splitter-3

PLC Splitter Hom

Kev faib tawm los ntawm cov duab

Mini PLC Splitter

ABS Box PLC Splitter

Classification los ntawm series

1/2*2,1/2*3,1/2*4,1/2*6,1/2*8,1/2*12,1/2*16,1/2*32,1/2*64,1/2*126

Daim ntawv thov

FTTX system

Cov khoom siv kuaj

Passive optical networks

Hauv cheeb tsam network

1 * N Splitters:

Parameter		Chav tsev	Tus nqi
Yam khoom			1x2	1x3	1x4	1x6	1x8	1x12	1x16	1x32	1x64	1x128
Ua haujlwm Wavelength		nm	1260~1650
Insertion Loss	Ntaus.	dB	3.6	6.3	7.0	9.4	10.2	12.4	13.5	16.6	20.1	24.5
Insertion Loss	Max.	dB	4.1	6.8	7.5	10.0	10.5	13	13.8	17.1	20.8	25.3
Uniformity (Max.)		dB	0.5	0.8	0.8	0.8	0.8	1.2	1.4	1.5	2.0	2.6
PDL (Max.)		dB	0.2	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.5	0.8
Rov Los Los		dB	Ntau tshaj los yog sib npaug rau 55 (APC hom connectors) / 50 (UPC hom connectors)
Kev taw qhia		dB	Ntau dua lossis sib npaug li 55
Kev khiav hauj lwm & StorageTemperature		degree	-40-+85

2 * N Splitters:

Parameter		Chav tsev	Tus nqi
Yam khoom			2x2	2x3	2x4	2x6	2x8	2x12	2x16	2x32	2x64	2x128
Ua haujlwm Wavelength		nm	1260~1650
Insertion Loss	Ntaus.	dB	4.1	6.6	7.2	9.7	10.5	12.6	13.8	17	20.5	24.8
Insertion Loss	Max.	dB	4.5	7.0	7.6	10.2	11	13.2	14.5	17.8	21.5	25.8
Uniformity (Max.)		dB	0.8	0.8	0.8	1.0	1.0	1.5	1.5	1.8	2.5	3.0
PDL (Max.)		dB	0.2	0.3	0.3	0.3	0.3	0.3	0.3	0.5	0.6	1.0
Rov Los Los		dB	Ntau tshaj los yog sib npaug rau 55 (APC hom connectors) / 50 (UPC hom connectors)
Kev taw qhia		dB	Ntau dua lossis sib npaug li 55
Kev khiav hauj lwm & StorageTemperature		degree	-40-+85
