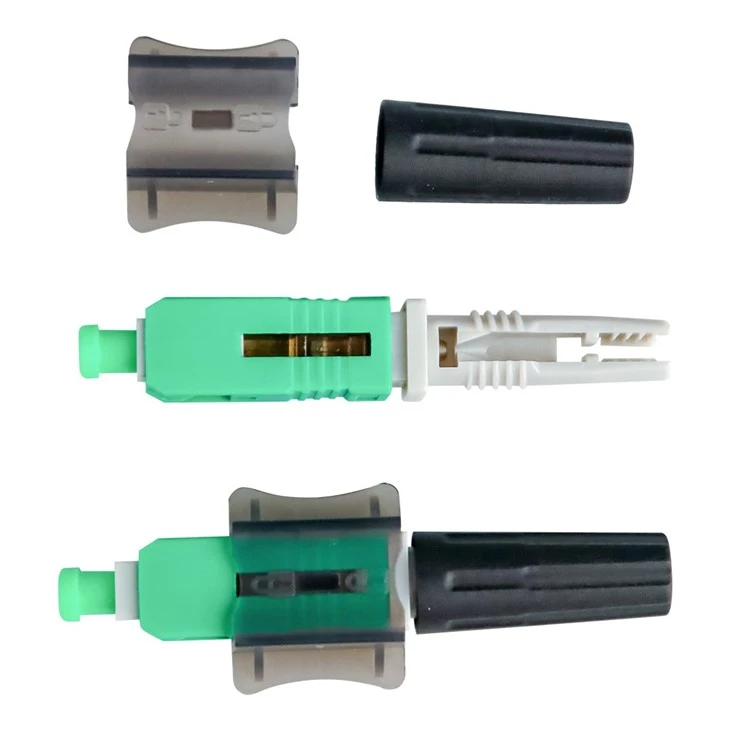

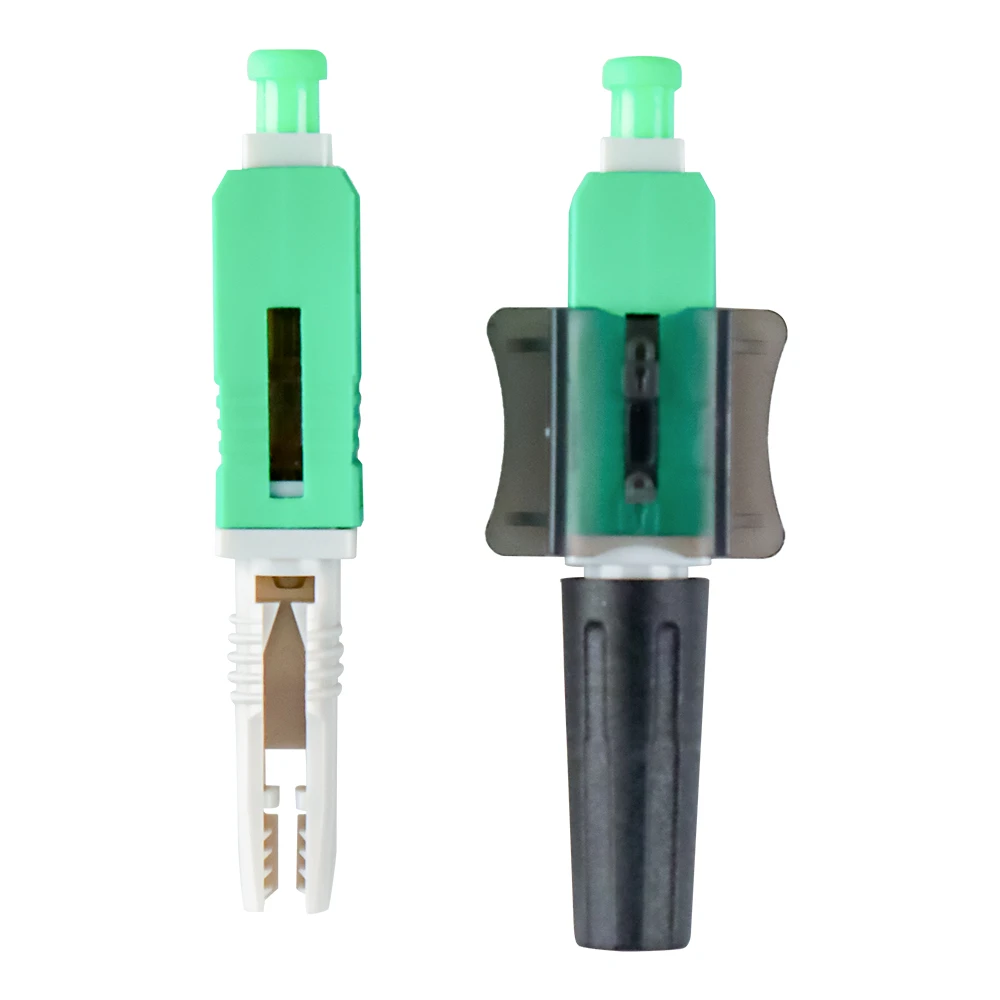

SC Fast Connector Fiber Fast Connectors Sc Apc Quick Connector

Cov khoom

Tsis muaj

Connector Ntev

52mm ua

Siv tau Cable

2.0x3.0mm Drop Cable

Cladding Txoj kab uas hla

125μm (G657A2)

Txheej Dia

250μm

Insertion poob (1310nm & 1550nm)

Tsawg dua lossis sib npaug rau 0.3dB (Avg), Tsawg dua lossis sib npaug rau 0.50dB (Max)

Rov Los Los

Ntau dua lossis sib npaug rau 50dB (UPC), Ntau dua lossis sib npaug rau 55dB (APC)

Lub sij hawm sib dhos nruab nrab

Tsawg dua los yog sib npaug li 3 min

Rate of Success

Ntau dua lossis sib npaug li 95%

Rov ua dua

Ntau dua lossis sib npaug li 5 npaug

Clamping Force

Ntau dua lossis sib npaug rau 4N

Tensile zog

Ntau dua lossis sib npaug rau 40N

Repeatability (10 zaug)

∆IL Tsawg dua lossis sib npaug rau 0.3dB, ∆RL Tsawg dua lossis sib npaug rau 5dB

Mechanical Endurance (500 zaug)

∆IL Tsawg dua lossis sib npaug rau 0.3dB, ∆RL Tsawg dua lossis sib npaug rau 5dB

Caij nplooj zeeg-Kev xeem (1.5m qhov siab, 8 zaug)

∆IL Tsawg dua lossis sib npaug rau 0.3dB, ∆RL Tsawg dua lossis sib npaug rau 5dB

Qhov kub thiab txias

-40 ~ +85 degree

High Tmperature thiab Moisture Test (96h)

∆IL Tsawg dua lossis sib npaug rau 0.3dB, ∆RL Tsawg dua lossis sib npaug rau 5dB

Temperature Cycle Test (21 zaug, 168h)

∆IL Tsawg dua lossis sib npaug rau 0.3dB, ∆RL Tsawg dua lossis sib npaug rau 5dB
