SR814 TESM Sab Nraum Zoov Tsav Kho Kho ©
Khoom Txheej Txheem
SR814DMSab nraum zoov Catv Optical tau txais peb lub siab tshiab {}}}}}}}}}}}}}} kho lub network kho qhov muag. Lub pre - Amplifier tau txais txhua - mmic, post-amplifier adopts gaas module. Kev tsim kho hluav taws xob tsim kho kom sib koom ua ke nrog peb 10 xyoo tsim kev paub, cov cuab yeej ua tiav Performance index. Cov kev hloov kho ntawm RF ignenuation thiab kev txawj ntse ob leeg adopts feluenator inserter uas ua rau muaj kev sib cav sib haum xeeb yooj yim. Nws yog cov khoom tseem ceeb los tsim CatV network.
Cov yam ntxwv ua tau zoo
Cov lus teb siab tus Pin photoelectric hloov siab lub raj.
10 bar LED LED cov lus qhia hluav taws xob, ntau dua qhov tseeb ntawm lub zog kho qhov muag.
Kev tsim kho Circuit Court tsim, lub pre -}}}}}}}}}}}}}} ece-}}}} ece-}}} ece eces
Cov kev hloov kho ntawm RF Attenishuation thiab kev txawj ntse ob qho tib si tau txais kev nkag siab, EQ txoj hauj lwm tso tawm hauv Insilibrium tuaj yeem hloov pauv qhov sib npaug, yog li cov tshuab nqus ntxeem tau yooj yim heev.
Muab ob npaug rau hluav taws xob tawm, muaj kev loj thiab qis distortion.
Kev tswj hwm tus ntsuas kho qhov muag, thaum cov tswv yim kho qhov muag yog -7 ~+2 dbm, qib tawm, cSOs tsis hloov.
Cov txheej txheem tsis sib xws
|
Yam |
Ib yam |
Kev tsis muaj |
|
|
Tom ntej cais |
|||
|
Cov Qauv Kho Optical |
|||
|
Tau Txais Qhov Kho Qhov Muag Hluav Taws Xob |
dBM |
-7 ~ +2 |
|
|
Kho qhov muag rov qab poob |
dB |
>45 |
|
|
Kho qhov muag tau txais wavelength |
nm |
1100 ~ 1600 |
|
|
Qhov Tseem Ceeb Txuas Ntaus |
FC / APC, SC / APC lossis teev los ntawm tus neeg siv |
||
|
Hom Fais fab |
Ib Leeg |
||
|
Txoj saw hlauUa yeeb yam |
|||
|
C/N |
dB |
Ntau dua los yog sib npaug rau 51 (-2dBM cov lus qhia) |
|
|
C / CTB |
dB |
Ntau dua los yog sib npaug rau 65 |
Cov zis qib 108 dbμv Balanced 6DB |
|
C / CSO |
dB |
Ntau dua los yog sib npaug rau 60 |
|
|
RF tsis |
|||
|
Zaus heev |
Tus mhz |
45 ~ {{862 / 1003 (lossis sau tseg los ntawm tus neeg siv) |
|
|
Flatness nyob rau hauv band |
dB |
±0.75 |
|
|
Txoj kab nqes |
dB |
2±0.5 |
|
|
Cov Kev Ntsuas Cov Khoom Siv Tawm |
DBμV |
Ntau dua los yog sib npaug rau 108 |
|
|
Max Tso Tawm Theem |
DBμV |
Ntau dua los yog sib npaug rau 112 |
|
|
Tso Tawm Rov Qab Poob |
dB |
Ntau dua los yog sib npaug rau 14 |
|
|
Tso Tawm Impedance |
Ω |
75 |
|
|
Doag dog thiab eq (siv) |
dB |
2.3.4.5.6.7.9.13 (lossis sau tseg los ntawm tus neeg siv) |
|
|
Rov qab tshooj |
|||
|
Cov Qauv Kho Optical |
|||
|
Kho qhov muag tau muab nthwv cua |
nm |
1310 ± 10, 1550 ± 10 lossis cov neeg siv |
|
|
Tso Tawm Kho Qhov Muag Hluav Taws Xob |
mw |
0.5, 1, 2 |
|
|
Qhov Tseem Ceeb Txuas Ntaus |
FC / APC, SC / APC lossis teev los ntawm tus neeg siv |
||
|
RF tsis |
|||
|
Zaus heev |
Tus mhz |
5 ~ 65 (lossis sau tseg los ntawm tus neeg siv) |
|
|
Flatness nyob rau hauv band |
dB |
±1 |
|
|
Cov tswv yim qib |
DBμV |
72 ~ 85 |
|
|
Tso Tawm Impedance |
Ω |
75 |
|
|
Kev Ua Haujlwm General |
|||
|
Fais fab voltage |
V |
A: AC (150 ~ 265) v; B: AC (35 ~ 90) v |
|
|
Kev ntsuas kub |
tiv kis |
-40~60 |
|
|
Cia kub |
tiv kis |
-40~65 |
|
|
Tus txheeb ze cov av noo |
% |
Max 95% tsis -} kev ua yeeb yam |
|
|
Kev noj |
Va |
Tsawg dua los yog sib npaug rau 30 |
|
|
Qho loj dav |
lub hli |
240(L)╳ 240(W)╳ 150(H) |
|

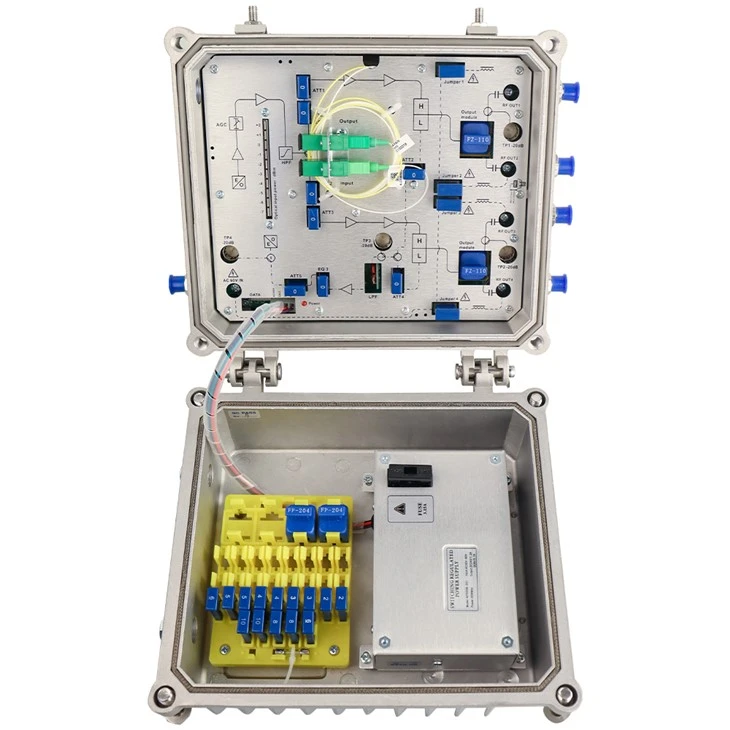

Tus qauv kos duab ntawm SR814 ?? Sab nraum zoov Catv Optical tau txais
|
1. Optical Fiber ntxiv |
2. Xa cov fiber ntau adapter |
3. Tawm tswv yim kho qhov muag Taw tes |
|
4. CHANCE 1 Forward RF Eq Daim qhia txog |
5. Channel 1 Sab Nraud RF AT Daim qhia txog |
6. Channel 1 dua - tam sim no Daim ntawv qhia txog 1 |
|
7. Channel 1 dhau - tam sim no Daim ntawv 2 |
8. Channel 1 Tso Tawm Tap (Splitter) |
9. Channel 1 RF tso zis A |
|
10. Channel 1 RF OUTPUST (-20db) |
11. Channel 1 RF Tawm B |
12. Channel 2 Forward RF Eq Daim qhia txog |
|
13. Channel 2 Forward RF Ncu |
14. Channel 2 dhau - tam sim no Daim ntawv qhia txog 1 |
15. Channel 2 RF tso zis A |
|
16. Channel 2 Tshaj - tam sim no Daim ntawv 2 |
17. Channel 2 RF OUTPEST (-20db) |
18. Channel 2 outputk (Splitter) |
|
19. Channel 2 RF tawm B |
20. Channel 1 Nrawm RF ATT Daim qhia txog |
21. Channel 2 Rov Qab RF ATT Daim qhia txog |
|
22. Rov qab RF TEST 1 (-20DB) |
23. Rov qab qis -}} dhau lim ntxiv |
24. Rov qab RF EQ INHERTER |
|
25. Rov qab RF INTERTER |
26. Rov Qab RF Kuaj 2 (-20DB) |
27. Rov Qab Fiber Ntau Adapter |
|
28. AC 60v lub hwj chim tswv yim |
29. Lub Cwj Pwm Tseem Ceeb |
30. Fais Fab Ntsuas |
