XGS-PON 10G EDFA
XGS-PON 10G EDFA
I. Khoom Muag Khoom
SPASeryog1550nm siab zog fiber ntau amplifier txais yuav ob-theem amplification, thawj theem txais yuav tsis tshua muaj suab nrov EDFA, theem thib ob txais high-power EYDFA, tag nrho cov zis optical zog tuaj yeem ncav cuag41dBm ib. Nws tuaj yeem hloov tau ntau lossis kaum ob ntawm EDFA, uas tuaj yeem txo tus nqi ntawm lub network tsim thiab kev saib xyuas thiab txo qhov chaw ntawm lub taub hau kawg. Txhua qhov chaw tso zis tau tsim nrog CWDM rau multiplex CATV teeb liab thiab OLT PON Cov ntaub ntawv ntws. Cov cuab yeej yuav ua lub luag haujlwm tseem ceeb hauv cov txheej txheem txuas ntxiv txuas ntxiv thiab nthuav dav ntawm optical fiber network. Nws muab kev ruaj ntseg siab tab sis tus nqi qis rau kev ua si triple thiab thaj chaw loj ntawm FTTH.

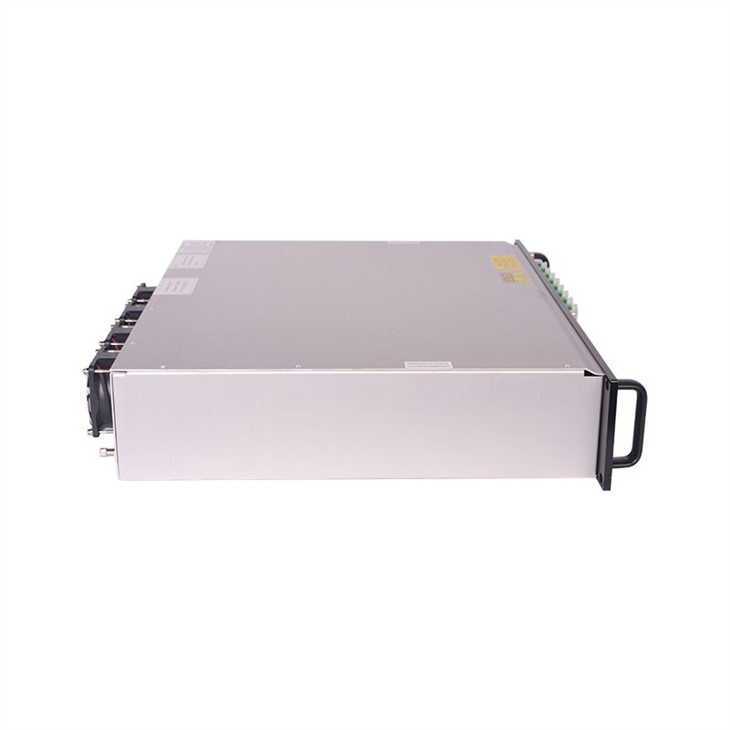

Cov duab nthuav dav ntawm XGS-PON 10G EDFA
Khoom Parameters ntawm XGS-PON 10G EDFA
Qeb | Cov khoom | Chav tsev | Index | Lus hais | ||
Min. | Ntaus. | Max. | ||||
Optical Index | CATV ua haujlwm wavelength | nm | 1545 | 1565 | ||
OLT PON Hlawv wavelength | nm | 1310/1490/1270/1577 | CWDM | |||
Optical Input Range | dBm ib | -8 | ntxiv 10 | |||
Tso zis zog | dBm ib | 41 | 1dBm ncua | |||
Cov zis hloov kho Range | dB | -4 | 0 | Kho tau, txhua kauj ruam 0.1dB | ||
Tso zis ATT | dB | -6 | Tso zis ATT ntawm ib zaug Thiab rov qab los | |||
Output Ports Uniformity | dB | 0.7 | ||||
Tso zis zog ruaj khov | dB | 0.3 | ||||
Tsis muajOLT PONChaw nres nkoj | 32 | SC/APC | ||||
64 | LC/APC | |||||
No. ntawm COM Ports | 32 | SC/APC | ||||
64 | LC/APC | |||||
CATV Pass Loss | dB | 0.8 | ||||
OLT Pass Loss | dB | 0.8 | ||||
Kev sib cais ntawm CATV thiab OLT | dB | 40 | ||||
Hloov Lub Sijhawm Optical Hloov | ms | 8.0 | Xaiv tau | |||
Insertion poob ntawm Optical Switch | dB | 0.8 | Xaiv tau | |||
Nrov duab | dB | 6.0 | Pin:0dBm | |||
PDL | dB | 0.3 | ||||
PDG | dB | 0.4 | ||||
PMD | ps | 0.3 | ||||
Remnant Pump zog | dBm ib | -30 | ||||
Optical Rov Los Poob | dB | 45 | ||||
Fiber Connector | SC/APC | FC/APC LC/APC | ||||
General Index | RF xeem | dBmV ua | 78 | 82 | Xaiv tau | |
Network Management Interface | SNMP, WEB txhawb nqa | |||||
Fais fab mov | V | 90 | 265 | AC | ||
-72 | -36 | DC | ||||
Kev siv fais fab | W | 100 | Dual PS, 1 ntxiv rau 1 standby,40dBm ib | |||
Kev khiav hauj lwm Temp | degree | -5 | ua plus65 | |||
Cia Temp | degree | -40 | ua plus85 | |||
Kev khiav haujlwmRelativeHumidity | feem pua | 5 | 95 | |||
Dimension | mm | 370×483×88 | D,W,H | |||
Qhov hnyav | Kg | 7.5 | ||||
