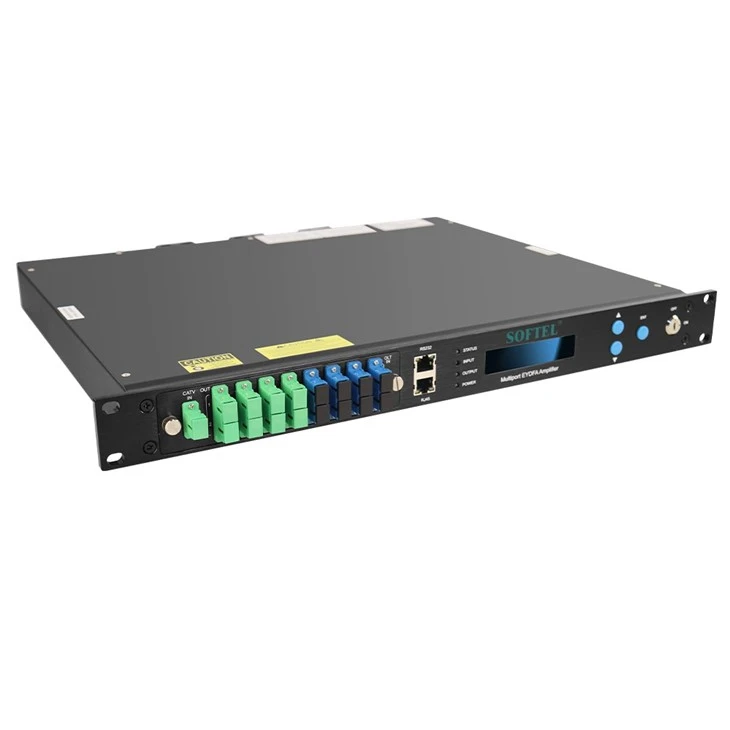

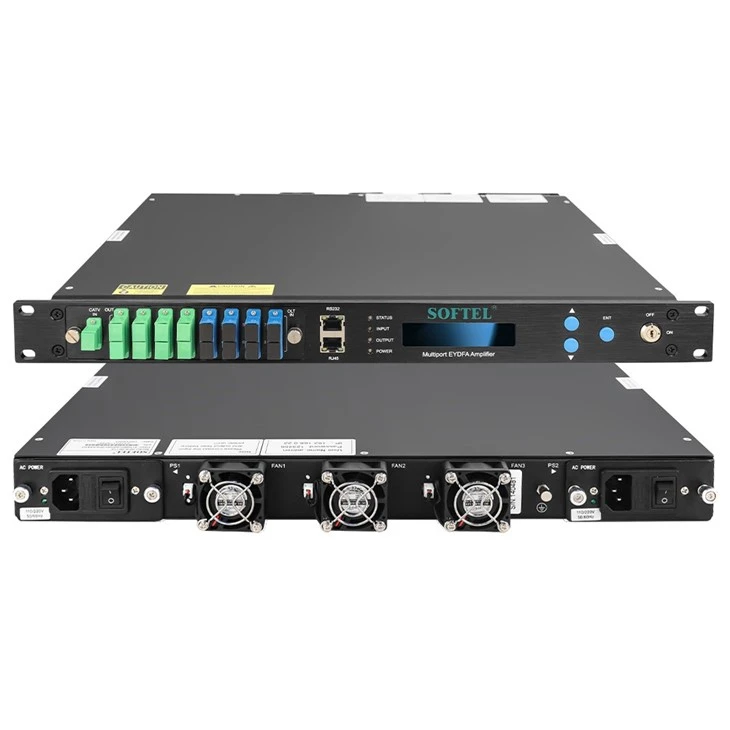

8 Chaw nres nkoj Pon EDFA Nqe
SPA-08 × 19 Multiport 8 Chaw nres nkoj Amplifier Pon EDFA
Nta
Ib leeg / dual cov tswv yim rau kev xaiv, ua hauv kev hloov kho qhov muag rau ob lub tswv yim, lub zog hloov pauv tuaj yeem teeb tsa los ntawm lub pob hauv pem hauv ntej vaj huam sib luag lossis los ntawm lub vev xaib SNMP.
Cov zis adjustable los ntawm cov nyees khawm nyob rau hauv pem hauv ntej vaj huam sib luag los yog lub web SNMP, qhov ntau yog down 4dBm
Kev saib xyuas kev ua haujlwm ntawm ib zaug downward attenuation ntawm 6dBm los ntawm cov nyees khawm nyob rau hauv pem hauv ntej vaj huam sib luag los yog lub web SNMP, los pab txhawb lub optical fiber kub-plug lag luam yam tsis tau tua lub ntaus ntawv
Multi-ports tso zis, tuaj yeem tsim hauv 1310/1490/1550nm WDM.
Standard RJ 45 chaw nres nkoj rau cov chaw taws teeb tswj, peb tuaj yeem muab cov ntawv cog lus tso tawm thiab tus thawj saib xyuas lub vev xaib rau kev xaiv, thiab tseem ntsaws-hauv SNMP kho vajtse tuaj yeem khaws cia rau hloov tshiab.
Nrog tus yuam sij laser tig rau / tawm lub laser.
Nrog RF xeem ua haujlwm.
Txais JDSU lossis Oclaro Pump laser
Led qhia txog kev ua haujlwm ntawm lub tshuab

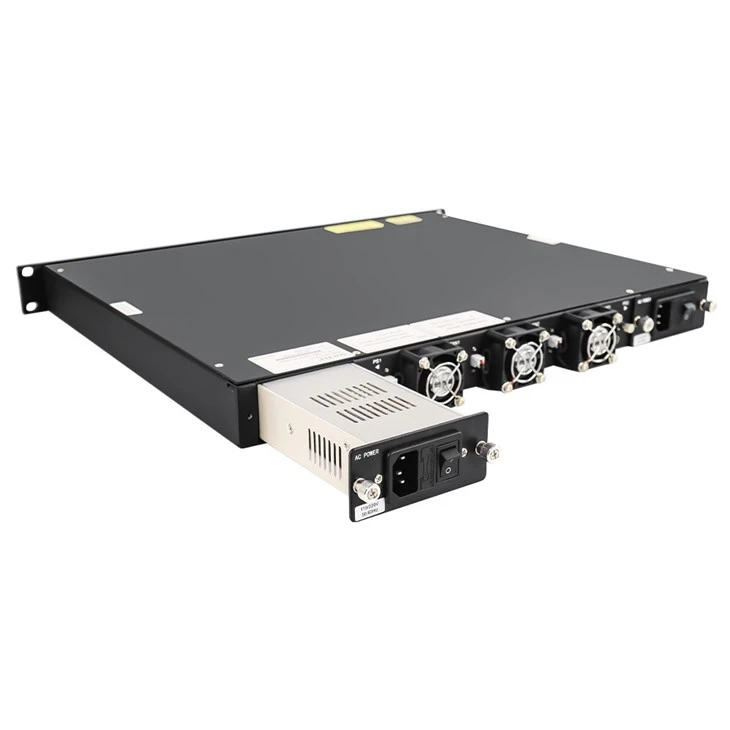

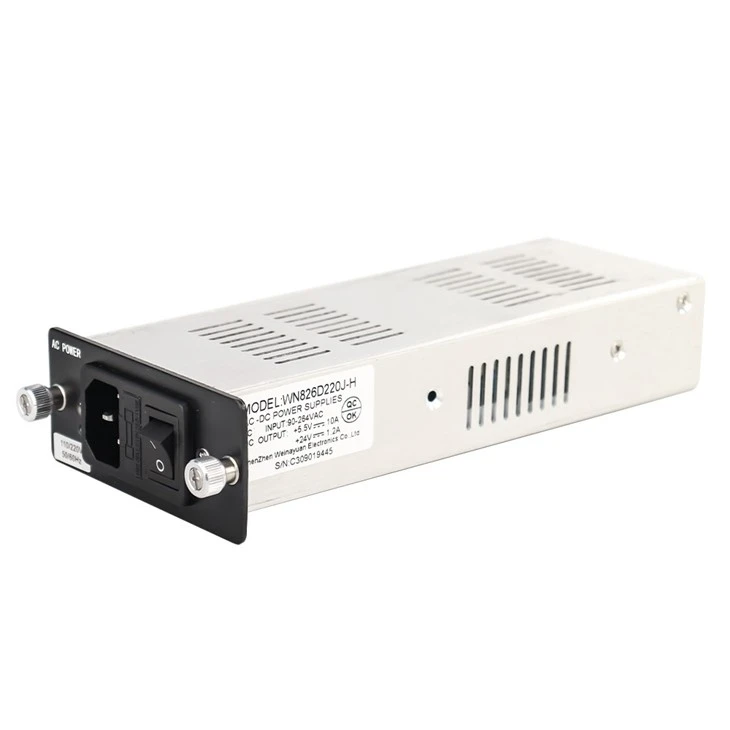

Dual fais fab kub plug fais fab mov rau xaiv, 90V-250V AC lossis -48V DC
Specifications
|
Cov khoom |
EDFA 8 Chaw nres nkoj nrog WDM | |||||||||
|
Cov zis (dBm) |
31 |
32 |
33 |
34 |
35 |
36 |
37 |
38 |
39 |
40 |
|
Cov zis (mW) |
1250 |
1600 |
2000 |
2500 |
3200 |
4000 |
5000 |
6400 |
8000 |
10000 |
|
Cov tswv yim (dBm) |
-8-+10 |
|||||||||
|
Kev hloov pauv ntawm cov zis (dBm) |
Hauv qab 4 |
|||||||||
|
ib zaug downward attenuation (dBm) |
Hauv qab 6 |
|||||||||
|
Wavelength (nm) |
1540-1565 |
|||||||||
|
Tso zis stability (dB) |
<±0.3 |
|||||||||
|
Optical Rov Los Loss (dB) |
Ntau dua lossis sib npaug li 45 |
|||||||||
|
Fiber Connector |
FC / APC, SC / APC, SC / IUPC, LC / APC, LC / UPC |
|||||||||
|
Suab nrov (dB) |
<6.0(input 0dBm) |
|||||||||
|
Web chaw nres nkoj |
RJ45 (SNMP) |
|||||||||
|
Kev siv hluav taws xob (W) |
Tsawg dua los yog sib npaug li 80 |
|||||||||
|
Qhov voltage (V) |
220VAC(90-265), -48VDC |
|||||||||
|
Ua haujlwm kub (degree) |
-0-55 |
|||||||||
|
Loj (mm) |
370(L)×486(W)×88(H) |
|||||||||
|
NW (Kg) |
8 |
|||||||||
