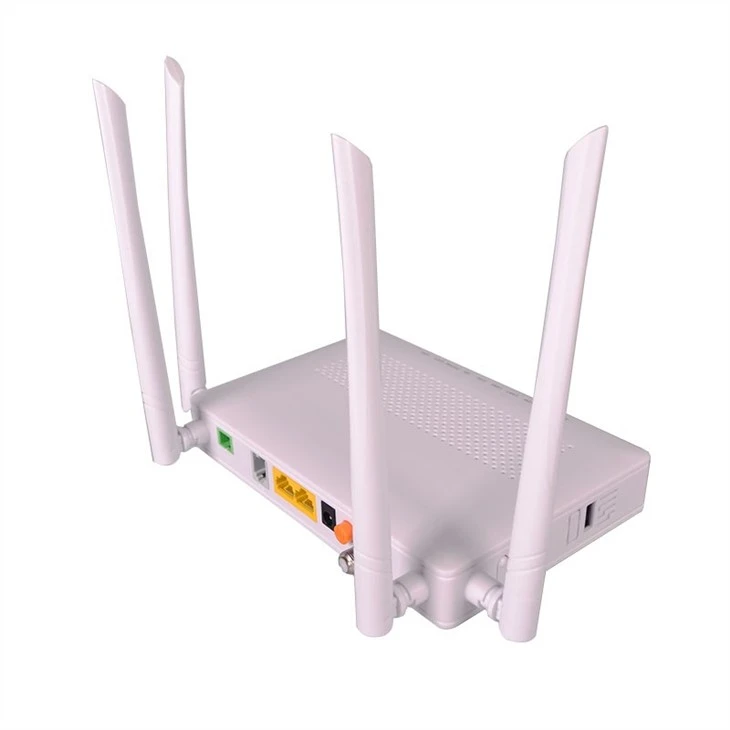

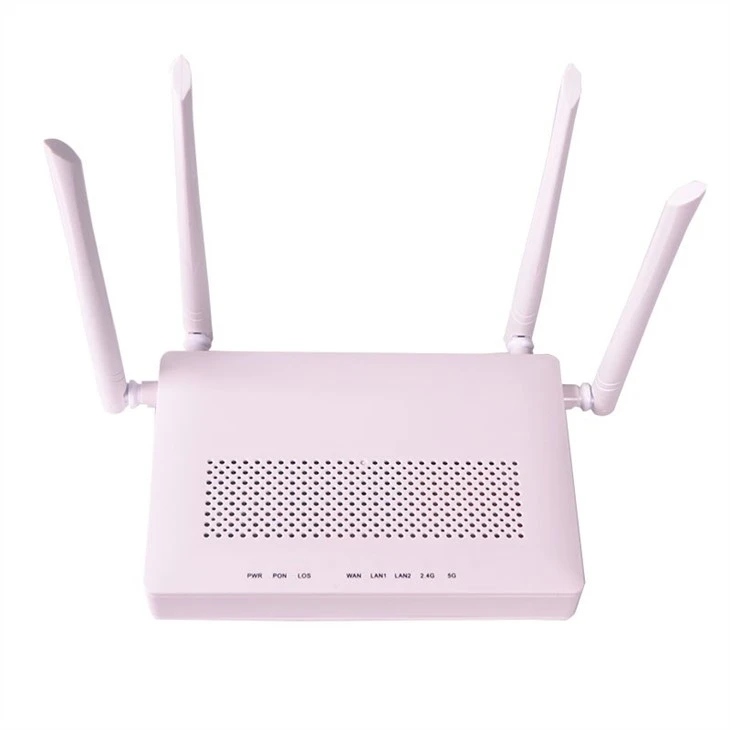

2GE Dual Band Wifi ONU Rau FTTX Solutions

Dimension

220mm x 150mm x 32mm (tsis muaj kav hlau txais xov)

Qhov hnyav

Kwv yees li 420 g

Ua hauj lwm ib puag ncig kub

0 degree - ntxiv rau 40 degree

Ua hauj lwm ib puag ncig humidity

5 feem pua ​​RH-95 feem pua ​​RH, tsis yog condensing

Fais fab adapter input theem

90V -270V AC, 50/60Hz

Cov khoom siv hluav taws xob

11V -14V DC, 1.5 A

Kev siv hluav taws xob zoo li qub

7.5 W

Kev siv hluav taws xob siab tshaj plaws

18 W

Interfaces

1POTS ntxiv rau 2GE ntxiv rau Wi-Fi (2.4G ntxiv rau 5G) ntxiv rau USB

qhov taw qhia teeb

POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS

PON interface

• Chav B ntxiv
• -27dBm txais rhiab heev
• Wavelength: sab sauv 1310nm, downstream 1490nm
• Txhawb WBF
• Daim ntawv qhia yooj yim ntawm GEM Chaw nres nkoj thiab TCONT
• Authentication method: SN/password/LOID (GPON)
• Ob txoj kev FEC (Kev kho qhov yuam kev rau pem hauv ntej)
• Txhawb DBA rau SR thiab NSR

Ethernet chaw nres nkoj

• Stripping raws li VLAN Tag/Tag rau Ethernet chaw nres nkoj.
• 1:1 VLAN/N:1 VLAN/VLAN Pass-through
• QinQ VLAN
• MAC chaw nyob txwv
• MAC chaw nyob kev kawm

POTS interface

• Ntau tshaj plaws rau ob qhov chaw nres nkoj uas sib koom ua ke
Kev sib txuas hauv kev sib txuas nrog Xov Tooj: 4 REN
• Txhawb G.711A/u, G.729a/b, G.722 CODEC
• Txhawb T.30/T.38 hom rau fax
• DTMF
• Kev hu xovtooj xwm ceev

WLAN

• IEEE 802.11 b/g/n
• 2 × 2 MIMO
• Kav hlau txais xov nce: 5dBi
• WMM (Wi-Fi multimedia)
• Ntau SSID ntau yam
• WPS

USB interface

• USB2.0
• Network cia raws li FTP

Network txheem

IEEE 802.11 ib

Kav hlau txais xov

2T2R, txhawb MU-MIMO

Kev txhawb siab tshaj plaws

20M: 173.3Mbps
40M: 400Mps
80M: 866.7Mbps

Cov ntaub ntawv modulation hom

BPSK QPSK 16QAM 64QAM 256QAM

Cov zis siab tshaj plaws

Tsawg dua lossis sib npaug li 20dBm

Hom channel (customizable)

36,40,44,48,52,56,60,64,100,104, 108,112,116,120 ,124,128,132,136, 140,144,149,153,157,161,165

Hom encryption

WPA, WPA2, WPA/WPA2, WEP, Tsis muaj

Hom encryption

AES, TSI
