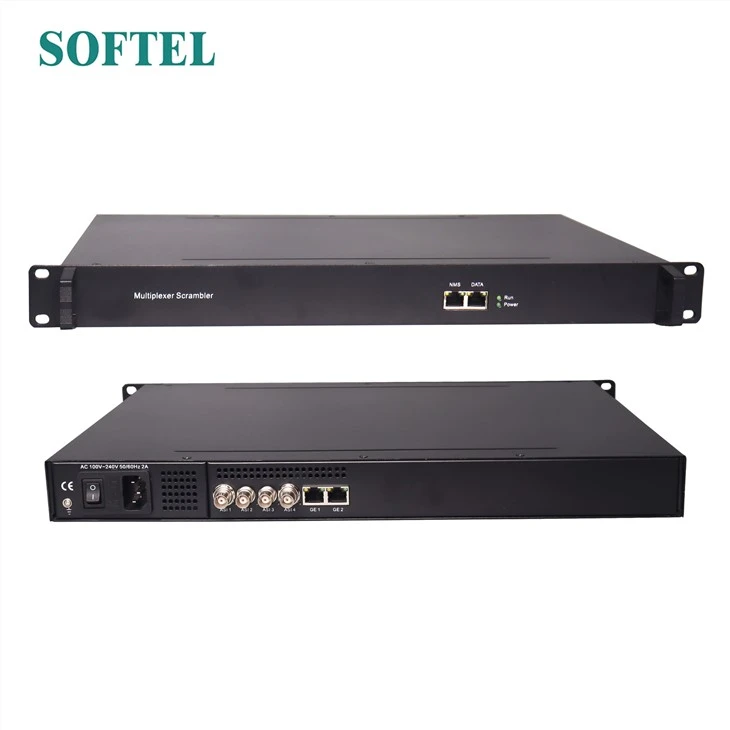

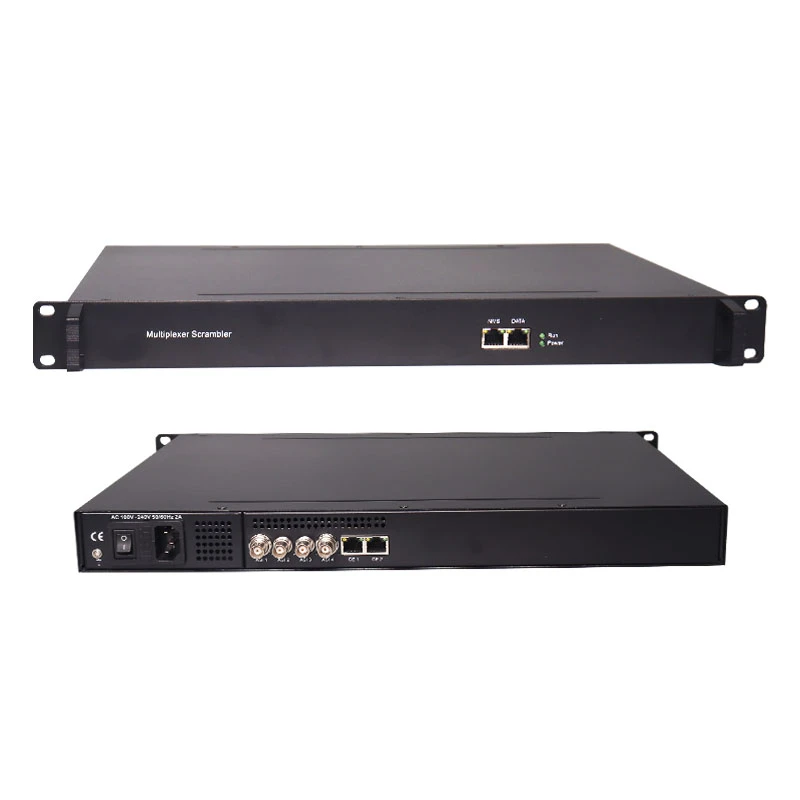

Digital TV Scrambler
Digital TV Scrambler
Qhov Multiplexer Scrambler no yog peb qhov tseeb multiplexing scrambler ntaus ntawv. Nws muaj 4 bi-direction ASI thiab 3 bi-direction IP chaw nres nkoj txhawb nqa mus txog 4 ASI thiab 128 IP input, tom qab scrambling, nws outputs 4 MPTS thiab max 4 ASI.
Nws muaj lub luag haujlwm ntawm kev txhawb nqa pib tsim ntawm PSI / SI cov ntaub ntawv, PID rov ua daim ntawv qhia, kev pabcuam lim dej thiab kho PCR. Hauv kev xaus, nws qhov kev sib koom ua ke siab thiab tus nqi tsim nyog ua rau qhov Digital TV Scrambler tau siv dav hauv CATV tshaj tawm xov xwm.
Yam ntxwv
ASI in/out: max 4 ASI input/output thru 4 bi-direction ASI ports (ASI kev taw qhia tuaj yeem txhais tau tias yog kev tawm tswv yim lossis tso tawm manually)
IP nkag / tawm: 128 IP input, 4 IP (MPTS) tso zis los ntawm 3 bi-direction Cov ntaub ntawv chaw nres nkoj
Txhawb scramble nrog txog li 4 simulcrypt CAs
Txog 512 PIDs remapping ib qhov tso zis tawm channel
Txhawb kom raug PCR kho, PID lim, rov ua daim ntawv qhia thiab PSI / SI rebuilding thiab kho
Lub cim xeeb loj loj rau kev txuag cov dej ntws dhau los
Tswb muaj nuj nqi
Web-based NMS kev tswj hwm
Parameters ntawm Digital TV Scrambler
Input / Output | 4 bi-direction ASI chaw nres nkoj: max 4 ASI input / output, BNC 75 3 ob-txoj kev cov ntaub ntawv chaw nres nkoj (RJ45): 128 IP input tshaj UDP / RTP 4 IP (MPTS) tso zis tshaj UDP/RTP/RTSP 100/1000Mbps kev hloov kho tus kheej | |
| Input Packet format: 204/188 tus kheej hloov | ||
| ASI: Max tso zis me ntsis-tus nqi: 200Mbps (Txhua channel) | ||
Mux | Max PIDs | 512 ib channel |
Muaj nuj nqi | PID re-mapping | |
| PCR raug kho | ||
| Tsis siv neeg tsim PSI/SI rooj | ||
PID pob tshab | Txhua PID pob tshab thiab daim ntawv qhia ua tiav | |
Scrambling Tsis muaj | Max simulcrypt CA | 4 |
Scramble Standard | ETR289, ETSI 101 197, ETSI 103 197 | |
Scramble Channel | 1 | |
Kev sib txuas | Kev sib txuas hauv zos / chaw taws teeb | |
Qhov system | Web-based kev tswj hwm | |
| Lus: Lus Askiv thiab Suav | ||
| Ethernet software upgrade | ||
General | Qhov ntev | 482mm × 300mm × 44mm (WxLxH) |
Qhov hnyav | 3.5kg ib | |
Kub | 0 ~ 45 degree (kev ua haujlwm), -20 ~ 80 degree (cia) | |
Fais fab mov | AC 110V ± 10% , 50 / 60Hz lossis AC 220V ± 10% , 50 / 60Hz | |
Kev noj haus | Tsawg dua lossis sib npaug li 40W | |
Cim npe nrov: digital tv scrambler, Suav teb, manufacturers, lwm tus neeg, Hoobkas, lag luam wholesale
