ISDB-T RF Modulator

24 hauv 1 ISDB-T RF Modulator

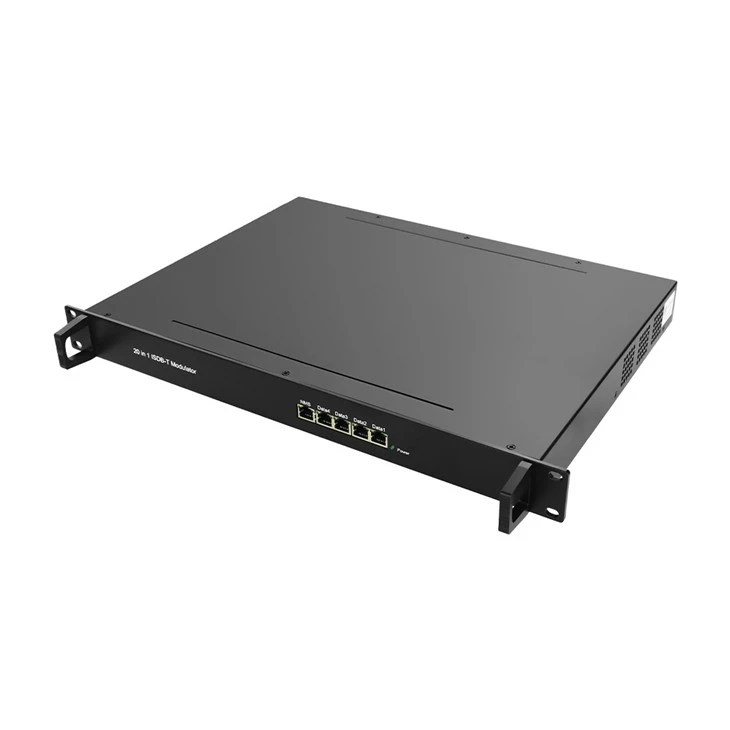

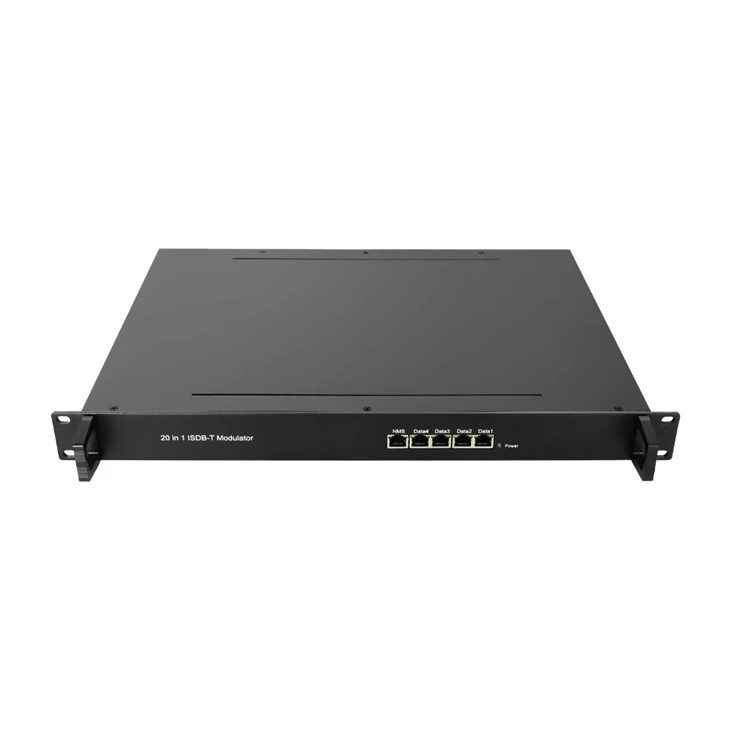

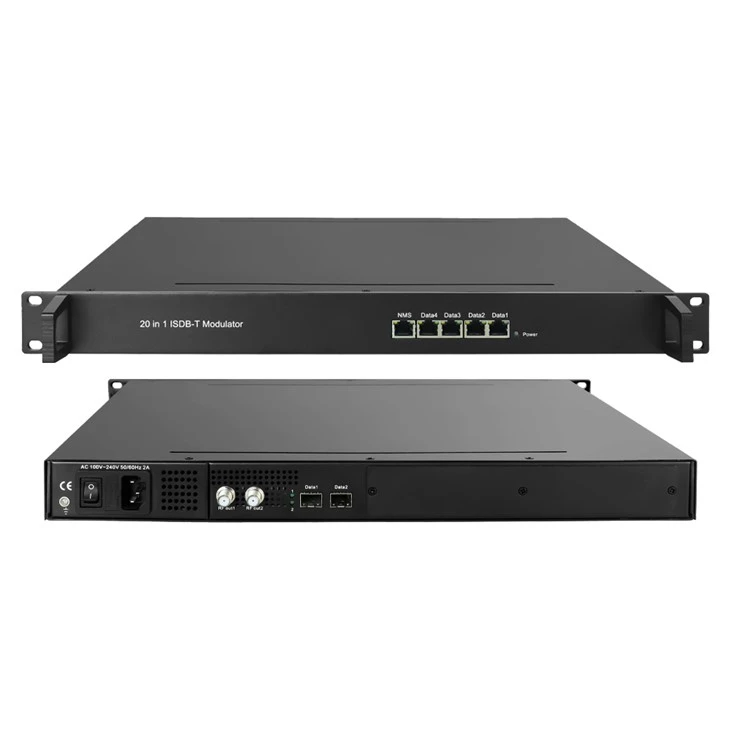

SFT3306I-24 24-hauv-1 IP ISDB-T Modulator tsim los ntawm SOFTEL yog cov cuab yeej tawg uas sib txuas ntau lub zog hauv ib lub cuab yeej, ua rau nws muaj txiaj ntsig zoo rau cov uas tab tom nrhiav lub tshuab ua haujlwm zoo. Nrog 24 multiplexed channels, 24 scrambled channels thiab 24 ISDB-T modulated channels, lub cuab yeej muaj tag nrho cov tsim nyog nta kom tau raws li cov kev xav tau ntawm ntau yam kev siv.

Tsis tas li ntawd, cov cuab yeej siv tau ntau yam vim nws txhawb nqa txog 512 IP inputs ntawm 4+2 cov ntaub ntawv chaw nres nkoj. Nws kuj tseem txhawb nqa 24 tus neeg nqa khoom uas tsis nyob ib sab (50MHz txog 960MHz) tso tawm los ntawm 2 RF tso zis ports, uas yog qhov zoo rau kev ua kom muaj teeb meem zoo.

Txawm tias qhov zoo tshaj plaws yog ob lub RF tso zis ports, uas muab cov bandwidth dav dua rau ISDB cov neeg nqa khoom. Qhov no feature tshwj xeeb tshaj yog pab tau rau cov neeg siv uas yuav tsum tau xa cov ntaub ntawv loj, raws li nws muab ntau dua bandwidth thiab ntau dua teeb liab zoo.

Tag nrho hauv tag nrho, tus 24-hauv-1 IP ISDB-T modulator yog cov cuab yeej ua tau zoo, hloov tau thiab txhim khu kev qha. Txawm hais tias koj yog tus tshaj tawm xov xwm, chaw muab kev pabcuam hauv xov tooj lossis lub lag luam loj, qhov kev hloov kho no yuav ua tau raws li koj xav tau thiab tshaj qhov koj xav tau.

Txhais nrog www.DeepL.com/Translator (dawb version)



NTA 24 hauv 1 ISDB-T RF Modulator



. 6 GE inputs (4 * Gigabit, 2 * SFP)
. Txhawb nqa mus txog 512 IP inputs dhau UDP / RTP
. Max 840Mbps thiab 512 IP inputs rau txhua GE inputs
. Txhawb multiplexing nrog raug PCR kho, CAPID filtering, PID remapping thiab PSI / SI kho
. Txhawb nqa txog 256 PID remapping ib channel
. Txhawb DVB general scrambling system (ETR289), simulcrypt qauv ETSI 101 197 thiab ETSI 103 197
. Txhawb 24 multiplexed lossis scrambled IP outputs tshaj UDP / RTP / RTSP
. 24 cov neeg nqa khoom uas tsis nyob ib sab QAM tso tawm los ntawm 2 RF interfaces, ua raws li ISDB-T (EN 300 429) thiab ITU-T J.83 A/B/C
. Txhawb RS (204,188) encoding
. Txhawb Web-based Network tswj



Specification ntawm 24 hauv 1 ISDB-T RF Modulator



Tswv yim	Tswv yim		Max 512 IP inputs ntawm 6 * 100 / 1000M Ethernet Chaw nres nkoj (4 * RJ45, 2 * SFP)
	Thauj raws tu qauv		TS dhau UDP/RTP, unicast thiab multicast, IGMPV2/V3
	Kis tus nqi		Max 840Mbps rau txhua qhov GE input
Mux	Input Channel		512
	Tso zis Channel		24
	Max PIDs		256 ib channel
	Muaj nuj nqi		PID remapping (auto / manually yeem)
			PCR raug kho
			PSI/SI lub rooj cia li tsim
Scrambling Tsis muaj	Max simulscrypt CA		6
	Scramble Standard		ETR289, ETSI 101 197, ETSI 103 197
	Kev sib txuas		Kev sib txuas hauv zos / chaw taws teeb
Modulation Tsis muaj	Txuj		ARIB STD-B31
	Bandwidth		6M
	Lub hnub qub		QPSK, 16 QAM, 64 QAM
	Guard Interval		1/32, 1/16, 1/8, 1/4
	Hom kis tau tus mob		2K, 4K, 8K
	Tus lej lej		1/2, 2/3, 3/4, 5/6, 7/8
	MER		Ntau dua lossis sib npaug li 40dB
	RF zaus		50 ~ 960MHz, 1KHz kauj ruam
	RF tso zis theem		{{0}}dBm~+10dBm(87~117dbµV), 0.1dB stepping

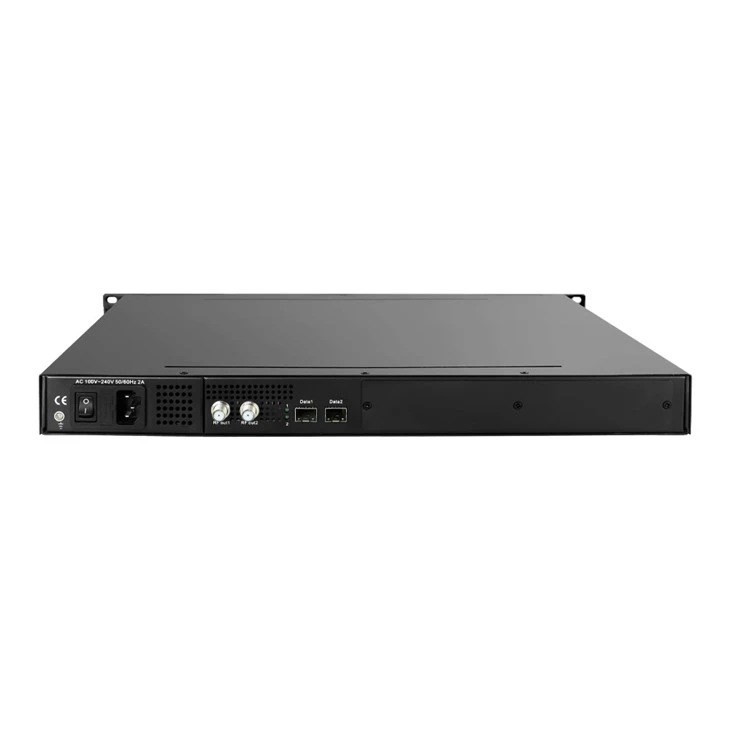

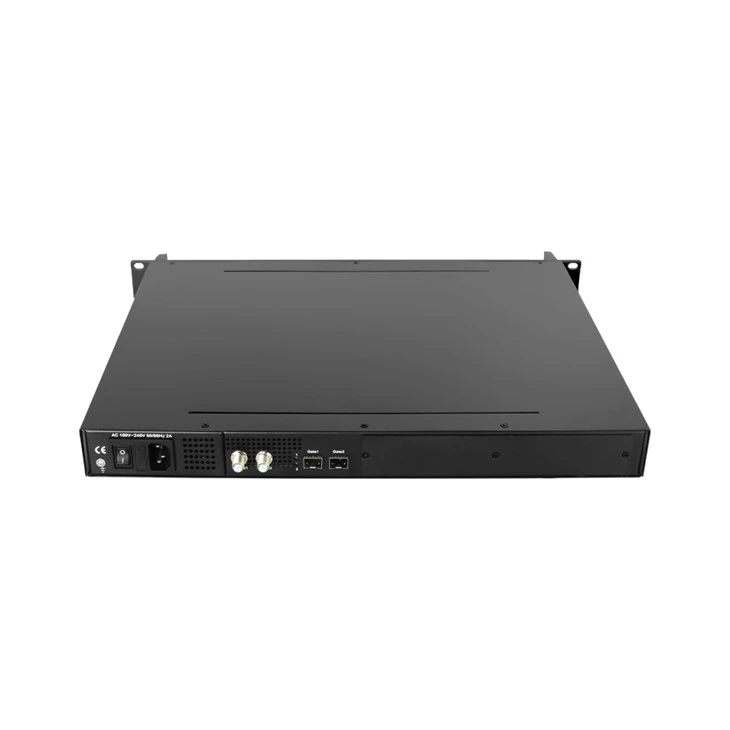

RF tso zis	Interface		2 F hom tso zis ports rau 24 tus neeg nqa khoom, 75Ω
	RF Ntau		50 ~ 960MHz, 1kHz kauj ruam
	Qib tso zis		{{0}}dBm~+10dBm(87~117dbµV), 0.1dB stepping
	MER		Ntau dua lossis sib npaug li 40dB
TS output	24 IP tso zis dhau UDP / RTP / RTSP, unicast / multicast, 4 * 100 / 1000M Ethernet Ports (txhua qhov chaw nres nkoj rau 24 IP outputs)
Qhov system	Web-based Network Management
General	Kev tso tseg	420mm × 440mm × 44.5mm (WxLxH)
	Kub	0 ~ 45 degree (kev ua haujlwm), -20 ~ 80 degree (cia)
	Fais fab mov	AC 100V ± 10%, 50 / 60Hz lossis AC 220V ± 10%, 50 / 60Hz





Lub tuam txhab kev taw qhia thiab daim ntawv pov thawj



Hangzhou SOFTEL Optic Co., Ltd. yog ib lub tuam txhab tshwj xeeb hauv kev tsim cov khoom lag luam sib txuas lus thiab muab cov khoom lag luam sib xyaw ua ke. Peb muab cov khoom lag luam zoo tshaj plaws thiab muaj txiaj ntsig zoo xaiv rau Kev Kho thiab Wireless Broadband Network, 5G, Data Center, ICT thiab IoT kev lag luam uas xav tau cov ntaub ntawv ceev ceev thiab sib pauv.



Tshaj tawm TV khoom thiab kev pabcuam
Cov khoom siv thiab cov kev pabcuam software npog ntau yam, suav nrog analog TV systems, digital TV thiab lPTV, thiab lwm yam. Nws ua tau raws li qhov xav tau kev pabcuam dav dav ntawm kev tshaj tawm TV hauv ntau lub tebchaws thiab cheeb tsam thoob ntiaj teb.



Optical Wired Access Network System thiab kev daws teeb meem
Siv HFC / FTTH / FTTO / FTTB cov kev daws teeb meem los ntawm EPON / GPON / XGS-PON / WDM thev naus laus zis los muab kev nkag mus rau hauv lub network, thiab cov teeb liab kis tau los ntawm lub taub hau mus rau lub davhlau ya nyob twg los muab cov neeg siv Internet, TV, thiab xov tooj.



Fiber Optic Telecommunication Cable Solutions
Txawm hais tias koj tab tom tsim lub network tshiab los ntawm kos lossis hloov kho ib qho uas twb muaj lawm, SOFTEL cov kev daws teeb meem fiber ntau yog qhov haum zoo. Peb cov khoom suav nrog sab nraum zoov fiber ntau optic cables, sab hauv tsev poob cables, thaj cords thiab pigtails, MTP / MPO, ODF thiab cov thawv sib koom, fusion splicers, otdr thiab lwm yam.
SOFTEL muab ib qho kev daws teeb meem rau cov lag luam nrhiav fiber ntau optic cables. Peb pab pawg kws tshaj lij yuav ua haujlwm nrog koj txhawm rau txheeb xyuas koj cov kev xav tau tshwj xeeb thiab muab cov kev daws teeb meem uas ua tau raws li koj cov kev xav tau tshwj xeeb. Peb muab ntau yam khoom, nrog rau cov khoom siv kho qhov muag, cov khoom siv kho qhov muag, cov hlua khi, thiab cov kab sib txuas, txhua yam yog tsim los muab kev sib txuas txhim khu kev qha, kev hloov cov ntaub ntawv ceev, thiab cov khoom zoo tshaj.



---



Kev xa khoom



1, Fedex / DHL / UPS / TNT rau cov qauv, qhov rooj rau qhov rooj.

2, Los ntawm huab cua los yog hiav txwv rau tej khoom, rau FCL; Air port/port txais

3, Cov neeg siv khoom qhia cov neeg xa khoom xa tuaj lossis kev sib tham xa khoom xa tuaj

4, Lub sij hawm xa tuaj: 1-3 hnub rau cov qauv; 10-30 hnub rau cov khoom loj



---
