HDMI rau ISDB-T Encoder Modulator

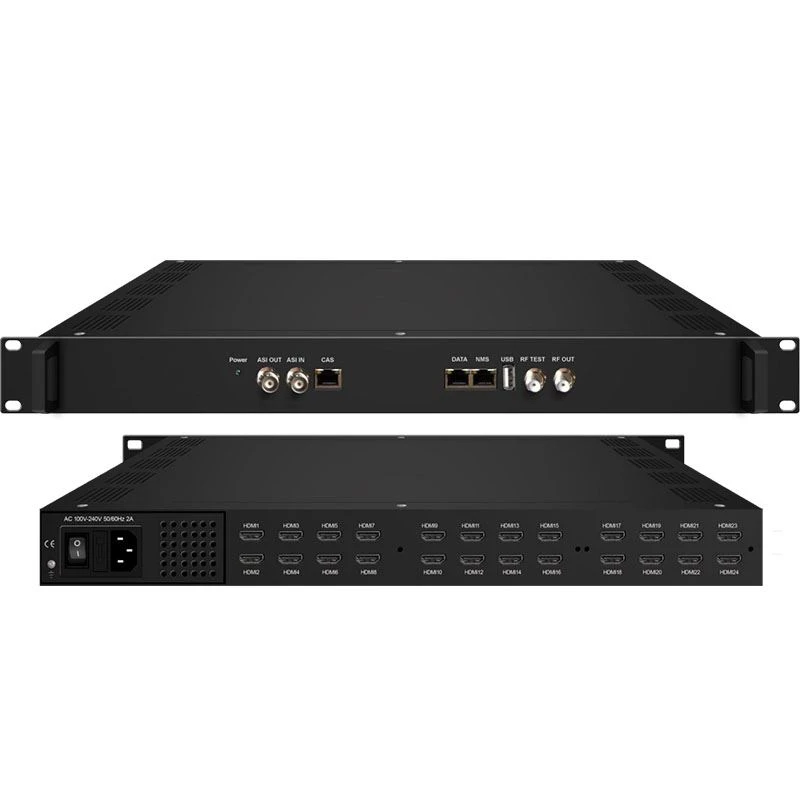

HDMI rau ISDB-T encoder modulator
SFT3536Sis yog ib qho kev sib koom ua ke zoo tshaj plaws uas suav nrog kev sib tw, kev sib tw, thiab kev hloov kho. Nws txhawb 8/16/24 HDMI inputs. Nws kuj txhawb DVB-C RF tawm, DVB-T / ATSC RF tawm lossis ISDB-T RF tawm.
Qhov no HDMI rau ISDB-T encoder modulator txhawb nqa 8/16/24 HDMI inputs, 1 ASI input, 1 USB payer inputs thiab 128 IP inputs ntawm GE chaw nres nkoj. Nws kuj txhawb DVB-C RF tawm, DVB-T / ATSC RF tawm los yog ISDB-T RF tawm raws li zoo raws li 12/8/6/16 MPTS raws li daim iav ntawm 12/8/6/16 nqa los ntawm GE chaw nres nkoj thiab 1 ASI tawm raws li daim iav ntawm ib qho ntawm cov neeg nqa khoom. Cov cuab yeej ua haujlwm puv no ua rau nws zoo tagnrho rau me me CATV headend system. Thiab nws yog qhov kev xaiv ntse heev rau lub tsev so TV, kev lom zem hauv kev ua kis las, tsev kho mob thiab chav tsev thiab lwm yam.
Ntsiab nta
8/16/24 HDMI inputs, MPEG-4 AVC/H.264 Video encoding
1ASIinput rau re-mux
1 USB Player (Ntxig USB Flash drive nrog "xxx.ts" cov yeeb yaj kiab hauv SFT3536S thiab rov qab cov ntsiab lus hauv txoj hauv kev yooj yim; cov ntaub ntawv FAT 32.)
128IP input tshaj UDP thiab RTPvia GE chaw nres nkoj
Txhua tus neeg nqa tawm channel txheej txheem ntau tshaj 32 IPinputs los ntawm GEport (UDP& RTP raws tu qauv)
MPEG1 Txheej II, LC-AAC thiab HE-AACAudio encoding, AC3 Pass Throughand suab nce kev hloov kho
Txhawb 8 pawg multiplexing / DVB-T modulating
Kev them nyiaj yug 1 ASI tawm raws li daim iav ntawm ib qho ntawm RF tso zis nqa khoom rau kev xaiv
Txhawb 8MPTSIP tso zis tshaj UDP, RTP/RTSP
Txhawb LOGO, Kab lus thiab QR codeinsertion
Txhawb PIDremapping / raug PCR kho / PSI / SI kho thiab ntxig
Controlviaweb tswj, thiab hloov tshiab yooj yim ntawm lub vev xaib
Specifications
Tswv yim | 8/16/24 HDMI inputs rau kev xaiv 1 ASI rau re-mux 1 USB Player input rau re-mux 128 IP input tshaj UDP thiab RTP, GE chaw nres nkoj, RJ45-DVB-C RF tawm 128 IP input tshaj UDP thiab RTP, GE chaw nres nkoj, RJ45-DVB-T/ATSC RF tawm 128 IP input tshaj UDP thiab RTP, GE chaw nres nkoj, RJ45-ISDBT RF tawm | ||
Multiplexing | PID siab kawg Remapping | 255 input ib channel | |
Muaj nuj nqi | PID remapping (txiav los yog manually) | ||
| Kev kho PCR raug | |||
| Tsim PSI / SI lub rooj tau txais | |||
Modulation | ISDB-T | Txuj | ARIB STD-B31 |
| Bandwidth | 6M | ||
| Lub hnub qub | QPSK, 16 QAM, 64 QAM | ||
| Guard Interval | 1/32, 1/16, 1/8, 1/4 | ||
Kev sib kis Hom | 2K, 4K, 8K | ||
| Tus lej lej | 1/2, 2/3, 3/4, 5/6, 7/8 | ||
| MER | ≥40dB | ||
| RF zaus | 50 ~ 960MHz, 1KHz kauj ruam | ||
| RF tawm | 6 (los yog 16) cov khoom xa tawm tsis nyob ib sab (ntau tshaj bandwidth 192MHz) | ||
| RF tso zis theem | -20dBm ~ +3dBm, 0.1dB kauj ruam | ||
Qhov system muaj nuj nqi | Network Management (WEB) | ||
| Suav thiab Askiv | |||
| Ethernet software upgrade | |||
Lwm yam | Qhov Loj (W × L × H) | 482mm × 328mm × 44mm | |
Ib puag ncig | 0 ~ 45 ℃ (ua haujlwm) ; -20 ~ 80 ℃ ( Cia ) | ||
Lub zog xav tau | AC 110V ± 10%, 50 / 60Hz, AC 220 ± 10%, 50 / 60Hz | ||
Ordering Information
IP nkag | IP tso zis | RF cov cab kuj | Scrambling | ||
DVB-C tawm | 128 | 12 | 12 | N/A | |
DVB-T tawm | 128 | 8 | 8 | N/A | |
ATSC tawm | 128 | 8 | 8 | N/A | |
ISDB-T tawm | V1 | 128 | 6 | 6 | N/A |
V2 | 128 | 16 | 16 | N/A |
Daim ntawv teev npe
HDMI rau ISDB-T encoder modulator | 1pc ua |
HDMICables | 8/16/24 Pkt |
Hwj chim Cord | 1pc ua |
Environment Requirement
Yam khoom | Kev xav tau |
Tshuab Hall Space | Thaum cov neeg siv nruab tshuab thav duab array hauv ib lub tshuab nrog, qhov kev ncua deb ntawm 2 kab ntawm lub tshuab thav ntawv yuav tsum yog 1.2 ~ 1.5m thiab qhov kev ncua deb ntawm phab ntsa yuav tsum tsis pub tsawg tshaj 0.8m. |
Tshuab Hall Floor | Hluav taws xob rho tawm, plua plav dawb Volume resistivity ntawm av anti-static khoom: 1X107~1X1010W, Grounding tam sim no txwv tsis pub muaj zog: 1MW (Cov kabmob hauv pem teb yuav tsum siab dua 450Kg / ㎡) |
Ib puag ncig kub | 5 ~ 40 ℃ (sustainable), 0 ~ 45 ℃ (lub sijhawm luv), kev txhim kho cua txias yog pom zoo |
txheeb ze humidity | 20% ~ 80% ruaj khov 10% ~ 90% lub sijhawm luv |
Siab | 86~105KPa |
Qhov rooj& Qhov rai | Txhim kho cov roj hmab strip rau sealing qhov rooj-khoov thiab ob theem iav rau qhov rais |
Phab ntsa | Nws tuaj yeem npog nrog phab ntsa, lossis ci ntsa iab tsawg dua xim. |
Tiv thaiv hluav taws | Hluav taws kub tswb system thiab extinguisher |
Hwj chim | Xav tau cov cuab yeej siv hluav taws xob, lub tshuab cua txias thiab lub zog hluav taws xob muaj kev ywj pheej rau ib leeg. Lub zog ntaus ntawv yuav tsum muaj AC 110V ± 10%, 50 / 60Hz lossis AC 220V ± 10%, 50 / 60Hz. Thov ua tib zoo xyuas ua ntej khiav. |
FAQ
Cov nqe lus them nqi uas koj txhawb yog dab tsi?
Feem ntau, peb txais T / T, PayPal, Western Union, thiab Alibaba Trade Assurance. Koj tuaj yeem xaiv cov nqe lus them nqi uas yooj yim dua rau koj.
2. Yuav ua li cas txog lub sijhawm ua haujlwm?
Feem ntau, yog tias muaj' s Tshuag, peb xa cov khoom tsis pub dhau 3 ~ 5 hnub ua haujlwm tom qab tso nyiaj tau lees paub. Yog tias nws tawm ntawm Tshuag, lub sijhawm ua haujlwm nyob ntawm.
3. Yuav ua li cas txog shipping?
Thaum lub pob me me, peb ib txwm xaiv FedEx, DHL, TNT, thiab UPS, thiab lwm yam, thaum cov khoom muaj qhov hnyav thiab ntim, peb xav kom siv huab cua los yog hiav txwv xa khoom.
4. Kuv tuaj yeem tso qhov kev txiav txim li cas?
(1) Kev sib tham tau pom zoo raws li tus nqi ntawm cov khoom thiab specifications.(2) Proforma invoice yuav raug xa mus rau kev pom zoo. sai li sai tau qhov kev them nyiaj raug lees paub los ntawm peb lub txhab nyiaj.
5. Koj puas tuaj yeem ua OEM rau peb?
Yog lawm. Yog tias muaj qee qhov kev txiav txim kom muaj nuj nqis, peb tuaj yeem ua OEM suav nrog luam ntawv, logo, thiab cov qauv customized rau koj.6. Yuav ua li cas txog qhov Warranty? Muaj 12 lub hlis rau lub warranty.Thaum lub warranty tsis muaj lub luag haujlwm rau cov tawg los ntawm kev ua phem lossis hloov kho nrog lwm hom.
